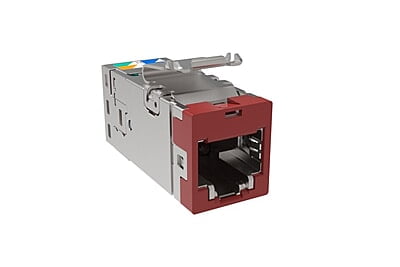

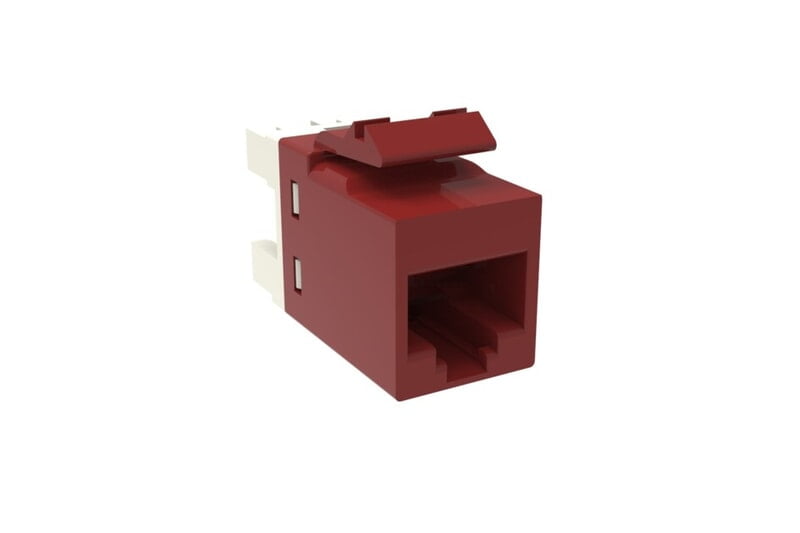

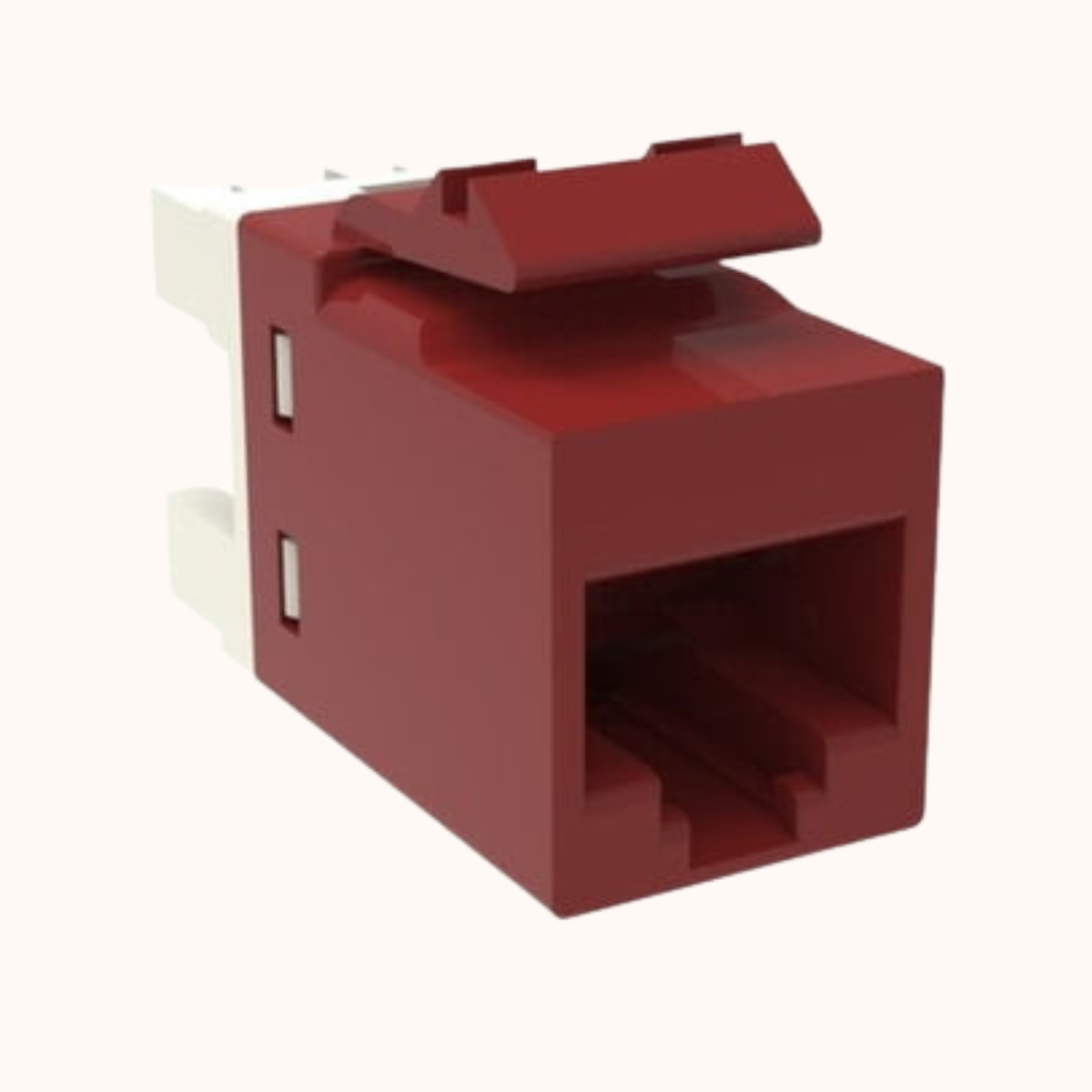

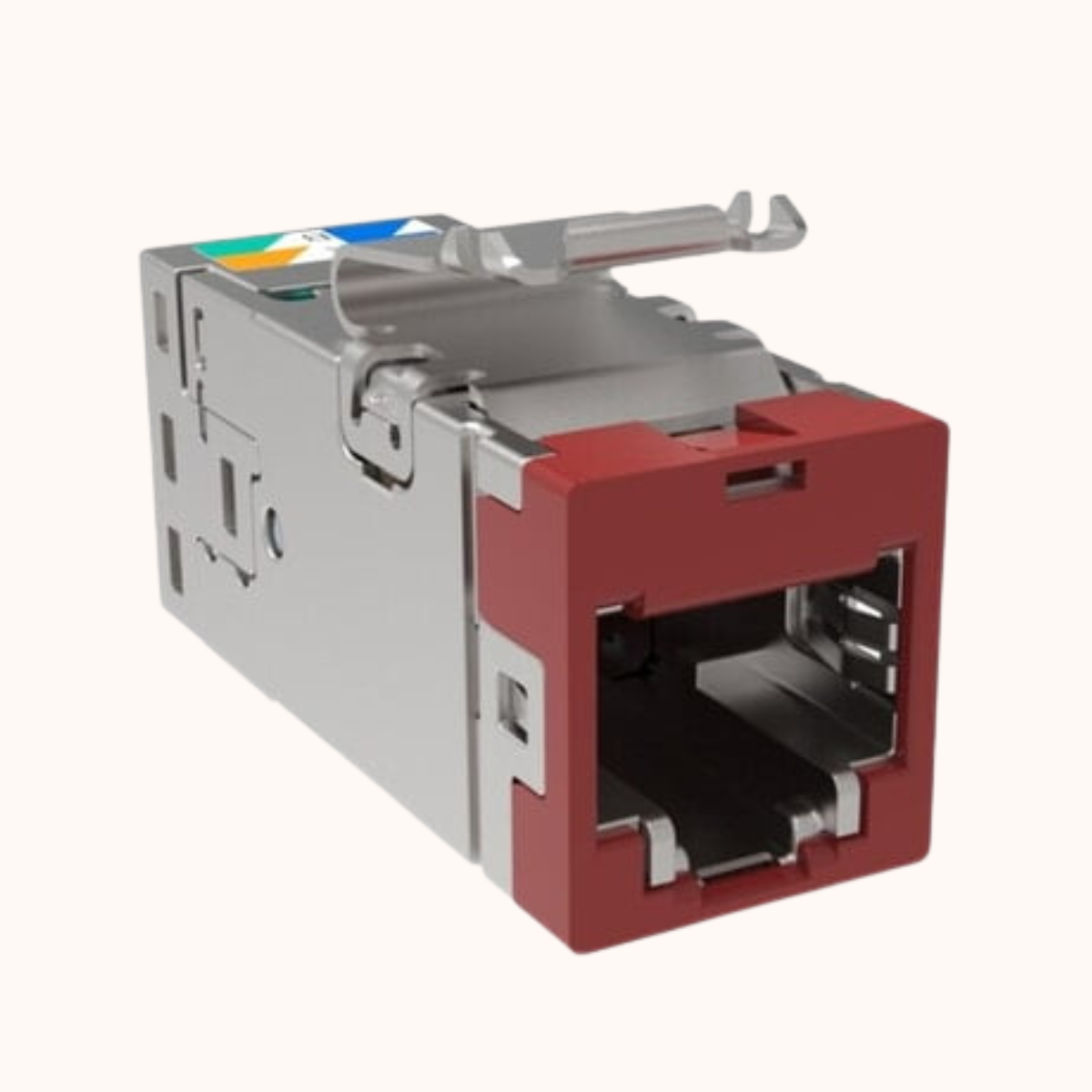

CommScope Cat6A LAN I/O-Red, (2153449-X)
High-Performance Connectivity: Supports up to 10Gbps data transfer speeds, ensuring fast and reliable network connections for high-bandwidth applications.
Cat6A Standard: Compliant with Category 6A standards, offering superior performance with reduced interference and crosstalk over long distances.
Easy Installation: Designed for straightforward installation, ideal for structured cabling systems in data centers, offices, or commercial environments.
Durable and Reliable: Robust, high-quality construction for long-lasting performance, with red color coding for easy identification in network setups.
Feature | Description |
|---|---|
Product Name | CommScope Cat6A LAN I/O-Red (2153449-X) |
Category | Cat6A (Category 6A) |
Color | Red |
Connector Type | LAN I/O (LAN Input/Output) Jack |
Ports | 1 port |
Standards Compliance | - TIA/EIA-568-C.2- ISO/IEC 11801:2011- UL Listed |
Data Transmission Rate | Supports up to 10Gbps (10 Gigabit Ethernet) |
Frequency Range | Up to 500 MHz |
Cable Type Supported | Compatible with Cat6A cables (shielded or unshielded) for high-speed data transmission |
Mounting Type | Standard 19-inch rack mount (also available in surface-mount or keystone mount versions) |
Form Factor | Typically rectangular or modular, designed for easy integration into network installations |
Shielding | Fully shielded, offering high immunity to electromagnetic interference (EMI) and crosstalk |
Insertion Loss | Low insertion loss for optimal performance |
Environmental Features | - RoHS compliant- Designed for harsh environments with robust materials to ensure durability |
Temperature Range | Operating temperature: -10°C to 60°C (14°F to 140°F) |
Applications | - High-performance data transmission- Suitable for data centers, offices, network environments, and industrial applications |
Connector Type | RJ45 (standard for Ethernet networking) |
Cable Compatibility | Compatible with Cat6A U/FTP, S/FTP, U/UTP, and other shielded or unshielded twisted pair cables |
Durability | Built for longevity with tough materials for high-impact and long-term use |
Warranty | Typically comes with a limited warranty |
Package Contents | The package contains one CommScope Cat6A LAN I/O jack (2153449-X) in red |
Installation | Simple and quick installation, often with tool-free design or with tools for secure fixing into network panels or outlets |
Price Range | Affordable for commercial or industrial use, priced based on quantity purchased |
Sustainability | Complies with industry sustainability standards and certifications like RoHS, promoting environmentally responsible manufacturing |
