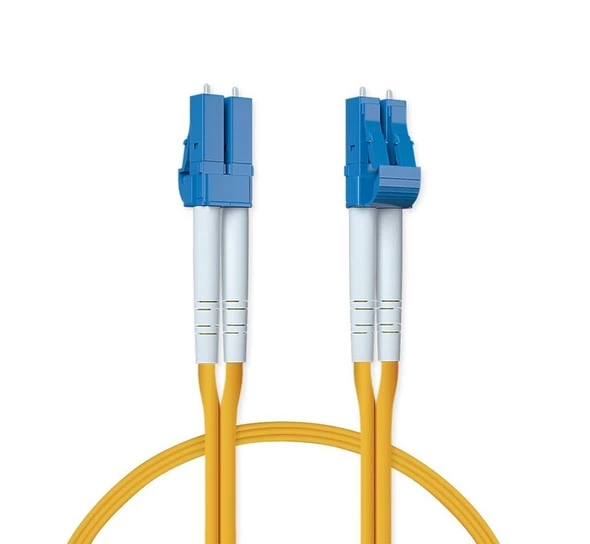

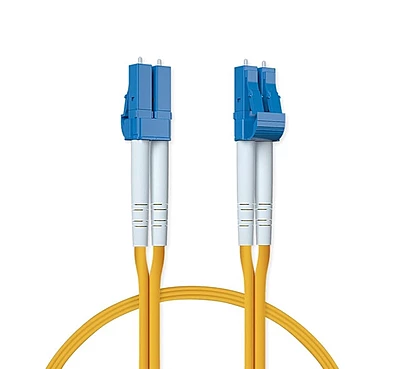

D-Link LC-LC Sm Fiber Patch Cord (NCB-FS10D-LCLC-2)
LC to LC Duplex: Connects two LC fiber optic ports with duplex configuration for bidirectional data transmission
Singlemode (SM) Fiber: Ideal for long-distance, high-speed data transfer with minimal signal loss
2 Meter Length: Suitable for short-range fiber optic connections in various network environments
Durable & Reliable: Designed for stable, long-lasting performance in enterprise, data center, and telecom applications
Feature | Description |
|---|---|
Model | D-Link NCB-FS10D-LCLC-2 |
Type | LC-LC Single-Mode Fiber Patch Cord |
Fiber Type | Single-Mode (SM) Fiber |
Cable Length | 2 meters |
Connector Type | LC to LC Duplex Fiber Optic Connectors |
Core Diameter | 9/125 µm (microns) |
Wavelength | 1310 nm / 1550 nm |
Fiber Mode | Single-Mode (SM) Fiber (ideal for long-distance, high-speed, and high-bandwidth applications) |
Operating Bandwidth | 100 MHz·km at 1310 nm, suitable for high-speed, long-distance data transmission |
Transmission Distance (at 10Gbps) | Up to 40 kilometers |
Jacket Material | LSZH (Low Smoke Zero Halogen) material, enhancing safety by minimizing smoke and toxic fumes in case of fire |
Connector Material | Ceramic Ferrules for low insertion loss and reliable, stable connections |
Applications | - Suitable for long-distance networking, data centers, telecommunications, and high-performance fiber optic networks |
Weight | 0.15 kg (0.33 lbs) |
Dimensions (H x W x D) | Typically 3.0 mm outer diameter cable |
Color | Yellow color to indicate Single-Mode Fiber |
Durability | - Highly durable for long-term, reliable performance in various network environments - Resistant to bending and mechanical stress, designed for demanding applications |
Insertion Loss | Low insertion loss for optimal signal integrity and efficient data transmission |
Flexibility | Flexible for easy installation in tight spaces and complex fiber optic layouts |
Compliance | - RoHS Compliant - CE Certified |
Connector Polarity | Straight-through (LC to LC) for reliable, consistent connectivity |
Warranty | 1-Year Limited Warranty |
Additional Features | - Designed for high-speed, long-distance data transmission in 10GbE, Gigabit Ethernet, and telecommunications networks - Ensures efficient, reliable connectivity over long distances |
