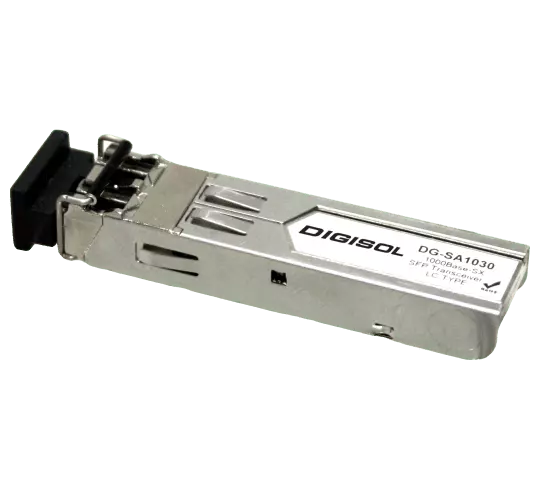

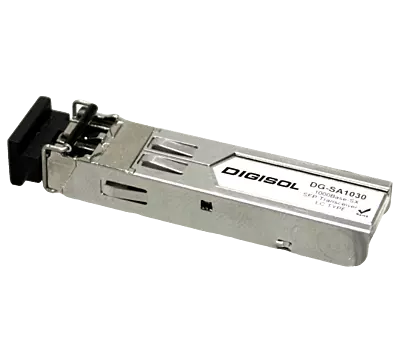

Digisol High Performance SFP Transceivers, DG-SA1030
Out of stock
Rs. 950.00
Rs. 1,199.00
Key Features
- MSA Compliant: Adheres to the SFP Multisource Agreement (MSA) standard.
- Hot-Pluggable: Enables easy installation and replacement without shutting down the system.
- Energy Efficient: Features low power dissipation for optimized performance.
- Reliable Power Supply: Operates on a single 3.3V power source.
Product Details
Specifications
Product Details
Product Details
Technical Specifications
Model: DG-SA1030
- Connector Type: LC
- IEEE Standard: IEEE 802.3z
- Wavelength: 850nm
- Fiber Type: Multi-Mode
- Maximum Cable Distance: 280m – 550m
- Case Operating Temperature: 0°C ~ 70°C
- Storage Relative Humidity: 5% to 95%
Model: DG-SA1133
- Connector Type: LC
- IEEE Standard: IEEE 802.3z
- Wavelength: 1310nm
- Fiber Type: Single-Mode
- Maximum Cable Distance: Up to 10Km
- Case Operating Temperature: 0°C ~ 70°C
- Storage Relative Humidity: 5% to 95%
Model: DG-SA1133-20
- Connector Type: LC
- IEEE Standard: IEEE 802.3z
- Wavelength: 1310nm
- Fiber Type: Single-Mode
- Maximum Cable Distance: Up to 20Km
- Case Operating Temperature: 0°C ~ 70°C
- Storage Relative Humidity: 5% to 95%
Model: DG-SA1134
- Connector Type: LC
- IEEE Standard: IEEE 802.3z
- Wavelength: 1310nm
- Fiber Type: Single-Mode
- Maximum Cable Distance: Up to 40Km
- Case Operating Temperature: 0°C ~ 70°C
- Storage Relative Humidity: 5% to 95%
Model: DG-SA1136
- Connector Type: LC
- IEEE Standard: IEEE 802.3z
- Wavelength: 1550nm
- Fiber Type: Single-Mode
- Maximum Cable Distance: Up to 80Km
- Case Operating Temperature: 0°C ~ 70°C
- Storage Relative Humidity: 5% to 95%
Warranty
- DIGICARE One-Year Warranty
Specifications
Specifications
General
- Interface TypeSFP
- Maximum Data Transfer Rate1.25 Gbps
