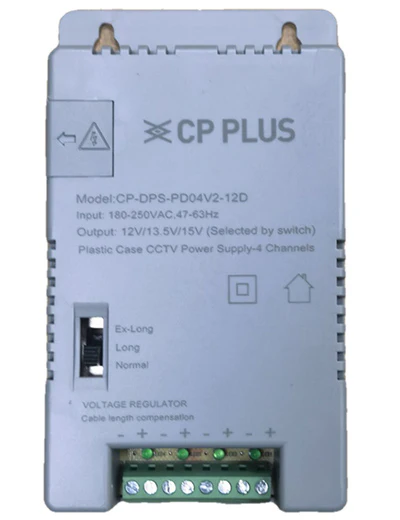

CP Plus Power Supply -12D 12V 5Amp (CP-DPS-PD04V2-12D)
Feature | Specification |
---|---|
Brand | CP Plus |
Model | CP-DPS-PD04V2-12D |
Type | SMPS (Switch Mode Power Supply) |
Specification | Details |
---|---|
Input Voltage | 180–264V AC |
Output Voltage | 12V DC |
Current Range | 0–3A per channel (Total 12V, 3A max) |
Rated Power | 36W |
Ripple & Noise | ≤120mVp-p |
Voltage Adjustment | 11.4V – 12.6V |
Line Regulation | ±1.0% |
Load Regulation | ±5.0% |
Setup Rise Time | 2500ms (full load), 15ms (full load) |
Hold-Up Time | 25ms at full load |
Temperature Coefficient | ±0.03%/°C (0–50°C) |
Frequency Range | 47–63Hz |
Efficiency | 86% |
AC Current | 1A at 220V AC |
Inrush Current | Cold Start: 40A at 220V AC |
Leakage Current | <2mA at 240V AC |
Overload Protection | 110–200% rated output power; shut down output, auto recovery |
Isolation Resistance | I/P–O/P, I/P–FG, O/P–FG: 100MΩ / 500VDC / 25°C / 70% RH |
Working Humidity | 20–90% RH (non-condensing) |
Vibration Resistance | 10–500Hz, 3G for 10 min/cycle, 60 min each axis (X, Y, Z) |
Dimensions (L×W×H) | 144mm × 80mm × 33mm |
Storage Temperature | -20°C to +85°C |
Operating Temperature | -20°C to +45°C |
Withstand Voltage | I/P–O/P: 1.5kVAC; I/P–FG: 1.5kVAC; O/P–FG: 0.5kVAC |
Housing | Plastic (ABS) |
