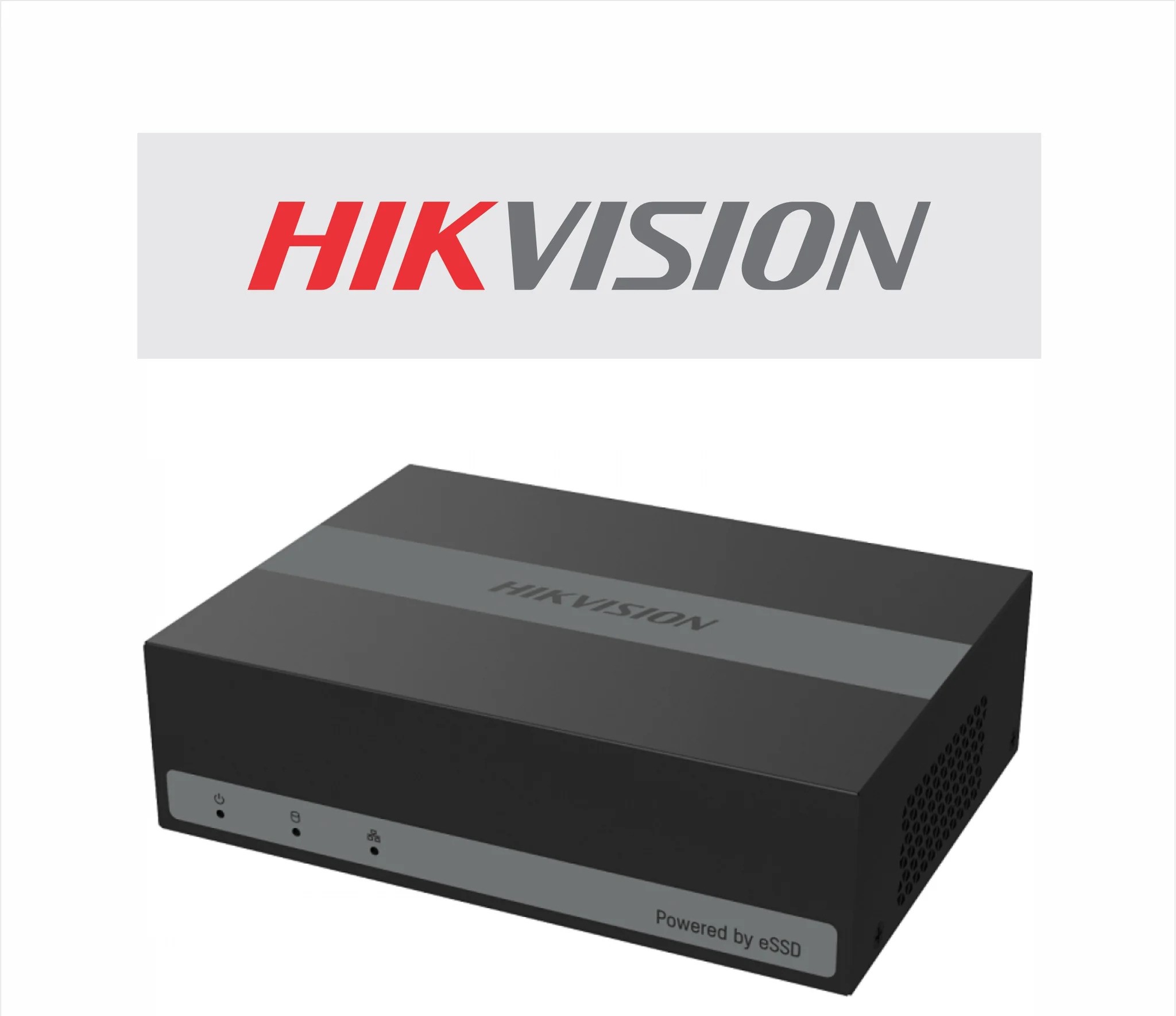

HIKVISION 4-ch embedded 512 SSD DVR DS-E04HQHI-B

Motion Detection 2.0

Deep learning-based human/vehicle analysis, reduces false alarms; object/event search

Video Compression

H.265 Pro / H.265

Encoding Resolution

1080p Lite / 720p / WD1 / 4CIF / CIF

Frame Rate

Main: Up to 30 fps (default 15 fps for 1080p Lite/720p); Sub: 4CIF@15 fps, CIF/QVGA@30 fps

Bitrate Control

Scene-adaptive, automatic bitrate allocation

Stream Type

Video / Video & Audio (audio off by default)

Audio Compression

G.711u

Audio Bitrate

64 Kbps

IP Video Input

1-ch, up to 1080p, supports H.265+/H.265 IP cameras

Analog Video Input

4-ch BNC (Coaxitron supported)

Supported Analog Formats

HDTVI, AHD, HDCVI, CVBS (1080p/720p at 25/30 fps)

HDMI Output

1-ch, resolutions up to 1920 × 1080 @ 60Hz

VGA Output

1-ch, resolutions up to 1920 × 1080 @ 60Hz

Video Output Mode

HDMI / VGA simultaneous

Audio Input

4-ch via coaxial cable

Audio Output

1-ch via HDMI

Synchronous Playback

4-ch

Total Network Bandwidth

64 Mbps (Incoming: 4 Mbps)

Remote Connection

Supports up to 32 connections

Network Protocols

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS

Network Interface

1 × RJ45 10/100 Mbps Ethernet port
