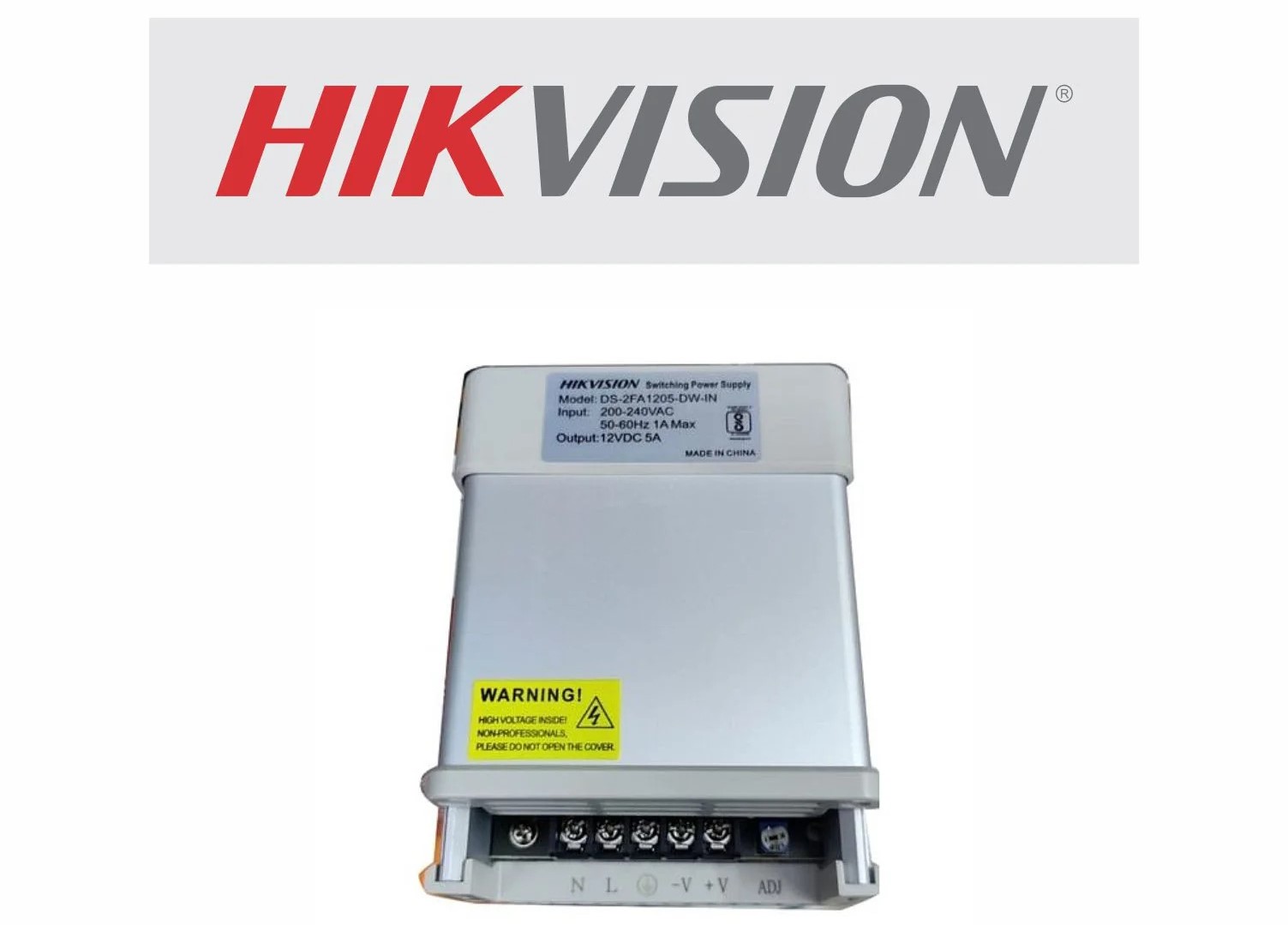

HIKVISION Digital Systems CCTV Power Supply (DS-2FA120K-DW-IN)
Rs.1,490.00 Rs.1,831.00
Tags:
Feature | Specification |
|---|---|
Brand | Hikvision |
Model | DS-2FA120K-DW-IN |
Type | SMPS (Switch Mode Power Supply) |
Input Voltage | 200–240 VAC, 50/60 Hz, 3.5A Max |
Choose Quantity
Product Details
Specifications
Attribute | Details |
|---|---|
Output Voltage | 12 VDC |
Output Current | 20 Amps (Total) |
Output Channels | 16 (Common output for all channels) |
Housing | Metal |
Cooling Mechanism | Inbuilt cooling fan for heat dissipation |
Mounting Options | Wall mountable or desktop installation |
Safety Features | Surge protection, over-temperature, over-current, over-voltage, overload protection |
Ripple Voltage | <5% (mV P-P) |
Operating Temperature | 10°C to 40°C |
Storage Temperature | -40°C to 70°C |
Operating Humidity | 40% to 90% (non-condensing) |
Storage Humidity | 10% to 93% (non-condensing) |
Certifications | BIS Approved |
Terminal Type | Screw-type block terminals for easy installation |
General
- Wattage240 Watt
- ModularNo
