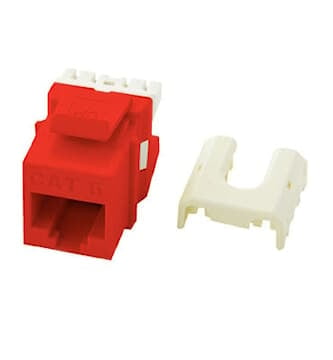

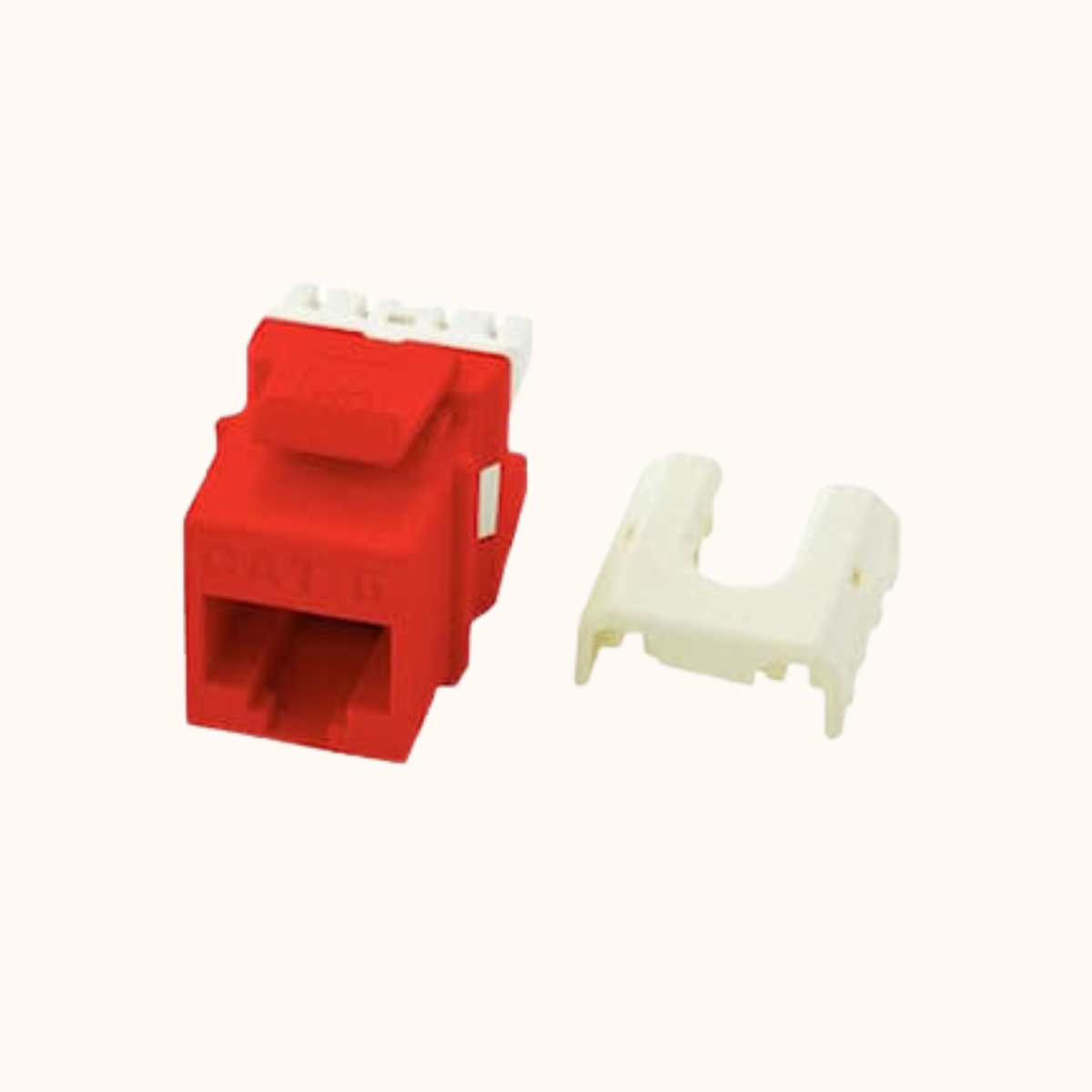

Commscope Cat6 LAN I/O-Red, (1375055-x)
Specification | Details |
|---|
Product Name | CommScope Cat6 LAN I/O (Information Outlet) – Red (1375055‑RD) |
Brand | CommScope |
Model Number | 1375055‑RD (also known as SL110‑6‑RD) |
Category Standard | ANSI/TIA‑568.2‑D Category 6 / ISO/IEC 11801 Class E |
Cable Compatibility | Unshielded Twisted Pair (UTP) for Cat6 applications |
Color | Red (easy ID in structured cabling systems) |
Connector Type | RJ45 keystone jack (inverted face), IDC termination |
Termination Method | IDC punch-down, ≥200 termination cycles, T568A/B wiring |
Mounting Style | SL-Series faceplates and panels; snap-in keystone compatible |
Electrical Rating | • Contact resistance ≤100 mΩ (.Var ≤20 mΩ) • Current rating: 1.5 A @20 °C • Dielectric ≤1,500 VAC |
PoE Support | Supports IEEE 802.3bt Type 4 (up to 90 W), ≥3,000 mating cycles under load |
Contact Material | Beryllium copper base with gold-plated contacts (~1.27 µm plating) |
Housing Material | Polycarbonate (PC/ABS), UL94 V‑0 rated, flame retardant |
Mechanical Durability | • Plug retention ≥50 N • ≥3,000 plug/unplug cycles (IEC 60603‑7) |
Operating Environment | –10 °C to +60 °C; storage –40 °C to +70 °C; UL/cUL safety rated |
Dimensions | Height 16.13 mm; Width 14.48 mm; Depth 30.48 mm; Panel cutout ≈14.78 × 20.07 mm |
Cable Compatibility (diameter) | Up to 5.8 mm overall; insulated conductor ≤1.45 mm; solid 22–24 AWG, stranded 24–26 AWG |
