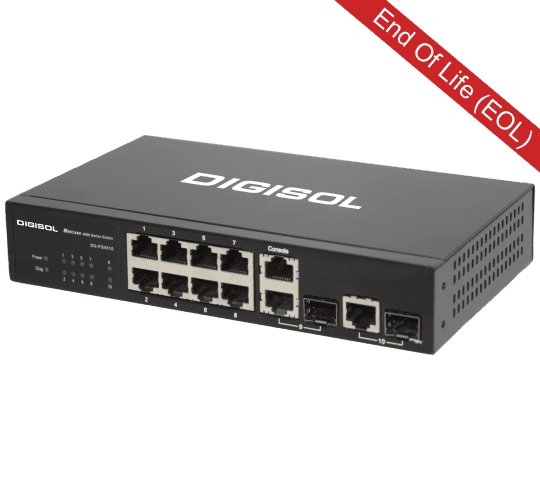

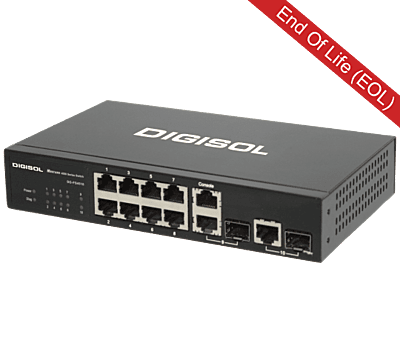

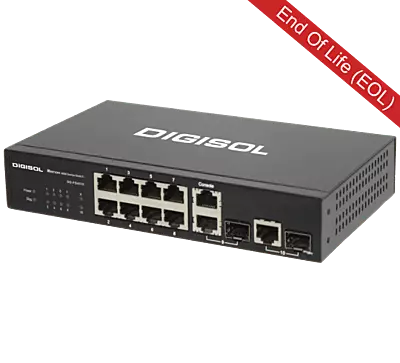

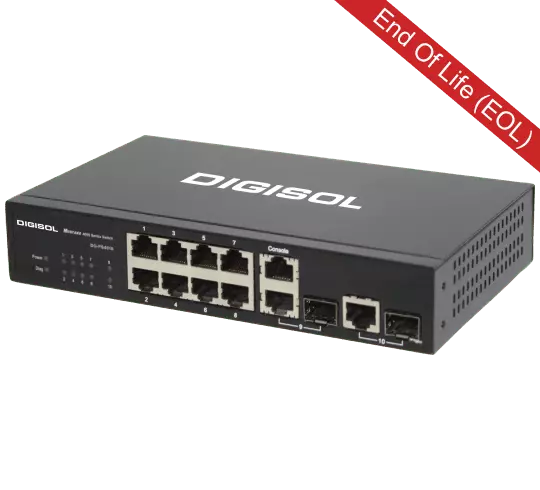

Digisol 8 Port Fast Ethernet 2 Managed switch with 2 Gigabit Combo Ports (RJ45/SFP)-DG-FS4510

Technical Specifications

Physical Ports

• Ethernet Ports: 8 × 10/100Base-T

• Combo Ports: 2 × RJ45/SFP

• Fiber Support: 1000Base-FX

• Console Port: RS-232 (RJ45)

Performance

• Switching Capacity: 5.6 Gbps

• Forwarding Rate: 3.97 Mpps

• MAC Address Table: 8K

• VLAN Support: 4K VLAN entries

• Priority Queues: 4 hardware queues per port

• Multicast Forwarding Table: 255 entries

• Jumbo Frame Support: Up to 10,240 bytes

• MSTP Instances: 32

• ACL Rules: 320

Layer 2 Features

• Auto-Negotiation: Supports port speed and duplex mode detection

• Flow Control: IEEE 802.3x

• Spanning Tree Protocols:

  • IEEE 802.1D (STP)

  • IEEE 802.1w (RSTP)

  • IEEE 802.1s (MSTP)

  • Auto-edge/STP Fast Forwarding

  • Root Guard, BPDU Guard & BPDU Filter

  • Loopback Detection (Auto/Manual Release)

• VLAN Features:

  • Port-Based, MAC-Based, Protocol-Based, and IP Subnet VLANs

  • GVRP, VLAN Trunking, QinQ, Traffic Segmentation

• Link Aggregation:

  • Static & IEEE 802.3ad LACP (Supports 5 trunk groups)

• Multicast Features:

  • IGMP Snooping v1/v2/v3, IGMP Query, IGMP Filtering/Throttling

  • MVR (Multicast VLAN Registration)

• Port Mirroring: Up to 10 sessions (Port, VLAN, MAC-based, RSPAN)

• Advanced Features:

  • Ethernet Ring Protection Switching

  • Connectivity Fault Management (CFM)

  • OAM Support

Quality of Service (QoS)

• Traffic Classification Based on:

  • IEEE 802.1p CoS, DSCP, TCP/UDP Port Number, ACL

• Enhanced QoS: Traffic Shaping, Marking, and DiffServ Support

• Queue Mechanisms: WRR, Strict Priority, Hybrid

• Rate Limiting:

  • Port-based ingress/egress rate limiting (64Kbps granularity)

  • Flow-based rate limit

• Voice VLAN Support

Security Features

• Access Control:

  • 802.1x Authentication (Port & User-Based)

  • MAC Authentication (Up to 1024 MACs per port)

  • Web Authentication & Guest VLAN

• Port Security & ACL-Based Security:

  • Rules for IPv4, IPv6, ARP, MAC, Time-Based ACLs

• AAA Authentication:

  • RADIUS (Up to 5 servers), TACACS+ Support

• Storm Control: Unknown Unicast, Multicast, and Broadcast (64Kbps steps)

• DHCP Security: Snooping, Option 82, IP Source Guard

• DoS Protection: Prevents attacks such as Smurf, TCP Flooding, and UDP Flooding

• Secure Remote Access: SSH 2.0, IP Filtering for Web, SNMP, and Telnet

IPv6 Features

• Dual Stack Support: IPv4/IPv6

• Address Configuration: Link-Local, Global, EUI-64

• IPv6 Network Services: Neighbor Discovery, MTU Discovery, IPv6 ACLs

• IPv6 Security: Support for IPv6-based Access Control

Management & Monitoring

• User Interface & Access:

  • CLI via Console/Telnet, Web Management, SNMP v1/v2c/v3

• Firmware & Configuration Management:

  • Supports upgrades via TFTP/FTP/Xmodem/HTTP

  • Multiple Configuration Files & Auto Firmware Upgrade

• Network Monitoring:

  • RMON (Groups 1, 2, 3, 9), Syslog (Up to 5 servers), SNTP/NTP

  • CPU & Memory Utilization Monitoring, Port Statistics, and Graphical Displays

• Diagnostics & Troubleshooting:

  • Cable Testing, Remote Ping (IPv4 & IPv6), Traceroute

• Energy Efficiency:

  • Green Ethernet & IP Clustering (Supports 36 units per cluster)

Mechanical & Environmental

• Dimensions: 195 mm × 115 mm × 36 mm

• Weight: 0.72 kg (1.59 lbs)

• LED Indicators: Power, Diagnostic (DIAG), Link, Speed, and Activity

• Power Input: 100-240V AC, 50-60Hz, 0.2A

• Power Consumption: Maximum 32W

• Operating Temperature: 0°C to 45°C (32°F to 113°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Humidity: 10% to 90% (Non-Condensing)

Warranty

• DIGICARE Lifetime Warranty
