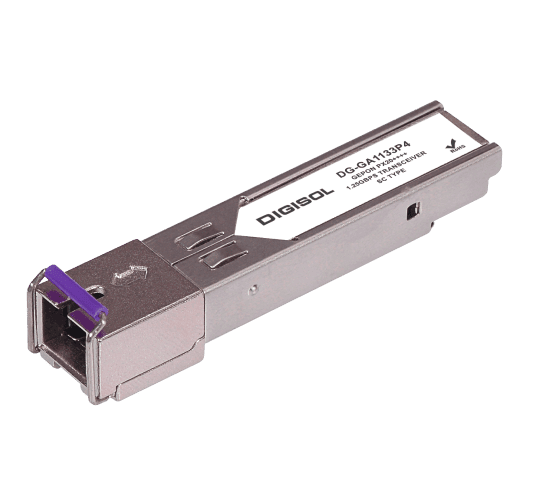

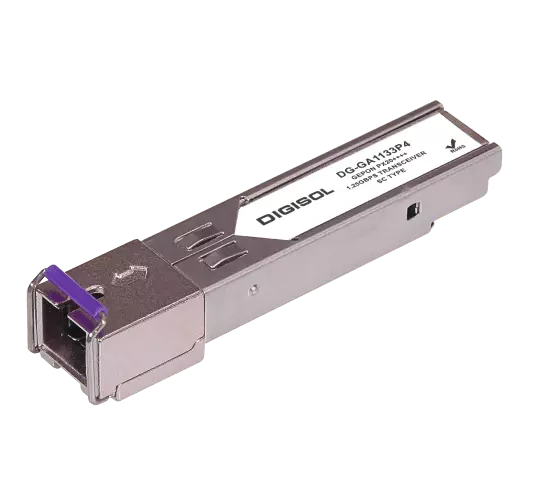

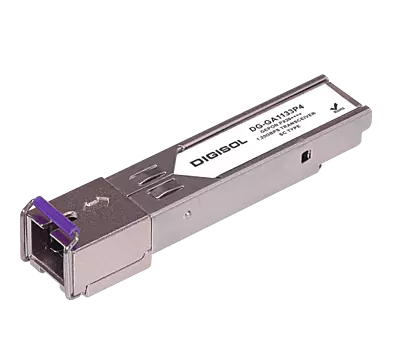

Digisol High Performance EPON SFP Transceivers DG-GA1133P4
Key Features | Description |
|---|---|
Single 3.3V Power Supply | Operates using a single low-voltage power source |
Power Output: +9dBm to +13dBm | Provides strong optical signal output within specified range |
1490nm Continuous-mode DFB Laser Transmitter and 1310nm Burst-mode APD-TIA Receiver | Uses dual-wavelength components for transmit and receive functions |
Single Fiber Bi-directional Data Links (Symmetric 1.25Gbps Application) | Enables simultaneous transmission and reception over one fiber at 1.25Gbps |
Technical Specifications | Description |
|---|---|
Bi-directional Transmission | Symmetric 1.25 Gbps upstream/downstream |
Transmitter/Receiver | 1490nm DFB laser (continuous-mode) & 1310nm APD-TIA (burst-mode) receiver |
Form Factor | SFP Package with SC Receptacle |
Power Supply | +3.3V single power supply |
Operating Case Temperature | Standard: 0°C to +70°C |
EMI/EMC Characteristics | Excellent Electromagnetic Interference and Compatibility |
Digital Diagnostics | Compliant with SFF-8472 standard |
Environmental Compliance | Compliant with RoHS 2.0 |
Power Output | +9 to +13 dBm |
Receiver Sensitivity | ≤ -33 dBm |
Index Level | Px20++++ |
Warranty | Details |
|---|---|
DIGICARE Warranty | One Year |
General
- Interface TypeSFP
- Maximum Data Transfer Rate1.25 Gbps
