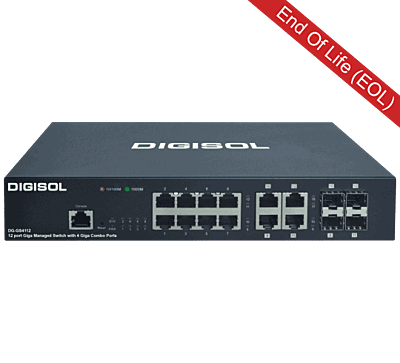

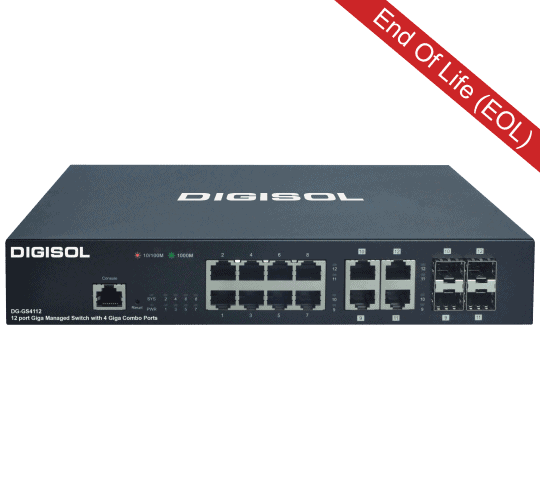

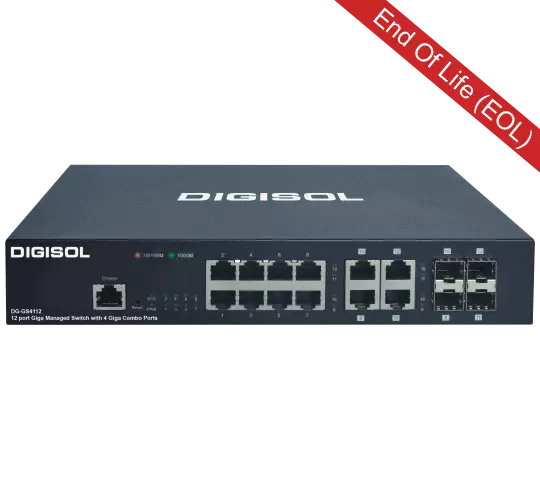

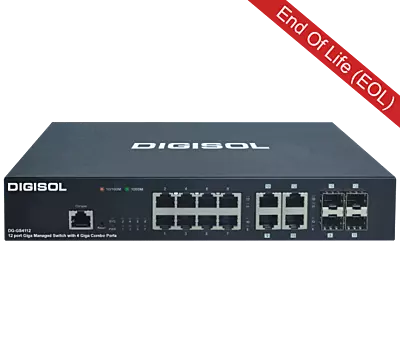

Digisol 8 Port Gigabit Ethernet Smart Managed Switch with 4 Combo Ports, DG-GS4112

Technical Specifications

Physical Ports

• 8× 10/100/1000Base-T PoE Ethernet Ports

• 4× Gigabit Combo Ports (RJ-45/SFP) for flexible connectivity

• RJ-45 Console Port for management

• Reset Button for restoring default settings and restarting the system

Performance

• Switching Capacity: 24Gbps

• MAC Address Table: 8K

• Packet Buffer Size: 4.1MB

• Jumbo Frame Support: Up to 10K

Layer 2 (L2) Features

• Auto-Negotiation for port speed and duplex mode

• Spanning Tree Protocol (STP/RSTP/MSTP) with support for up to 16 instances

  • Loopback Detection

  • BPDU Filter & BPDU Guard

• Link Layer Discovery Protocol (LLDP, LLDP-MED)

• IGMP Snooping (v1/v2) with IGMP Querier and Immediate Leave

• MLD Snooping & Multicast VLAN Registration (MVR)

• Multicast Management: Router Port, Forward Port, Throttling, Filtering

• VLAN Support:

  • 256 VLANs with 4K VLAN ID

  • MAC-Based VLAN, Voice VLAN, Guest VLAN, Protocol VLAN, Surveillance VLAN, Management VLAN, GVRP

• Link Aggregation:

  • LACP: 8 Groups, 8 Ports per Group

  • Static Trunking

Quality of Service (QoS)

• Queueing Mechanism: SP & WRR

• Traffic Classification Based On:

  • COS, COS DSCP, IP Precedence

• 8 Queues per Port

• Rate Limiting:

  • Ingress/Egress Port & Egress Queue-Based Flow Control

Security Features

• MAC Address Binding

• Broadcast Storm Control

• Access Control Lists (ACL): IP & MAC-based (IPv4/IPv6)

• Authentication & Access Management:

  • RADIUS, TACACS+, AAA

  • 802.1x, Web & MAC-Based Authentication

• Port Security & Protected Port

• DoS Protection & Dynamic ARP Inspection

• DHCP Security: DHCP Snooping (Option 82), IP Source Guard, IP-MAC-Port-VLAN Binding

• Management ACL

Management & Monitoring

• Port Mirroring for traffic analysis

• IPv4 Web-Based Management

• IPv4 DHCP Client

• Configuration Backup & Recovery

• Dual Firmware Images & Multiple Configuration Files

• Traffic Statistics & Bandwidth Utilization Monitoring

• Network Management Protocols:

  • SNMP v1/v2c/v3, RMON, SNTP

  • Console, Telnet, SSH, HTTP, HTTPS

  • Remote Server Support

• Troubleshooting Tools:

  • Ping, Traceroute, UDLD, Copper Test, DDM

• Logging & Port Statistics Monitoring

Power Supply

• AC Input: 100-240V, 50-60Hz

• Built-in Surge Protection

Standards Compliance

• IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3az (EEE)

Environmental Specifications

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% RH (Non-condensing)

• Storage Humidity: 5% to 90% RH (Non-condensing)

Mechanical & Design

• Dimensions (W×D×H): 265mm × 183mm × 44mm

• LED Indicators: Power, Link/Act

• Hardware Factory Reset Button

Warranty

• DIGICARE Lifetime Warranty
