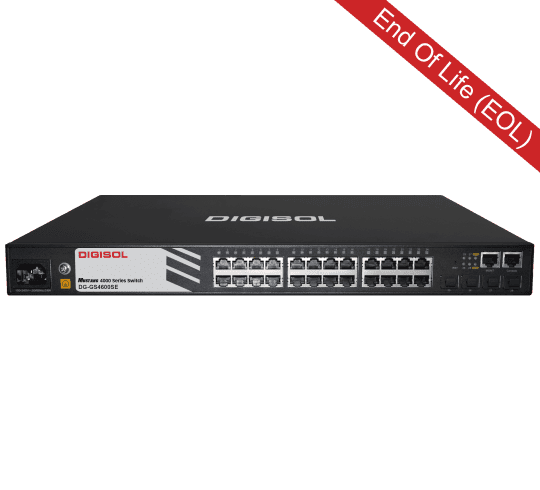

DIGISOL L2 Gigabit Dual Stack Intelligent Switches, DG-GS4600E

Technical Specifications

Hardware Features

• Ports:

  • DG-GS4652E: 48 × 10/100/1000Base-T
  • DG-GS4628E: 24 × 10/100/1000Base-T
  • DG-GS4610E: 8 × 10/100/1000Base-T
  • DG-GS4628HPE: 24 × 10/100/1000Base-T (PoE)
  • DG-GS4610HPE: 8 × 10/100/1000Base-T (PoE)

• Switching Capacity:

  • DG-GS4652E: 104 Gbps
  • DG-GS4628E: 56 Gbps
  • DG-GS4610E: 20 Gbps
  • DG-GS4628HPE: 56 Gbps
  • DG-GS4610HPE: 20 Gbps

• Forwarding Rate:

  • DG-GS4652E: 77.4 Mpps
  • DG-GS4628E: 41.7 Mpps
  • DG-GS4610E: 14.88 Mpps
  • DG-GS4628HPE: 41.7 Mpps
  • DG-GS4610HPE: 14.88 Mpps

• MAC Address Table:

  • DG-GS4652E / DG-GS4628E / DG-GS4628HPE: 16K
  • DG-GS4610E / DG-GS4610HPE: 8K

• Jumbo Frame Support:

  • 9K

• VLAN Table:

  • DG-GS4652E / DG-GS4628E / DG-GS4628HPE: 4K
  • DG-GS4610E / DG-GS4610HPE: 1.5K + 256

• ACL Table:

  • DG-GS4652E / DG-GS4628E / DG-GS4628HPE: 2K + 256
  • DG-GS4610E / DG-GS4610HPE: 1.5K + 256

• Queues per Port: 8

• Physical Dimensions (W × H × D):

  • DG-GS4652E: 442 × 220 × 43.6 mm
  • DG-GS4628E: 442 × 220 × 43.6 mm
  • DG-GS4610E: 250 × 180 × 43.6 mm
  • DG-GS4628HPE: 442 × 220 × 43.6 mm
  • DG-GS4610HPE: 330 × 220 × 43.6 mm

• Power Input: 100240V AC, 5060Hz

Environmental Specifications

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Relative Humidity: 5% to 95% (non-condensing)

Power over Ethernet (PoE) Features

• DG-GS4628HPE:

  • Supports IEEE 802.3af PoE (15.4W) & IEEE 802.3at PoE+ (30W)
  • PoE Budget: 185W

• DG-GS4610HPE:

  • Supports IEEE 802.3af PoE (15.4W) & IEEE 802.3at PoE+ (30W)
  • PoE Budget: 124W

Main Features

Layer 2 Switching

• Storage & Forwarding Switching
• VLAN Support:
  • Port-based VLAN, IEEE 802.1Q, Private VLAN
  • Protocol VLAN, Voice VLAN, MAC VLAN
  • Q-in-Q, Selective Q-in-Q, Flexible Q-in-Q
  • VLAN Translation & N:1 VLAN Translation

DHCP Services

• IPv4/IPv6 DHCP Client
• IPv4/IPv6 DHCP Relay (Option 82, Option 37/38)
• IPv4/IPv6 DHCP Snooping
• IPv4/IPv6 DHCP Server

Network Reliability

• Spanning Tree Protocol (STP):

  • IEEE 802.1D, 802.1w (Rapid STP), 802.1s (Multiple STP)
  • Root Guard, BPDU Guard, BPDU Forwarding

• Link Aggregation Control Protocol (LACP):

  • DG-GS4652E: 16 groups / 8 ports
  • DG-GS4628E: 16 groups / 8 ports
  • DG-GS4628HPE: 16 groups / 8 ports
  • DG-GS4610E: 16 groups / 8 ports
  • DG-GS4610HPE: 8 groups / 8 ports

• Ethernet Ring Protection Switching (ERPS):

  • Supports MRPP & ITU-T G.8032
  • Fast Link with Loopback Detection

Security Features

• Access Control Lists (ACL):

  • IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL
  • Time Range ACL
  • ACL on VLAN Interface

• Threat Prevention:

  • Storm Control (packet & byte-based)
  • Port Security & MAC Limit (per VLAN/port)
  • Anti-ARP Spoofing, Anti-ARP Scan, ARP Binding
  • ND Snooping & Dynamic ARP Inspection (DAI)

• Authentication & Access Control:

  • IEEE 802.1x (Authentication, Authorization, Accounting)
  • RADIUS & TACACS+ Support

Multicast Features

• IGMP Snooping (V1, V2, V3)
• IGMP Fast Leave
• MLD (V1, V2) Snooping
• Multicast VLAN Registration (MVR)

Quality of Service (QoS)

• 8 Queues per Port

• Traffic Management & Bandwidth Control

• Flow Redirect & Classification Based On:

  • ACL, VLAN ID, COS, TOS, DSCP
  • Policy-Based on Port & VLAN
  • DSCP, COS/802.1p, Precedence, TOS remarking

• Scheduling Algorithms:

  • Strict Priority (SP), Weighted Deficit Round Robin (WDRR), Shared WDRR

Network Management & Maintenance

• Management Interfaces:

  • TFTP/FTP, CLI, Telnet, Console, Web/SSL (IPv4/IPv6), SSH (IPv4/IPv6)
  • SNMP v1/v2c/v3, SNMP Trap

• Monitoring & Diagnostics:

  • Public & Private MIB Interface
  • RMON (1,2,3,9)
  • Ping & Trace Route
  • Syslog (IPv4/IPv6)
  • SNTP/NTP (IPv4/IPv6)

• Advanced Network Functions:

  • Port Mirroring, CPU Mirroring
  • RSPAN, ERSPAN, sFlow, OAM
  • LLDP/LLDP-MED, ULDP (similar to Cisco UDLD)

Energy Efficiency

• IEEE 802.3az (Energy-Efficient Ethernet)
• Fanless & Smart Fan Design
• LED Shut-Off for Reduced Power Consumption
