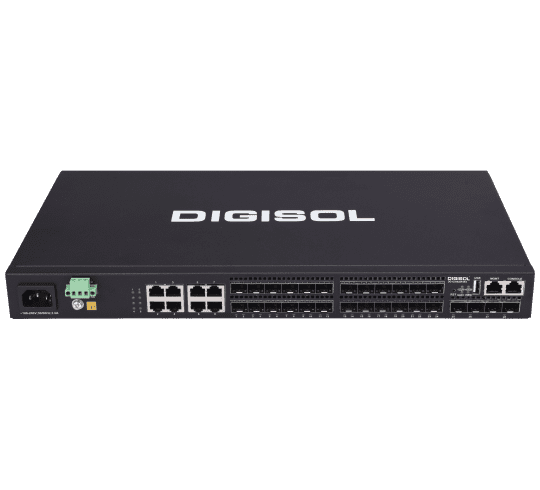

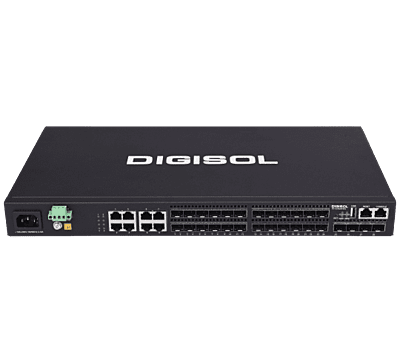

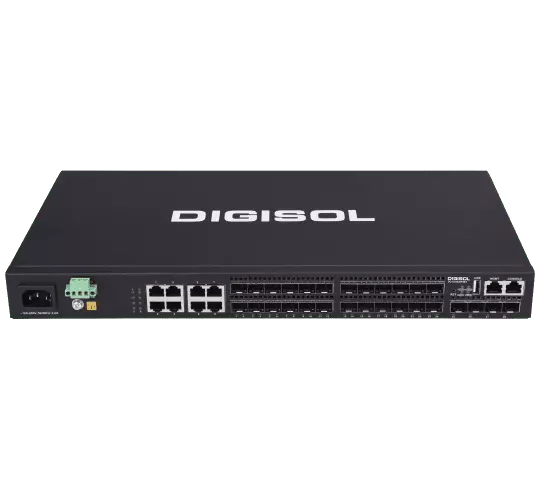

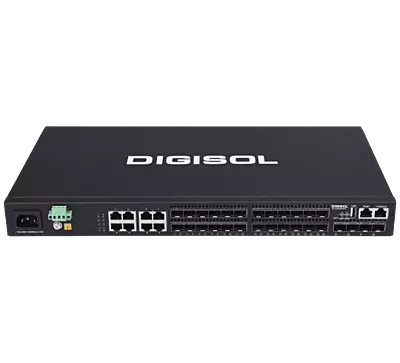

DIGISOL Dual Stack 10G Ethernet Routing Fiber Switch, DG-GS4600FSE

DIGISOL 10G Ethernet Routing Switch Series

Hardware Features

• Model: DG-GS4616FSE
• Switching Capacity: 112Gbps
• Throughput: 83Mpps
• MAC Address Table: 16K
• Jumbo Frame: 10K
• ARP Table: 4K
• Routing Table: 1K
• Dimensions (WxHxD): 330 x 44 x 230 mm
• Power Consumption: <22W
• Management Ports:
  • 1 x RJ45 Ethernet Management Port
  • 1 x Console Port
  • 1 x USB 2.0 Interface

DG-GS4628FSE2 Model:

• Physical Ports:
  • 16 x 100/1000Base-X
  • 8 x GE Combo
  • 4 x 10GbE
• Switching Capacity: 128Gbps
• Throughput: 95Mpps
• MAC Address Table: 16K
• Jumbo Frame: 10K
• ARP Table: 4K
• Routing Table: 1K
• Dimensions (WxHxD): 440 x 44 x 240 mm
• Power Consumption: <34W

Technical Specifications

Layer 1 & Layer 2 Features

• IEEE802.3 Standards:
  • 10Base-T, 100Base-TX, 1000BASE-X, 1000Base-T, 10GBase
• Port Features:
  • Loopback Detection, LLDP, LLDP-MED, UDLD
  • LACP (802.3ad) with max 128 groups, 8 ports per trunk
  • Port Mirroring (N:1), RSPAN, ERSPAN
• VLAN Support:
  • IEEE 802.1Q, 4K VLANs
  • MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN
  • QinQ, Selective QinQ, Flexible QinQ, GVRP, VLAN Translation
• Spanning Tree Protocols:
  • STP (802.1d), RSTP (802.1w), MSTP (802.1s)
  • Root Guard, BPDU Guard, BPDU Tunnel
• Traffic & Security Controls:
  • IGMP Snooping (v1/v2/v3), MLD Snooping (v1/v2)
  • ND Snooping, Flow Control, Bandwidth Control
  • Port Security, Storm Control (Broadcast/Multicast/Unicast)

Layer 3 Features

• Routing Protocols:
  • Static Routing, RIPv1/v2, OSPFv2, BGP4, OSPFv3, BGP4+
  • LPM Routing, Policy-Based Routing (PBR) for IPv4/IPv6
  • VRRP, URPF, ECMP, BFD
• Multicast Support:
  • IGMP v1/v2/v3, IGMP Proxy, Static Multicast Routing
  • Multicast Receive Control, Illegal Multicast Source Detection
• ARP & Security Enhancements:
  • ARP Guard, Local ARP Proxy, Proxy ARP, Gratuitous ARP
  • Anti ARP/NDP Cheat, Anti ARP/NDP Scan
  • DNS Client, DNS Relay, GRE Tunnel

IPv6 Capabilities

• 6to4 Tunnel, ISATAP Tunnel, Configured Tunnel, GRE Tunnel
• ICMPv6, ND, DNSv6
• IPv6 LPM Routing, IPv6 PBR, IPv6 VRRPv3, IPv6 URPF, IPv6 RA
• RIPng, OSPFv3, BGP4+
• MLD Snooping, IPv6 Multicast VLAN, MLDv1/v2
• IPv6 ACL, IPv6 QoS

Quality of Service (QoS)

• Traffic Management:
  • 8 Queues, SP, DWRR, SWDRR
  • Traffic Classification (802.1p COS, ToS, DiffServ DSCP, ACL)
  • Traffic Policing, Priority Marking/Remarking
• Access Control Lists (ACLs):
  • IP ACL, MAC ACL, IP-MAC ACL
  • Standard & Extended ACLs based on Source/Destination IP, MAC, VLAN, CoS
  • Time-Based ACLs, VLAN Routing Interfaces

Security Features

• IEEE 802.1X Authentication (Port & MAC-Based)
• RADIUS & TACACS+ Authentication for IPv4/IPv6
• DHCP Snooping, Option 82, Dynamic ARP Inspection
• Secure Shell (SSH) for Encrypted Management
• Guest VLAN & Auto VLAN Support

Network Management

• CLI, Web, Telnet, SNMP v1/v2c/v3 via IPv4 & IPv6
• Syslog & External Syslog Server, SNMP MIB & Traps
• HTTPS SSL, FTP/TFTP, SNTP/NTP
• RMON 1,2,3,9 for Network Monitoring
• Dual Firmware Image/Configuration Files

Data Center Features

• Virtual Switching Framework (VSF) – Future Upgrade

---

Power & Environmental Specifications

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Humidity: 10% - 90% (non-condensing), Storage 95%
• Power Supply:
  • AC: 100~240V, 50/60Hz
  • 12V DC Redundant Power Supply (RPS)

---

Key Benefits

Enhanced Security

• IEEE 802.1X Access Control: Ensures only authorized users can access the network.
• Time-Based ACLs: Restrict access based on predefined schedules.
• RADIUS Authentication: Enables centralized user authentication and management.

Comprehensive IPv6 Support

• Full IPv6 switching and routing support for future-proof networking.
• Enhanced security and scalability to meet modern network demands.

Energy-Efficient Design

• Smart Temperature Control: Adjusts fan speed dynamically for energy savings.
• Automatic Cooling: Reduces power consumption and minimizes noise.
