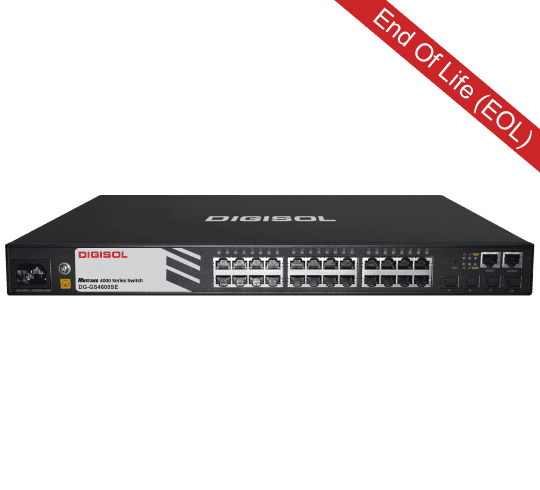

Digisol 24 / 48 Port Gigabit Ethernet Access Layer 3 Switch with 4 10 Gigabit SFP+ Uplink Ports, DG-GS4600SE

Hardware Features

Models & Specifications:

Model	DG-GS4628SE	DG-GS4652SE	DG-GS4628HPSE	DG-GS4652HPSE
10/100/1000Mbps Ports	24	48	24	48
Switching Capacity	128 Gbps	176 Gbps	128 Gbps	176 Gbps
Max. Packet Forwarding Rate	96 Mpps	132 Mpps	96 Mpps	105 Mpps
MAC Address Table	16K	16K	16K	16K
Jumbo Frame Support	9K	9K	9K	9K
VLAN Table	4K	4K	4K	4K
ACL Table	1K	1K	1K	1K
QoS Hardware Queues	8	8	8	8
Operating Temperature	0°C to 50°C	0°C to 50°C	0°C to 50°C	0°C to 50°C
Storage Temperature	-40°C to 70°C	-40°C to 70°C	-40°C to 70°C	-40°C to 70°C
Relative Humidity (Non-Condensing)	5% to 95%	5% to 95%	5% to 95%	5% to 95%
Dimensions (W × H × D) mm	443 × 44 × 230	443 × 44 × 280	442 × 43.6 × 280	442 × 43.6 × 330
Power Consumption	20 W	37 W	467 W	897 W
PoE Support	NA	NA	IEEE 802.3af (15.4 W), IEEE 802.3at (30 W), Total PoE Power: 370 W	IEEE 802.3af (15.4 W), IEEE 802.3at (30 W), Total PoE Power: 740 W

---

Main Features

Network Performance & Reliability:

• Storage & Forwarding Switching Architecture for enhanced data transmission.
• VLAN Support:
  • Port-based VLAN, IEEE 802.1Q, Private VLAN, Protocol VLAN, Voice VLAN, MAC-based VLAN.
  • Q-in-Q, Selective QinQ, Flexible QinQ, VLAN Translation, N:1 VLAN Translation.
• Dynamic Host Configuration Protocol (DHCP) Support:
  • IPv4/IPv6 DHCP Client, DHCP Relay (Option 82, Option 37/38), DHCP Snooping, DHCP Server.
• IP Routing & Static Routing: Supports RIP v1/v2.
• Spanning Tree Protocols:
  • IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), BPDU Guard, Root Guard, BPDU Forwarding, Multi-process MSTP.
• Link Aggregation (LACP):
  • 802.3ad Link Aggregation (128 Trunk Groups, 8 Ports per Group), Load Balancing.
• L2 Ring Protection:
  • MRPP, Fast Link, Loopback Detection.
• Multi-Link Backup & Load Balancing: Ensures redundancy and performance optimization.

---

Security Features:

• Access Control Lists (ACLs):
  • IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL, Time-Based ACL, VLAN Interface ACL.
• Traffic Protection:
  • Storm Control (Packet & Byte-Based), Port Security, MAC Limit Based on VLAN & Port.
• ARP Protection:
  • Anti-ARP Spoofing, Anti-ARP Scanning, ARP Binding, Dynamic ARP Inspection (DAI).
• User Authentication & Authorization:
  • IEEE 802.1x, Web Portal Authentication, AAA (Authentication, Authorization, Accounting).
  • RADIUS & TACACS+ Authentication.

---

Multicast & QoS Features:

• Multicast Support:
  • IGMP Snooping (v1, v2, v3), IGMP Fast Leave, MLD Snooping (v1, v2), Multicast VLAN Registration (MVR).
• Quality of Service (QoS):
  • 8 Hardware Queues per Port.
  • Bandwidth Control & Flow Management.
  • Traffic Classification Based on ACL, VLAN ID, CoS, TOS, DSCP, IPv6 Flow Label.
  • Policy-Based QoS for Ports & VLANs.
  • Traffic Scheduling: SP, WDRR, SWDRR, DWRR.

---

Management & Maintenance Features:

• Device Management:
  • XModem/TFTP/FTP, CLI, Telnet, Console, Web/SSL (IPv4/IPv6), SSH (IPv4/IPv6).
• Network Monitoring & Control:
  • SNMP v1/v2c/v3, SNMP Trap, Public & Private MIB Interface, RMON 1,2,3,9.
  • Ping, Trace Route, Syslog (IPv4/IPv6), SNTP/NTP (IPv4/IPv6).
• Enhanced Monitoring & Traffic Control:
  • Port Mirroring, CPU Mirroring, RSPAN, ERSPAN, sFlow, OAM*.
  • Dying GASP, ULDP (Like Cisco UDLD), LLDP/LLDP MED.
• Backup & Redundancy:
  • Dual Image, Multiple Configuration Files for fail-safe operation.

---

Green Energy Features:

• Energy-Efficient Ethernet (IEEE 802.3az): Reduces power consumption without performance loss.
• Smart Fan Control: Automatic fan speed adjustment with temperature monitoring.
• LED Shut-Off Function: Saves energy by turning off unused LED indicators.

---

Switching Solutions:

• DG-GS4628SE: 24-Port Gigabit Ethernet Layer 3 Access Switch.
• DG-GS4652SE: 48-Port Gigabit Ethernet Layer 3 Access Switch.
• DG-GS4628HPSE: 24-Port Gigabit Ethernet Layer 3 PoE Switch.
• DG-GS4652HPSE: 48-Port Gigabit Ethernet Layer 3 PoE Switch.
