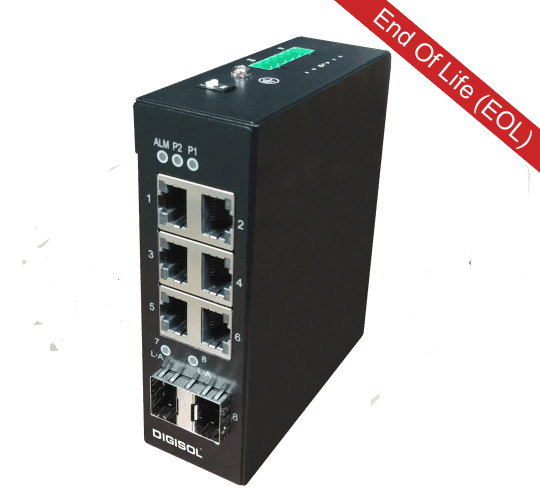

Digisol 6 Port Fast Ethernet Unmanaged Industrial Switch with 2 SFP Ports-DG-IS1008F
Key Features
Port Configuration:
6 × 10/100BaseT(X) Ethernet ports
2 × 100Base SFP slots
Network Performance:
IEEE 802.3x flow control & back-pressure
L2 wire-speed switching engine
1K MAC forwarding addresses
Multicast, Broadcast, and Flooding Storm Control
Power & Protection:
Dual power input (12–58 VDC)
Reverse power protection
Power alarm relay output
Design & Reliability:
Fan-less operation for silent and efficient cooling
Wide operating temperature range: -40 to +75°C
Rugged IP30-rated enclosure for industrial environments
Technical Specifications
Ethernet Performance
Operating Mode: Store and Forward, Wire-Speed, Non-Blocking Switching Engine
MAC Address Table: 1K entries
RJ45 Copper Ports:
10/100 Mbps speed auto-negotiation
MDI/MDIX auto-crossover support
SFP (Pluggable) Ports:
100Base SFP with LC connector
Flow Control:
IEEE 802.3x (Full Duplex)
Back-Pressure (Half Duplex)
Fault Contact: Power Alarm Relay Output
DIP Switch Functions:
Enable/Disable Broadcast Storm Protection
Enable/Disable Power Alarm
Power & Protection
Power Input: Redundant Input Terminal with Reverse Power Protection
Input Voltage Range: 12–58 VDC
Status Indicators
Power Status: Displays Power Input Status
Ethernet Port Status: Indicates Link & Speed
Environmental & Compliance
Operating Temperature: -40 to +75°C (Cold Startup at -40°C)
Storage Temperature: -40 to +85°C
Humidity: 5–95% RH (Non-Condensing)
Vibration, Shock & Freefall Standards: Compliant with IEC60068-2-6, -27, -32
Mechanical Specifications
Ingress Protection: IP30 Rated
Dimensions: 11.78 cm (H) × 3.9 cm (W) × 9.69 cm (D) (without DIN clip)
Weight: 395 g
Installation Option: DIN-Rail Mounting
General
- TypesUnManaged
- Switching Capacity1.6 Gbit/s
- Port TypeSFP
- No. Of Ethernet Ports8
- No. Of SFP Ports2
- No. Of RJ45 Ports5
- No. Of Power Supplies Supported1
- Rack MountingYes
