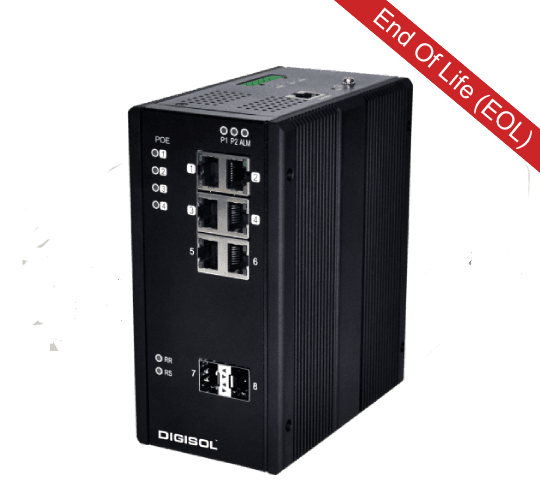

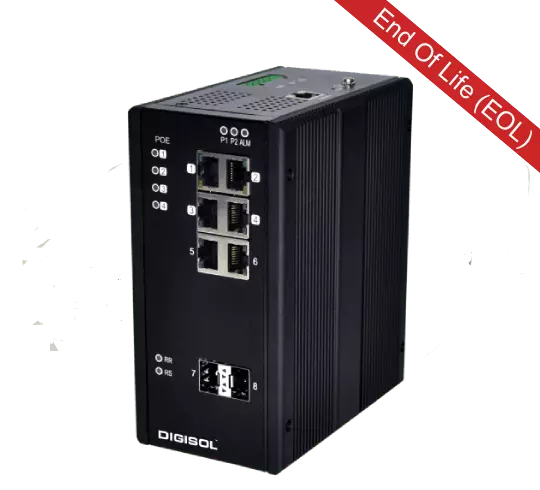

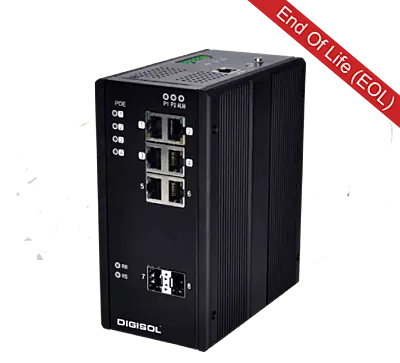

Digisol L2 Managed Din-Rail Industrial Ethernet Switch-DG-IS4508HP

Technical Specifications

Ethernet

• Switching Engine: Store and Forward, L2 Wire-Speed, Non-Blocking

• MAC Addresses: 8K

• Jumbo Frames: 9K Bytes

Copper RJ45 Ports

• Speed: 10/100/1000 Mbps

• MDI/MDIX Auto-Crossover: Supports both straight and cross-wired cables

• Auto-Negotiation: 10/100/1000 Mbps speed with full and half-duplex modes

SFP (Pluggable) Ports

• Supported Port Types:

  • 100/1000Base-SFP slots

  • Supports 100/1000BaseT SFP transceivers

Network Redundancy

• Fast Failover Protection Rings:

  • Link loss recovery time < 20ms

  • Supports Single & Multiple Rings, Ring Coupling, Dual-Homing, and Chain topology

• Spanning Tree Protocols: IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP

• Port Trunking with LACP: Supports both Static Trunk and Dynamic Link Aggregation (LACP)

VLAN & Protocols

• Flow Control: IEEE 802.3x (Full Duplex) & Back-Pressure (Half Duplex)

• Maximum VLANs: 1024

• VLAN Types Supported:

  • Port-based VLANs, MAC-based VLANs, IP Subnet-based VLANs, Protocol-based VLANs

  • IEEE 802.1Q Tag-based VLANs

  • IEEE 802.1ad (QinQ) Double Tagging

Multicast & IPv6 Support

• Multicast Protocols:

  • IGMP v1/v2 (Supports up to 255 Multicast Groups)

  • IGMP Snooping & Querying (IGMP Snooping v3)

  • IPv6 over Ethernet

  • IPv6 Multicast with MLDv1 & MLDv2

• LLDP (Link Layer Discovery Protocol): IEEE 802.1ab

Traffic Management & QoS

• Quality of Service (QoS): IEEE 802.1p

• Number of Queues per Port: 8

• Scheduling Schemes: SPQ, WRR

• Traffic Shaper: Port-based traffic shaping

Security

• Port Security:

  • IP and MAC-based Access Control

  • IEEE 802.1X Authentication (Network Access Control)

  • RADIUS and TACACS+ Authentication, Authorization, and Accounting (AAA)

• Storm Control: Multicast/Broadcast/Flooding

Management & Configuration

• User Management Interfaces:

  • CLI (Command Line Interface), Console

  • Web-based Management

  • SNMP v1/v2c/v3

  • Telnet

• Management Security:

  • HTTPS, SSH

  • RADIUS Client for Secure Management

• System Configuration & Maintenance:

  • FTP for Configuration Import/Export

  • FTP for Firmware Upgrades

  • Syslog for Diagnostic Logging

• Supported MIBs:

  • RFC 1757 RMON 1,2,3,9

  • RFC 2674 Q-Bridge MIB

  • RFC-1213 MIB-II, RFC-1493 Bridge MIB, RFC 2233 IF MIB

Power Specifications

• Power Input: Redundant Input Terminals

• Input Voltage Range: 46-57 VDC

• Total PoE Power Budget:

  • 120W (DG-IS4508HP)

  • 240W (DG-IS4512HP & DG-IS4514HP)

• PoE Power Management:

  • Scheduling, Power Control, PoE PD Power Consumption Monitoring

• Reverse Power Protection: Yes

• Power Consumption: 15W (without PD loading)

Indicators & Status Monitoring

• Power Status Indication: Displays power input status

• Ethernet Port Indicators: Link & Speed Status

• PoE Status Indication: Shows PoE Power Distribution

Environmental & Compliance

• Operating Temperature: -40°C to +75°C (Cold Startup at -40°C)

• Storage Temperature: -40°C to +85°C

• Humidity (Non-Condensing): 5% to 95% RH

• RoHS Compliance: Yes (Pb-Free)

• MTBF (Mean Time Between Failures): > 25 years

Mechanical & Installation

• Ingress Protection: IP30

• Mounting Options: DIN-Rail & Wall Mounting

• Dimensions: 77mm (W) × 154mm (H) × 128mm (D)

• Weight: 1410g

Ordering Information

• DG-IS4508HP: Industrial 8-port Managed PoE Switch with 4 Gigabit PoE Ports, 2 Gigabit Ports & 2 SFP Ports

• DG-IS4512HP: Industrial 12-port Managed PoE Switch with 8 Gigabit PoE Ports & 4 SFP Ports

• DG-IS4514HP: Industrial 14-port Managed PoE Switch with 8 Gigabit PoE Ports (Ports 1 & 2 support 60W Ultra PoE), 2 Gigabit Ports & 4 SFP Ports
