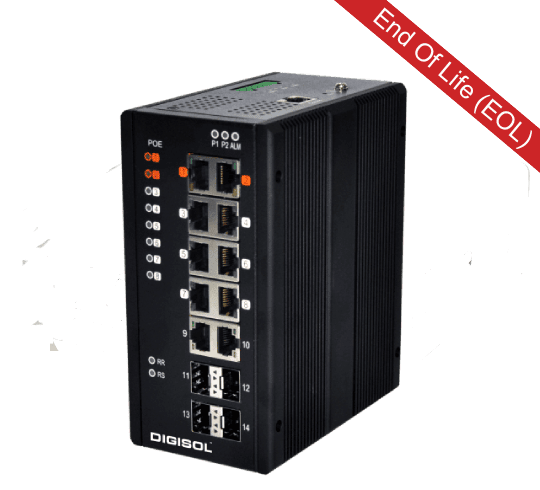

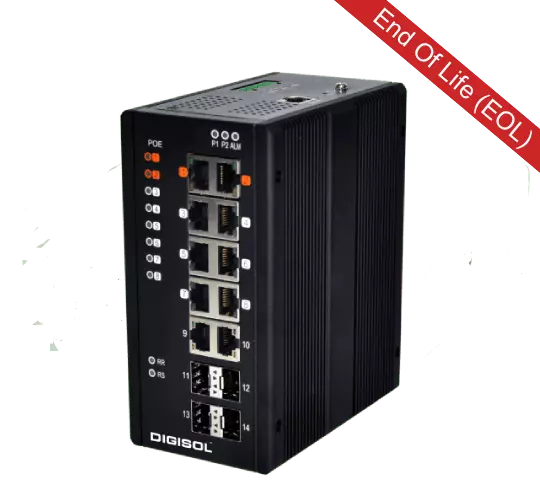

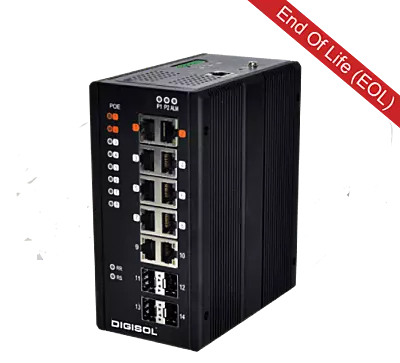

Digisol L2-Managed Din-Rail Industrial Ethernet Switch-DG-IS4514HP

DIGISOL Industrial Managed PoE Switch Series

Ethernet Performance

• Operating Mode: Store and Forward

• Switching Engine: L2 wire-speed, non-blocking

• MAC Address Table: 8K entries

• Jumbo Frames: Supports up to 9K Bytes

Copper RJ45 Ports

• Speed: 10/100/1000 Mbps

• Auto MDI/MDIX: Supports both straight and cross-wired cables

• Auto-Negotiation: Automatically adjusts speed (10/100/1000 Mbps) and duplex mode (Full/Half)

SFP (Pluggable) Ports

• Supported Port Types:

  • 100/1000Base-SFP slots

  • Supports 100/1000Base-T SFP transceivers

Network Redundancy & Reliability

• Fast Failover Protection:

  • Link loss recovery in < 20ms

  • Supports Single & Multiple Rings, Ring Coupling, Dual-Homing, and Chain configurations

• Spanning Tree Protocols:

  • IEEE 802.1D STP

  • IEEE 802.1w RSTP

  • IEEE 802.1s MSTP

• Port Trunking with LACP:

  • Supports both Static and Dynamic trunking via LACP (Link Aggregation Control Protocol)

Bridge, VLANs & Protocols

• Flow Control:

  • IEEE 802.3x (Full Duplex)

  • Back-Pressure (Half Duplex)

• VLAN Capabilities:

  • Supports up to 1024 VLANs

  • VLAN Types:

    • Port-based, MAC-based, IP Subnet-based, Protocol-based VLANs

    • IEEE 802.1Q Tag-Based VLANs

    • IEEE 802.1ad Double Tagging (Q-in-Q)

• Multicast Protocols:

  • IGMP v1/v2 (supports up to 255 multicast groups)

  • IGMP Snooping & Querying (including IGMP Snooping v3)

  • IPv6 Multicast Support (MLDv1 & MLDv2)

• LLDP (Link Layer Discovery Protocol): IEEE 802.1ab

Traffic Management & QoS

• Priority Handling: IEEE 802.1p QoS

• Queues per Port: 8

• Scheduling Schemes: SPQ, WRR

• Traffic Shaping: Port-based shaping

Security Features

• Port Security:

  • IP & MAC-based Access Control

  • IEEE 802.1X Authentication (Network Access Control)

  • RADIUS & TACACS+ (AAA: Authentication, Accounting, Authorization)

• Storm Control: Protects against Multicast, Broadcast, and Flooding storms

Management & Diagnostics

• User Management Interfaces:

  • CLI (Command Line Interface)

  • Console Access

  • Web-based Management

  • SNMP v1/v2c/v3

  • Telnet

• Management Security:

  • HTTPS, SSH

  • RADIUS Client for Secure Management

• Upgrade & Restore:

  • FTP for Configuration Import/Export

  • FTP for Firmware Upgrade

• Diagnostic Features:

  • Syslog Logging

• Supported MIBs:

  • RFC 1757 RMON (1,2,3,9)

  • RFC 2674 Q-Bridge MIB

  • RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 2233 IF MIB

• DHCP Support: Client, Server, Relay, Snooping, Option 82

• NTP/SNTP Support: Yes

• System Status Monitoring:

  • Device information/status

  • Ethernet port & PoE status

PoE & Power Management

• Power Input: Redundant Input Terminals

• Input Voltage Range: 46-57 VDC

• Total PoE Power Budget:

  • 120W (DG-IS4508HP)

  • 240W (DG-IS4512HP & DG-IS4514HP)

• PoE Power Management:

  • Scheduling

  • Power Control

  • PoE PD Power Consumption Monitoring

• Reverse Power Protection: Yes

• Base Power Consumption (without PD load): 15W

Status Indicators

• Power Status: Displays Power Input Status

• Ethernet Port Status: Displays Link & Speed

• PoE Status: Indicates PoE Power Application

Environmental & Compliance

• Operating Temperature: -40°C to +75°C (Cold Start at -40°C)

• Storage Temperature: -40°C to +85°C

• Humidity: 5-95% RH (Non-Condensing)

• RoHS Compliance: Yes (Lead-Free)

• MTBF (Mean Time Between Failures): > 25 years

Mechanical Specifications

• Ingress Protection: IP30

• Mounting Options: DIN-Rail or Wall Mounting

• Dimensions: 77mm (W) × 154mm (H) × 128mm (D)

• Weight: 1410g
