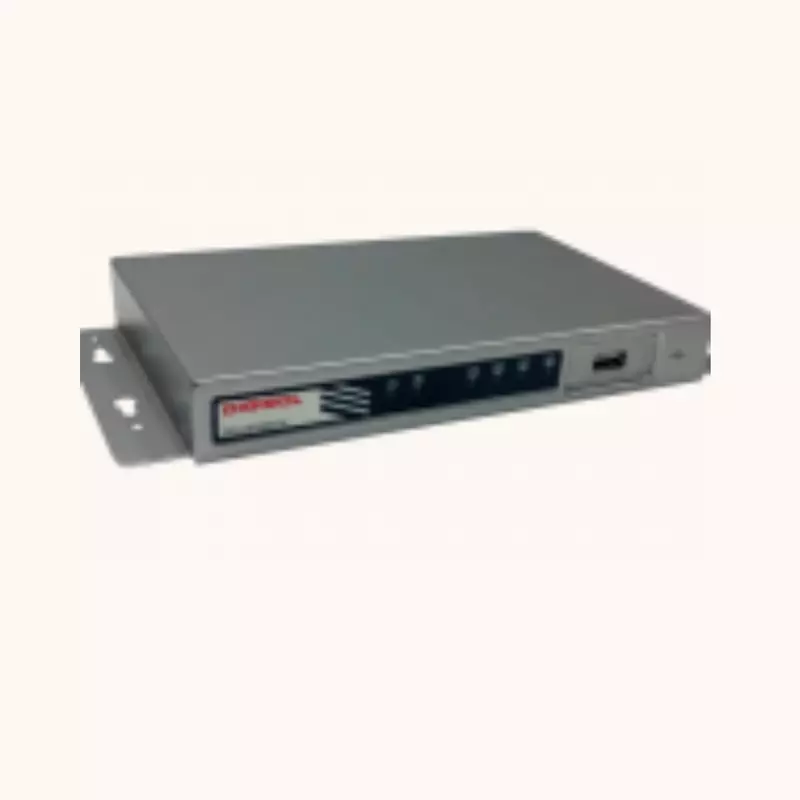

Digisol Multi WAN Load Sharing VPN Router with 3G/ 4G-DG-LB1054UV

Interfaces

Ethernet:
- 1 RJ45 FE WAN Port (Up to 2 Ports)
- 1 USB WAN Port
- 4 RJ45 FE LAN Ports (User selectable one port as WAN/LAN)

WAN Features

WAN:
- Multiple WANs, Failover/Load Balance
- Configurable Ethernet/USB 3G-4G
Ethernet:
- Dynamic IP, Static IP, PPPoE, PPTP, L2TP
3G/4G:
- NDIS for 3G/4G Connection
IPv6 Features:
- IPv4/IPv6 Dual Stack
- 6-in-4, 6-to-4, Dynamic, Static & PPPoE

Basic Features

Ethernet:
- Static IP, Dynamic IP, IPv4 & IPv6 LAN IP
VLAN:
- Port-Based, Tag-Based
NAT:
- ALG, Special AP
- DMZ Host
- Virtual Server/Computer
- PPTP/L2TP/IPSec Passthrough (Up to 50,000 Sessions)

Routing

- Static
- Dynamic IP
- RIPv1/RIPv2
- OSPF
- BGP

Client & Server

- DHCP
- DDNS
- IGMP

Management Features

System Management:
- Web, Telnet CLI, SNMP

Advanced Features

Firewall:
- SPI Firewall with Stealth Mode, IPS
Access Control:
- Packet Filters/Web Content Filters/Application Filters
- URL Blocking
- MAC Address Control
QoS & Bandwidth Management:
- Policy-Based Bandwidth Control
- Packet Flow Prioritization based on MAC/VLAN Tag/IP/DSCP/TCP/UDP/Well-Known Service Group

VPN Tunneling

- IPSec/PPTP/L2TP/GRE VPN
- IPSec VPN Tunnel (Up to 32 Tunnels)
- VPN Tunnel Failover
- VPN Tunnel Load Balance

VPN Scenario

- Site to Site, Site to Host, Host to Site & Dynamic VPN

Redundancy

- VRRP

System

- System Status & Statistics
- Tools
- Scheduling
- FW Upgrade
- Backup & Restore Settings
