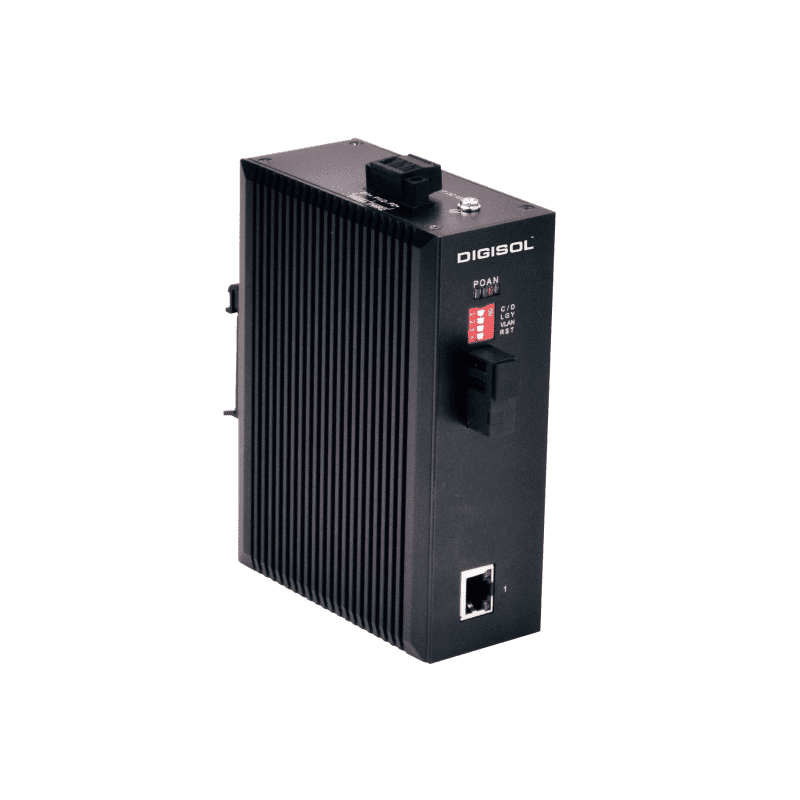

Digisol Industrial Grade Media Converter, DG-MC6123I

Provider Mode Ports

1 × 1000Base-X, 1 × 10/100/1000Base-T

Power Interface

Phoenix terminal, redundant dual power supply

LED Indicators

PWR, OPT, NMC, ALM

DIP Switch Functions

C/D: Remote PD Reset
LGY: Stand/Non-standard
PoE Mode
VLAN Mode
RST: Reset

Cable Type & Transmission Distance

- Twisted-Pair: 0-100m (CAT5e, CAT6)
- Single-Mode Optical Fiber: 20/40/60/80/100KM
- Multi-Mode Optical Fiber: 550m

Network Topology Support

Star, Bus, Tree, Hybrid

Electrical Specifications

Input Voltage: DC 12V ~ 58V
Total Power Consumption: <6W
Voltage Alarm: Supported

Layer 2 Switching

Switching Capacity: 14G
Packet Forwarding Rate: 10.416Mpps
MAC Address Table: 8K
Buffer: 1M
Forwarding Delay: <5µs
MDX/MDIX: Supported
Flow Control: Supported
Jumbo Frame Support: 10K Bytes
Watchdog: Supported
Port Isolation: Supported

Environmental Specifications

Operating Temperature: -40°C ~ +75°C
Tested at 85°C for 4 hours
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 5% ~ 95% (Non-Condensing)
Cooling: Fanless, Natural Cooling
MTBF: 100,000 Hours

Mechanical Dimensions

Product Size: 143 × 104 × 48 mm
Installation Method: DIN Rail
Weight: ~0.6 KG

EMC & Ingress Protection

IP Level: IP40
Surge Protection (Power): IEC 61000-4-5 Level X (6KV/6KV) (8/20µs)
Surge Protection (Ethernet Port): IEC 61000-4-5 Level 4 (4KV/4KV) (10/700µs)

Accessories

Device, Terminals, Specification, Power Adapter (Optional)

Future Upgrade

Feature available in future upgrade
