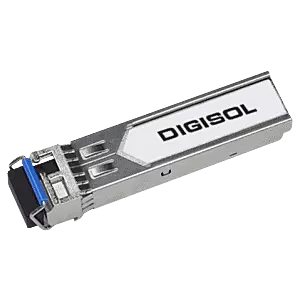

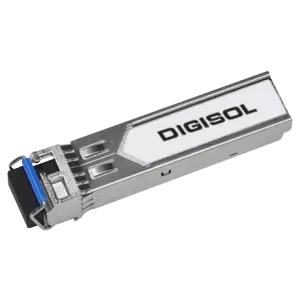

Digisol Bi-Directional SFP Transceivers, DG-SA1134-BDT
Out of stock
Rs. 8,500.00
Rs. 10,499.00
Key Features
- SFP Multisource Agreement (MSA) compliant
- Hot Pluggable
- Low power dissipation
- Single power supply 3.3V
- Supports Digital Diagnostic Monitoring
Product Details
Specifications
Product Details
Product Details
Technical Specifications
| Specification | Value |
|---|---|
| Standard | 1000BASE-BX compatible |
| Transceiver Type | SFP (Small Form Pluggable) |
| Connector | Single LC connector |
| Operating Wavelength | DG-SA1134-BDT (Tx/Rx): 1310nm/1550nm DG-SA1134-BDR (Tx/Rx): 1550nm/1310nm |
| Data Rate | Operating data rate Up to 1.25Gb/s |
| Cable Type | Single core single-mode (9/125µm) optical fiber |
| Maximum Cable Distance Coverage | 40km |
| Supply Current | 280mA (Maximum) |
| Input Voltage | 3.1V (minimum) 3.3V (Typical) 3.5V (maximum) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Warranty | DIGICARE 1 Year Warranty |
Specifications
Specifications
General
- Interface TypeSFP
- Maximum Data Transfer Rate1.25 Gbps
