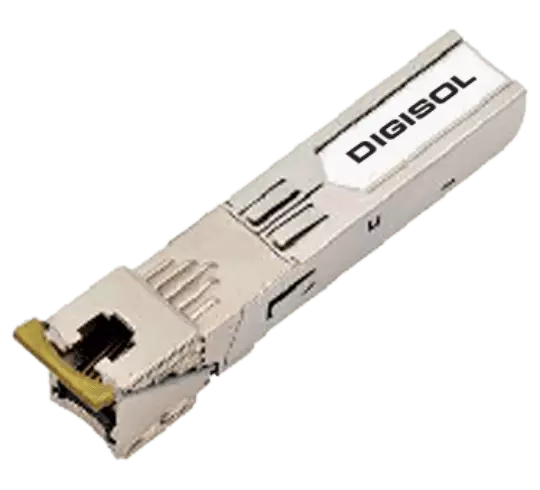

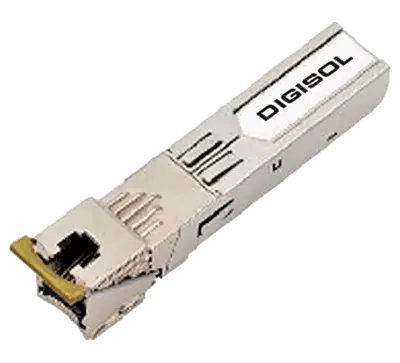

DIGISOL High Performance 10GBase-T SFP Transceivers, DG-SA2230T
Out of stock
Rs. 2,500.00
Rs. 3,199.00
Key Features
- SFP Multisource Agreement (MSA) compliant
- Hot Pluggable
- Low power dissipation
- Single power supply 3.3V
- Standard IEEE802.3 compliant
Product Details
Specifications
Product Details
Product Details
Technical Specifications
| Specification | Value |
|---|---|
| Standard | 10GBASE-T Gigabit Ethernet |
| Transceiver Type | SFP (Small Form Pluggable) |
| Connector | RJ-45 |
| Auto MDI/MDIX | Automatic crossover detection enabled |
| Data Rate | 10Gbps (IEEE802.3 compatible) |
| Cable Type | 10GBase-T Cat6A cable 30m reach 5GBase-T/2.5GBase-T Cat5e cable 50m reach 1000Base-T Cat5e cable 100m reach |
| Maximum Cable Distance Coverage | 100 meters |
| Supply Current | 700mA (typical) 900mA (maximum) |
| Input Voltage | 3.13V (minimum) 3.3V (typical) 3.47V (maximum) |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Warranty | DIGICARE Standard Warranty |
Specifications
Specifications
General
- Interface TypeSFP+
- Maximum Data Transfer Rate10000 Mbit/s
