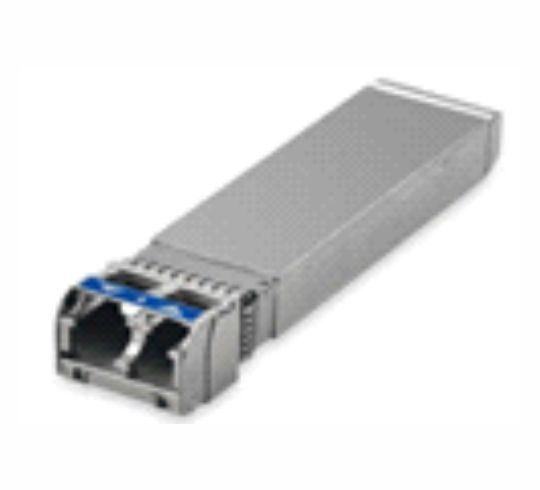

DIGISOL 25G BASE LR SFP28 Transceiver, 1310nm, 10Km-DG-SA3131
Key Features
Supports 25GBASE-LR
Bit rate 25.78 Gb/s
Up to 10km transmission on SMF
DFB laser and PIN receiver
High speed I/O electrical interface (25GAUI)
I2C interface with integrated Digital Diagnostic monitoring
SFP28 MSA package with duplex LC connector
Single +3.3V power supply
Maximum power consumption 1.5 W
Operating case temperature: 0 to 70°C
Compliant to IEEE 802.3cc, SFF-8402 and SFF-8419
Storage Temperature: -40 to +85°C
Temperature: 0 to 70°C
Voltage: 3.13 to 3.47 ± 0.1 V
Supply voltage: -0.3 to +3.6V
Operating Relative Humidity: 5 to 95% RH
TxBias Current: 0 to 100 ±10% mA
Tx Output Power: -7 to 2 ±3 dBm
Rx Power: -12 to 3 ±3 dBm
Average Receive power: -13.3 to 2 dBm
Receiver sensitivity (OMA): Max -12 dBm
Compliant to IEEE 802.3cc, SFF-8402 and SFF-8419
Product / Model
DIGISOL DG‑SA3131 – a 25 GBASE‑LR SFP28 optical transceiver module.Standard / Data Rate
Supports 25GBASE‑LR specification; designed for 25 Gbps Ethernet. Bit rate specified around 25.78 Gb/s.Transmission Distance / Reach
Capacity to transmit up to 10 km over single‑mode fiber (SMF).Wavelength
Operates at 1310 nm, which is typical for long‑range single‑mode LR optics.Laser & Receiver Type
Uses a DFB (Distributed Feedback) laser transmitter and a PIN receiver.Optical Connector
Features a duplex LC connector.Electrical Interface
Uses a high‑speed I/O electrical interface, specified as 25GAUI.Form Factor / Package
SFP28 MSA‑compliant package (which is essentially the same form factor as SFP, but capable of higher data rates).Power Supply / Consumption
Runs from single +3.3 V supply. Maximum power consumption is approx 1.5 W.Digital Diagnostic Monitoring (DDM)
Has integrated diagnostic monitoring via I²C interface — so you can monitor parameters like temperature, optical power, voltage etc.Operating Temperature
Case / operational temperature range: 0 °C to +70 °C (standard commercial temperature range).Storage Conditions
Can be stored in −40 °C to +85 °C.
