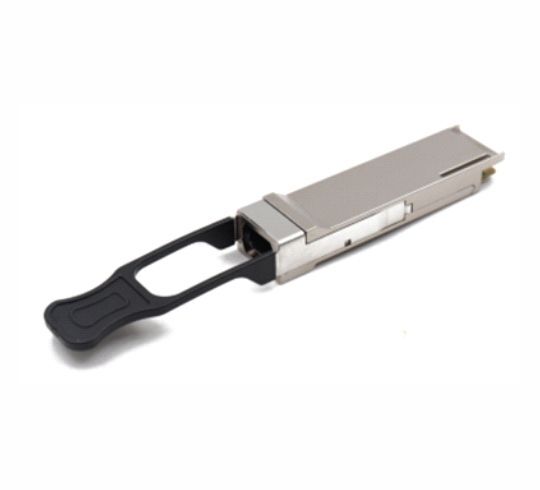

DIGISOL QSFP+ SR4, 40G, 150M, 850nm, MPO-DG-SA4010
Key Features
Supports 40GBASE-SR4/QDR application
Compliant to QSFP+ Electrical MSA SFF-8436
Multi rate of up to 10.3125Gbps per lane
Transmission distance up to 150m (OM3)
+3.3V single power supply
Low power consumption
Operating case temperature: 0°C to +70°C
Operating Humidity: +5 to +85% RH
Storage Temperature: -40°C to +85°C
Supply Voltage: 0.5 to +3.6V
RoHS compliant
Model / Identity
Name: DIGISOL DG‑SA4010 – a QSFP+ SR4 optical transceiver module.Data Rate & Standard
Designed for 40 Gigabit Ethernet (40GBASE‑SR4), compliant with IEEE 802.3ba SR4 specification.Form Factor / Interface
QSFP+ (Quad Small Form‑factor Pluggable Plus). Uses MPO (Multi‑Fibre Push On) connector for optical side.Channels / Lanes
It has 4 transmit and 4 receive channels, each lane supporting up to ~10.3125 Gbps, making aggregate ≈40 Gbps.Wavelength
Operates at 850 nm, typical short‑reach MMF VCSEL design.Fiber Type
Multi‑mode fiber (MMF). Typically OM3 (and possibly OM4) used.Transmission Distance / Reach
Up to 150 meters over MMF (OM3 / OM4) depending on fiber grade.Connector
MPO connector (MPO‑12 or MPO as per module).Power Supply
Single +3.3V power supply.Power Consumption
Described as “low power consumption” in spec sheet. Exact wattage not explicitly in that source, but consistent with typical SR4 modules (≈1.5‑2W).Operating Case Temperature
0 °C to +70 °C (commercial temperature range).Storage & Humidity Tolerance
Operating relative humidity: +5 % to +85 % RH. Storage temperature: −40 °C to +85 °C
