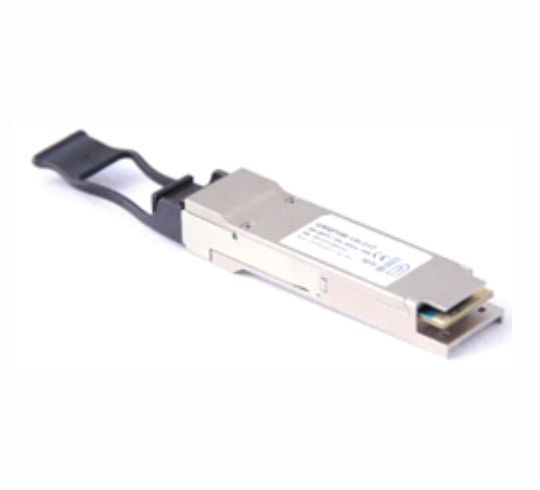

DIGISOL 100GBase-SR QSFP28 Transceiver, DG-SA5010
Rs. 68,000.00 Rs. 84,999.00
Out of stock
Tags:
Key Features
- 4 independent full-duplex channels
- Up to 28Gb/s data rate per channel
- QSFP28 MSA compliant
- Up to 100m OM4 MMF transmission
- Operating case temperature: 0 to 70°C
- Storage Temperature: -40 to 85°C
- Relative Humidity (non-condensation): 0 to 85% RH
- Single 3.3V power supply
- Maximum power consumption 3.5W
- MTP/MPO optical connector
- Link Distance (OM3): 70 m
- Link Distance (OM4): 100 m
- RoHS-6 compliant
Product Details
Digital Diagnostic Functions
The following digital diagnostic characteristics are defined over the Recommended Operating Environment unless otherwise specified. It is compliant to SFF-8436.
| Parameter | Symbol | Min | Max | Units | Notes |
|---|---|---|---|---|---|
| Temperature monitor absolute error | DMI_Temp | -3 | 3 | Deg C | Over operating temperature range |
| Supply voltage monitor absolute error | DMI_V | -0.15 | 0.15 | V | Over Full operating range CC |
| Channel RX power monitor absolute error | DMI_RX_Ch | -2 | 2 | dB | 1 |
| Channel Bias current monitor | DMI_Ibias_Ch | -10% | 10% | mA | Ch1~Ch4 |
| Channel TX power monitor absolute error | DMI_TX_Ch | -2 | 2 | dB | 1 |
