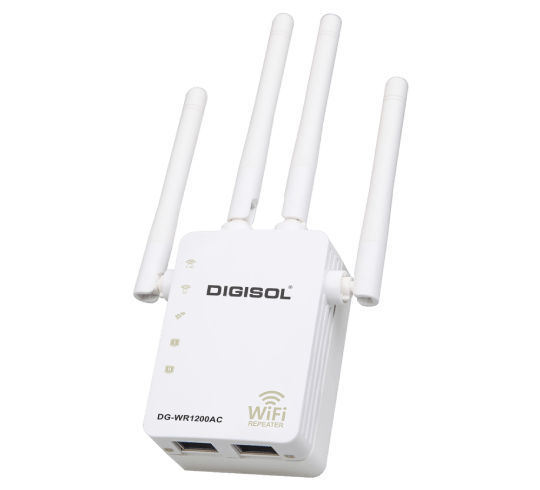

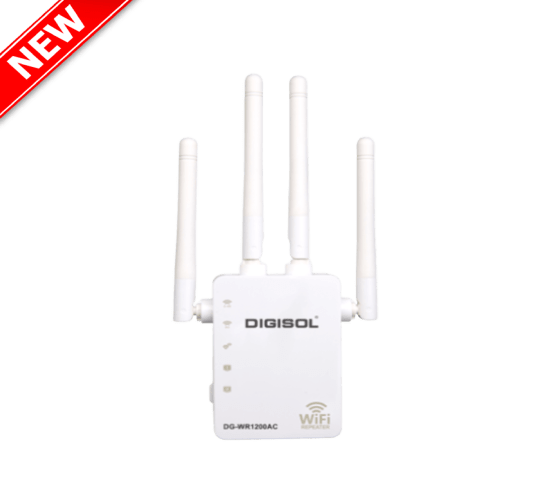

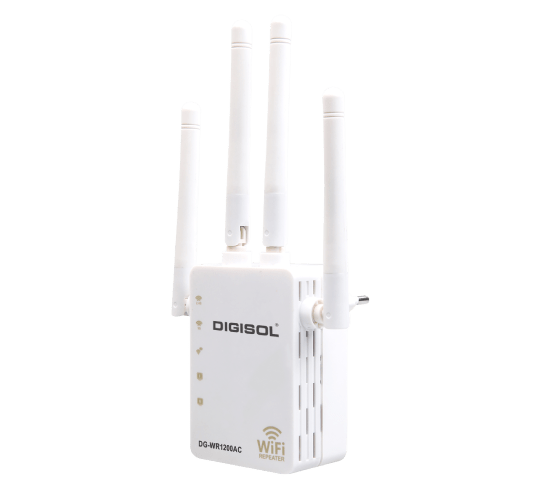

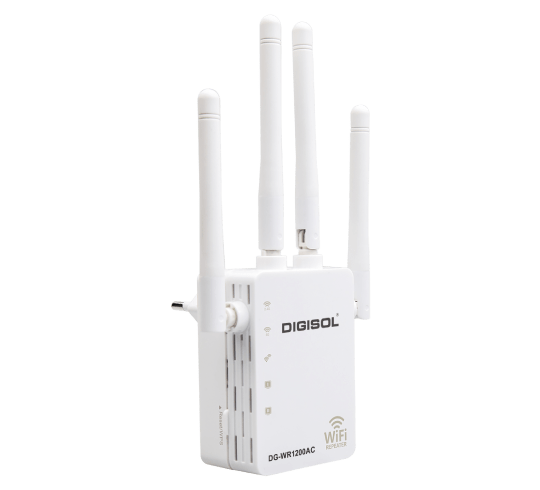

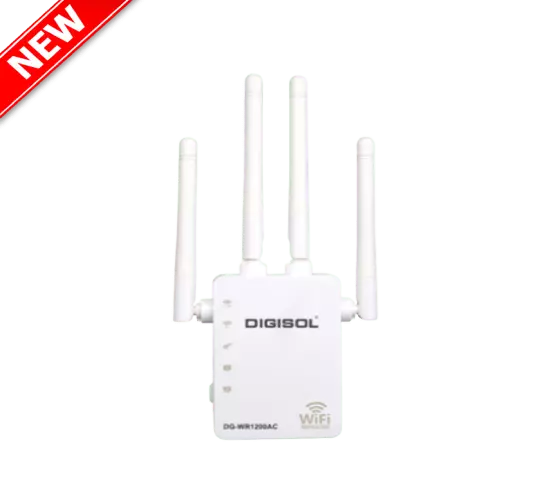

Digisol DIGISOL AC1200Mbps Dualband Wireless Repeater, DG-WR1200AC (H/W Ver. A1)

Technical Specifications

Hardware Specifications

• Antennas: 4 × 2dBi external antennas (2T2R) for each band

• Ports: 2 × 10/100Mbps UTP LAN ports (Auto MDI/MDI-X)

• Buttons: 1 × WPS button, 1 × Reset button

Frequency Bands

• 2.4GHz Band:

  • 2412MHz – 2472MHz (802.11b/g/n HT20)

  • 2422MHz – 2462MHz (802.11n HT40)

• 5GHz Band:

  • 5180MHz – 5240MHz (802.11a/n/ac HT20)

  • 5190MHz – 5230MHz (802.11n/ac HT40)

  • 5210MHz – 5290MHz (802.11ac HT80)

Standard Compliance

• IEEE 802.3 10BASE-T Ethernet

• IEEE 802.3u 100BASE-TX Fast Ethernet

• IEEE 802.11 a/b/g/n/ac

Data Rate

• 802.11b: 1/2/5.5/11Mbps

• 802.11g: 6/9/12/24/36/48/54Mbps

• 802.11n (20MHz): MCS0-7, up to 144Mbps

• 802.11n (40MHz): MCS0-7, up to 300Mbps

• 802.11a: Up to 6-54 Mbps

• 802.11ac: MCS0~9

Output Power

• 802.11b: >17 ± 1.5dBm

• 802.11g: >14 ± 1.5dBm

• 802.11n: >13 ± 1.5dBm

• 802.11ac: >13 ± 1.5dBm

• Maximum EIRP: 20dBm

Receiver Sensitivity

• 802.11b @ 11Mbps: -85 to -95 dBm

• 802.11g @ 54Mbps: -70 to -92 dBm

• 802.11n (20MHz) @ MCS15: -67 ± 2 dBm

• 802.11n (40MHz) @ MCS15: -63 ± 2 dBm

• 802.11a: -92 dBm

• 802.11ac MCS0~9: -87 dBm

Wireless Modes

• Universal Repeater Mode

• Access Point Mode

Wireless Security

• WEP, WPA, WPA2

Power Supply

• 5V, 1A Integrated Power Module

Environmental Specifications

• Operating Temperature: 0°C – 40°C (32°F – 104°F)

• Operating Humidity: 10% – 90% (Non-condensing)

• Storage Temperature: -20°C – 60°C (-4°F – 140°F)

• Storage Humidity: Max. 95% (Non-condensing)

Warranty

• DIGICARE 3-Year Warranty
