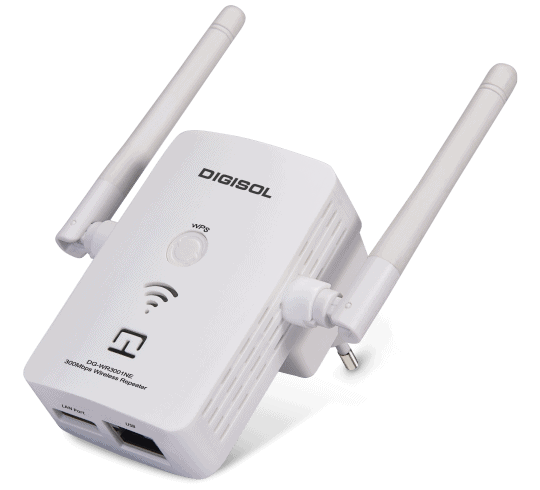

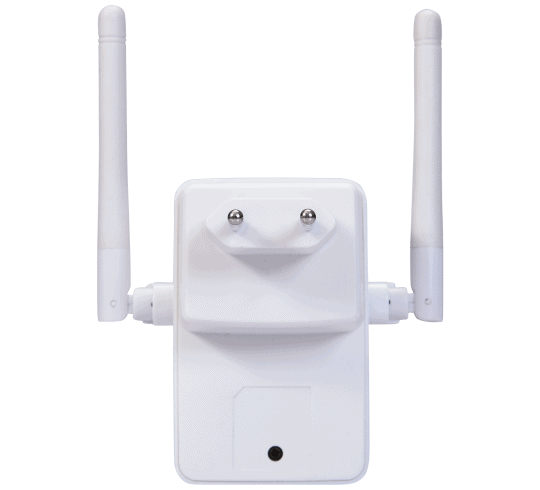

Digisol 300mbps Wireless Repeater, DG-WR3001NE (H/W Ver. A1)
Key Features
Extended Wireless Range – Enhances coverage with Universal Repeater mode.
Compact & Wall-Mountable Design – Space-saving and easy to install.
High-Speed Wireless Performance – Supports speeds up to 300Mbps for seamless connectivity.
Access Point Mode – Can function as an AP for flexible networking.
Advanced Security – Ensures secure connections with WEP, WPA, and WPA2 encryption.
External Antennas & Built-in Power Adapter – Provides stable and efficient signal transmission.
Convenient Operation – Equipped with WPS and Reset buttons for quick setup and troubleshooting.
Technical Specifications
Hardware Specifications:
Antenna: External antenna (2T2R)
LAN Port: 1 × 10/100Mbps UTP Port (Auto MDI/MDI-X)
Buttons: WPS & Reset
USB Port: 1 × USB (Output 5V-0.5A)
Frequency Band:
2.4000 ~ 2.4835GHz
Standard Compliance:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.11b/g/n
Data Rate:
IEEE 802.11b: 1/2/5.5/11Mbps
IEEE 802.11g: 6/9/12/24/36/48/54Mbps
IEEE 802.11n (20MHz): MCS0-15, up to 144Mbps
IEEE 802.11n (40MHz): MCS0-15, up to 300Mbps
Output Power:
IEEE 802.11b: 17 ± 1.5dBm
IEEE 802.11g: 14 ± 1.5dBm
IEEE 802.11n (20MHz): 13 ± 1.5dBm
IEEE 802.11n (40MHz): 13 ± 1.5dBm
Receiver Sensitivity:
IEEE 802.11b @ 11Mbps: -85 ± 2dBm
IEEE 802.11g @ 54Mbps: -70 ± 2dBm
IEEE 802.11n (20MHz) @ MCS15: -67 ± 2dBm
IEEE 802.11n (40MHz) @ MCS15: -63 ± 2dBm
Wireless Modes:
Universal Repeater
Access Point
Wireless Security:
WEP
WPA
WPA2
Power:
5V, 1A Integrated Power Module
Environmental Specifications:
Storage Humidity: Max. 95% (Non-Condensing)
Operating Humidity: 10~90% (Non-Condensing)
Warranty:
DIGICARE Limited Lifetime Warranty
General
- Connectivity TypeWireless
- Router Data Transfer Rate200 to 499 Mbps
Features
- Frequency Band ClassSingle-Band
- Security ProtocolWEP
- Wireless Communication Standard802.11.a
- Antenna TypeExternal
- Antennas Quantity2
- Number of LAN Ports1
- Item Width Shorter Edge15 cm & above
