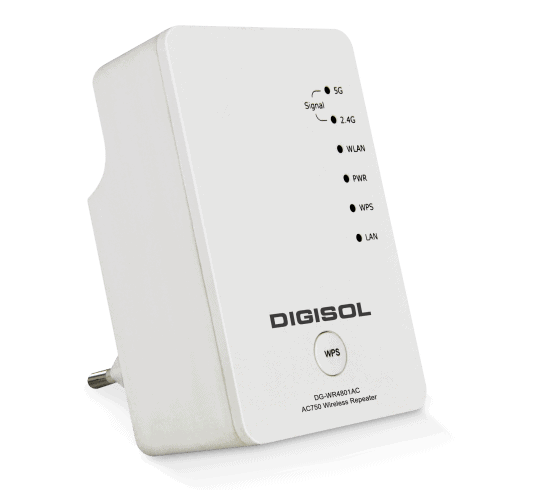

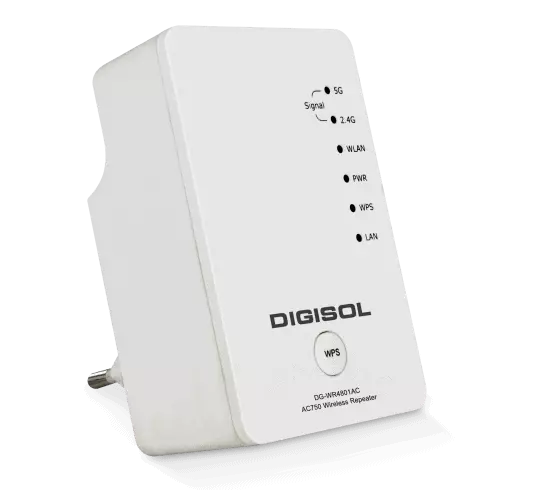

Digisol AC750 Dual Band Wireless Repeater Or WiFi Booster, DG-WR4801AC (H/W Ver. A1)

Technical Specifications

Hardware Specifications

• Antenna: Internal antenna (2.4GHz: 2T2R, 5GHz: 1T1R)

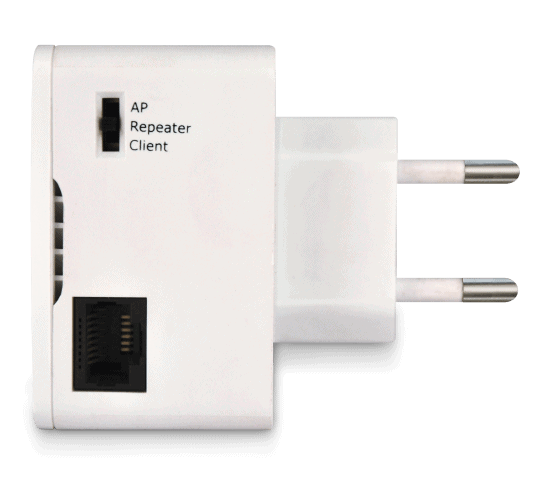

• LAN Port: One 10/100Mbps UTP Port (Auto MDI/MDI-X)

• Buttons: One WPS/Reset push button

Frequency Band

• Supports both 2.4GHz and 5GHz (Industrial, Scientific, and Medical Band)

Standard Compliance

• Ethernet Standards:

  • IEEE 802.3 (10BASE-T)

  • IEEE 802.3u (100BASE-TX Fast Ethernet)

• Wireless Standards:

  • IEEE 802.11b/g/n/a/ac

  • RADIUS (IEEE 802.1x)

Data Rate

• 802.11a: 6/9/12/24/36/48/54Mbps

• 802.11b: 1/2/5.5/11Mbps

• 802.11g: 6/9/12/24/36/48/54Mbps

• 802.11n:

  • 20MHz: Up to 144Mbps (MCS0-07)

  • 40MHz: Up to 300Mbps (MCS0-07)

• 802.11ac:

  • 80MHz: Up to 433Mbps (VHTMCS0-9)

Output Power

• 2.4GHz:

  • 11b (11M): 16±1.5 dBm

  • 11g (54M): 14±1.5 dBm

  • 11n (20MHz, MCS7): 14±1.5 dBm

  • 11n (40MHz, MCS7): 13±1.5 dBm

• 5GHz:

  • 11a (54M): 13±1.5 dBm

  • 11n (20MHz, MCS7): 13±1.5 dBm

  • 11n (40MHz, MCS7): 13±1.5 dBm

  • 11ac (80MHz, VHTMCS9): 13±1.5 dBm

Wireless Modes

• Universal Repeater

• Access Point

• Wireless Client

Wireless Security

• WEP

• WPA / WPA2

• IEEE 802.1x

Power

• 5V, 1A Integrated Power Module (Built-in)

Environmental Specifications

• Operating Temperature: 32~104°F (0~40°C)

• Operating Humidity: 10~90% (Non-Condensing)

• Storage Temperature: -4~140°F (-20~60°C)

• Storage Humidity: Max. 95% (Non-Condensing)

Warranty

• DIGICARE Limited Lifetime Warranty
