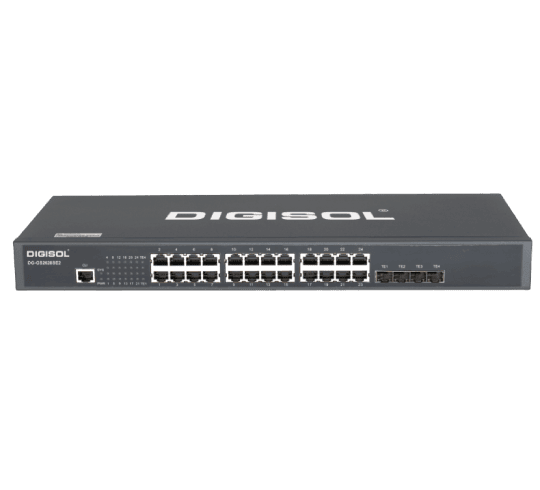

DIGISOL 10GE L3 Ethernet Switch –DG-GS2628SE2
Key Features
High Port Density & Performance – Equipped with 24 Gigabit Ethernet TX ports and 4 10-Gigabit SFP+ ports, ensuring high-speed connectivity.
Advanced Hardware Architecture – Designed with cutting-edge technology for superior network performance.
Layer-3 Routing Capabilities – Supports dynamic and static routing for efficient traffic management.
Comprehensive IPv6 Support – Provides full IPv6 protocol suite compatibility for seamless integration into modern networks.
Robust Security Mechanisms – Features advanced authentication protocols and security measures to safeguard the network.
Virtual Cluster Switching (VCS) – Enables innovative clustering for simplified network management and scalability.
Industrial Ethernet Ring Protection – Ensures zero delay and zero packet loss, enhancing network stability and resilience.
Optimized Traffic Management – Supports multiple queue scheduling algorithms for efficient traffic prioritization.
Reliable Ring Detection Mechanism – Detects and prevents network loops, ensuring stable long-term operation.
Technical Specifications
Model: DG-GS2628SE2
Category | Details |
|---|---|
Interface | 24 GE TX ports, 4 10GE/GE SFP+ ports |
Console Port | 1 RJ45 port |
Backplane | 128 Gbps |
Forwarding Rate | 96 Mpps (64-byte packets) |
Chassis Dimensions | 440 × 180 × 44 mm |
Chassis Weight (empty) | 2.6 kg |
Package Dimensions | 500 × 320 × 80 mm |
Package Weight | 3.9 kg |
Power Consumption (No Load) | < 22W |
Power Consumption (Full Load) | 35W |
Power Supply | 45W, AC: 100-240V, 60Hz |
Total Output (BTU) | 170.65 (1000 BTU/H = 293W) |
Noise at 25°C | 0 dBA |
MTBF (Mean Time Between Failures) | >200,000 hours |
Forwarding Mode | Store-and-Forward |
Memory & Storage | 16 MB Flash, 256 MB DRAM |
MAC Table Size | 16K |
Buffer Size | 1.5 MB |
Jumbo Frame Support | 9K |
Interface VLAN | 64 |
Routing Entries | IPv4: 505 / IPv6: 131 |
Operating Temperature | 0°C to 50°C |
Operating Humidity | 10% - 90% (non-condensing) |
Storage Temperature | -20°C to -70°C |
Storage Humidity | 5% - 95% (non-condensing) |
Features & Functionalities
VLAN Support
4K Active VLAN entries
QinQ & Selective QinQ
GVRP
Private VLAN
Voice VLAN
Spanning Tree & Redundancy
Supports 802.1D (STP), 802.1W (RSTP), 802.1Q (PVST+), and 802.1S (MSTP)
BPDU Guard, Root Guard, and Loopback Guard
Multicast Support
IGMP v1/v2/v3
IGMP Snooping & Fast Leave
Multicast VLAN Registration (MVR)
IGMP Filtering
IP Routing
Static Route
RIP, OSPF, IPv4 Dual Stack
IPv6 Support
ICMPv6, DHCPv6, ACLv6
IPv6 Telnet
IPv6 Neighbor Discovery
Path MTU Discovery
MLD v1/v2, MLD Snooping
IPv6 Static Routing
RIPng, OSPFv3
Manual Tunnel, ISATAP Tunnel, 6-to-4 Tunnel
Quality of Service (QoS)
Supports CAR, HQoS
MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS-based QoS
802.1P / DSCP priority re-labeling
Scheduling algorithms: SP, WRR, SP+WRR
Tail-Drop, WRED
Flow monitoring & traffic shaping
Security Features
Port Isolation, Port Security, IP+MAC+Port Binding
MAC Sticky
Dynamic ARP Inspection (DAI) & IP Source Guard (IPv4)
IEEE 802.1x, AAA Radius, and TACACS+ Authentication
L2/L3/L4 ACL-based filtering
Protection against DDoS attacks (SYN Flood, UDP Flood, etc.)
Broadcast/Multicast/Unknown Unicast Storm Control
Encryption: MD5, SHA-256, RSA-1024, AES-256
DHCP Features
DHCP Server / Relay / Client
DHCP Snooping & Option 82
Reliability & Redundancy
Static/LACP Link Aggregation, Interface Backup
Ethernet Automatic Protection Switching (EAPS) & Ethernet Ring Protection Switching (ERPS)
ISSU (In-Service Software Upgrade)
Supports up to 4 units per stack
Virtual Router Redundancy Protocol (VRRP)
Unidirectional Link Detection (UDLD)
Management & Maintenance
Console, Telnet, SSH v1/v2, HTTP, HTTPS
SNMP v1/v2/v3, RMON
File Transfer: TFTP, FTP, SFTP
Network Synchronization: NTP, Zero Touch Provisioning (ZTP)
SPAN & RSPAN for network monitoring
Dying Gasp support for power failure detection
Accessories Included
Power Cord
Rack Mounting Kits
Console Cable
General
- TypesManaged
