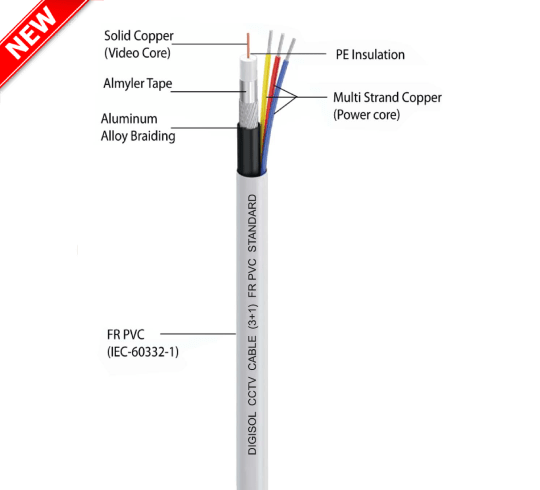

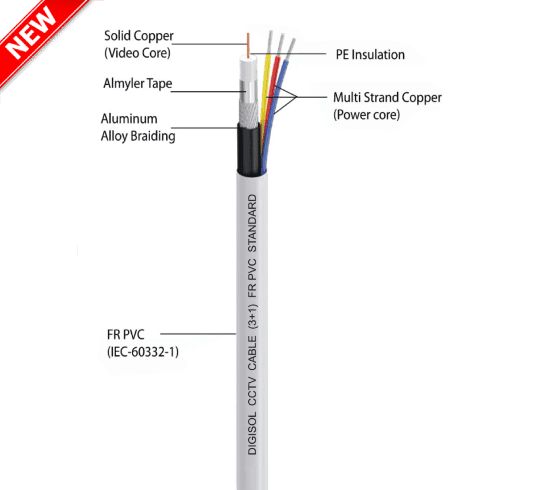

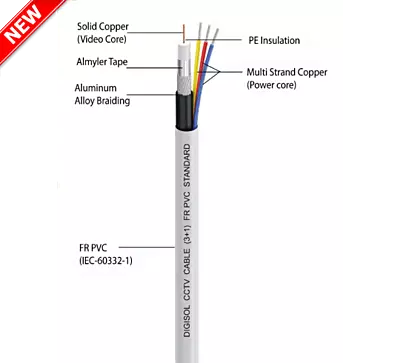

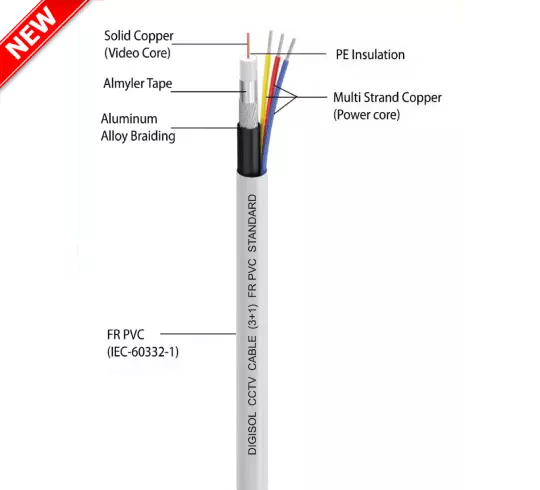

DIGISOL CCTV 3+1 Standard Cable with Al Alloy braiding 90mtrs – DGC-CC3S4F-9WCS
Key Features | Description |
|---|---|
CCTV 3+1 Hybrid Type Construction | Combines power and video cores in a single cable |
Combination of Electrical and Communication Conductors | Integrates both power supply and signal transmission functions |
Three Power Cores | Dedicated for supplying power to CCTV cameras |
Video Core with Al Alloy Braiding | Ensures effective communication with central monitoring and recording devices |
Flame Retardant Standard Cable | Designed for safety with flame retardant properties |
Parameter | Specification |
|---|---|
Product Description | |
Product Name | DIGISOL CCTV 3+1 Standard Cable |
Functionality | Hybrid cable with three power cores for powering CCTV cameras and one video core for transmitting images to control room devices |
Application | Used between CCTV cameras and control room recording/monitoring devices |
CCTV Cable (Outer Sheath) | |
Color & Material of Outer Sheath | FR PVC, White (IEC 60332-1) |
Cable Diameter (Oval) | 5.70 ± 0.30 mm |
Jacket Thickness | 0.65 ± 0.10 mm |
Coaxial Cable | |
Inner Conductor | Solid Copper |
Number of Conductors | 1 |
Dielectric Material & Color | HDPE, Natural |
Dielectric Diameter | 1.35 ± 0.10 mm |
Dielectric Thickness | 0.42 ± 0.05 mm |
Shield – Copper Colour | Yes |
Shield – Tape | Aluminum Mylar Tape |
Shield – Braiding | Alloy Braiding |
Coax Jacket Material, Color & Thickness | PVC, Black, 0.40 ± 0.05 mm |
Braiding Details | |
Diameter of Braid Wire | 0.115 ± 0.01 mm |
Number of Braiding Wires | 48 |
Insulated Cores (Power Cores) | |
Core Colors | Red, Yellow, Grey |
Conductor – Number of Strands | 7 |
Conductor – Strand Diameter | 0.14 mm |
Insulation Material | PVC Type A |
Insulation Thickness (Average) | 0.40 ± 0.05 mm |
Conductor Diameter (Average) | 1.20 ± 0.10 mm |
General
- Cable ShapeRound
- Outer MaterialPolyvinyl Chloride (PVC)
- Product ColourGrey
