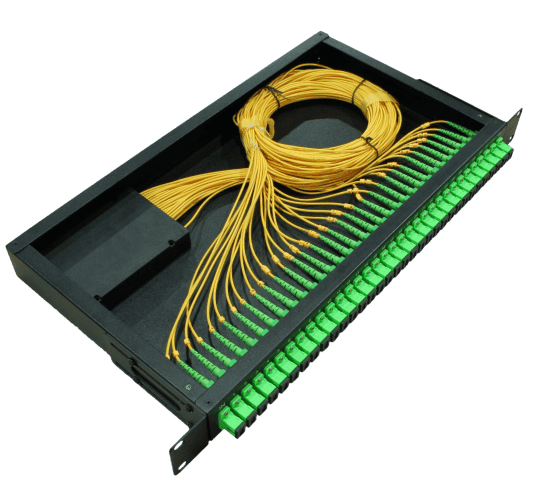

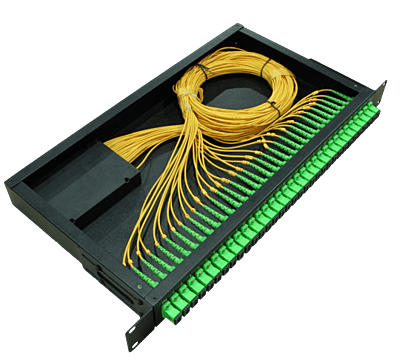

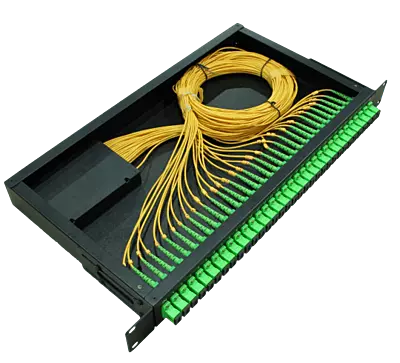

Digisol Channel SCS FTTH PLC(Planner Light Circuit) Splitter Rack Type SM SC PC Type 1×16

Splitter Type & Ratio
This is a 1×16 PLC (Planar Lightwave Circuit) splitter: one input fiber, 16 output fibers. Used to split one optical signal into sixteen.

Rack‑Type Enclosure
The module is designed in rack form (rack‑mount style) which supports modular installation, maintenance, and easy cable management in optical distribution racks.

Fiber Mode
Single‑mode (SM) fiber. Used for long distance / high bandwidth optical networks.

Connector Type & Polish
SC connectors with PC polish (Physical Contact). Offers flat contact surface, decent return loss (though not as good as APC).

Standards Compliance
Meets Telcordia GR‑1209 and GR‑1221 standards. These cover environmental, mechanical, optical stability.

Low Insertion Loss
The product advertises “low insertion loss” as a key feature, implying small signal degradation from input to output.

Low Polarization Dependent Loss (PDL)
Keeps variation in performance minimal regardless of the polarization state of light; this helps signal consistency.

High Return Loss & Good Repeatability
Return loss (reflection back into source) is high (i.e. small reflections), and performance across uses / installs is repeatable / consistent.

Wide Wavelength Range
Supports a broad range of optical wavelengths (useful in passive optical networks, where multiple wavelengths/wavelength windows may be used).

Excellent Channel‑to‑Channel Uniformity
Each of the 16 output channels shows uniform output power — differences between outputs are small.

Excellent Environmental Stability
The splitter is designed to maintain performance under temperature, humidity, and other environmental variations.

Excellent Mechanical Stability
Built to handle mechanical stress: fiber bending, vibrations, etc., with minimal impact on performance.

Modular Structure for Easy Operation
Because it’s rack‑type, it includes terminals/sub‑line functions, structured for easy wiring, splicing, and maintenance.

High Reliability
Designed for long life, stable operations in FTTH / PON / distribution networks.

Applications
Intended for FTTH (Fiber To The Home), PON networks, optical distribution frames, telecommunications infrastructure, where splitting a single feed to multiple subscribers is required.
