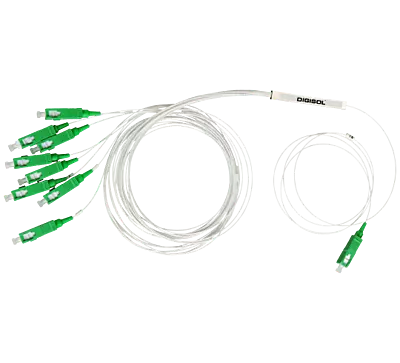

Digisol Channel SCS FTTH PLC Splitter Tube Type SM SC PC Type 1×2
Out of stock
Rs. 2,200.00
Rs. 2,999.00
Key Features
- Low insertion loss
- Low Polarization Dependent Loss
- High Reliability
- High Return Loss and good Repeatability
- Wide wavelength range
- Excellent channel to channel uniformity
- Excellent Environmental Stability
- Excellent Mechanical Stability
- Telcordia GR-1221 and GR-1209 compliant
Product Details
Product Details
Product Details
Applications
| Fiber to The Point (FTTX) | Fiber to The Home (FTTH) | Passive Optical Networks (PON) |
| Gigabit Passive Optical Networks (GPON) | LAN, WAN Metro Networks | Cable Television (CATV) |
| Fiber Optic Test Equipment | Database Transmit Broadband Net |
Technical Specifications
| Specification | Value |
|---|---|
| Wavelength (nm) | 1260 - 1650 |
| Return Loss (dB) | >= 50 |
| Directivity (dB) | >= 55 |
| Operating Temperature (Degree C) | -40 ~ +85 |
| Splits | 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits |
| Type | Bare/Connectorized Fiber jacketing outside boxes 2mm Metallic tube type module |
| Connector Options | SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC |
| Other | Custom connector configurations and combinations |
