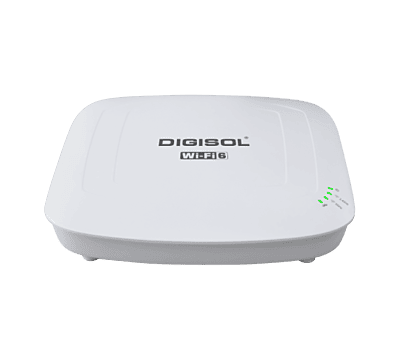

Digisol Indoor 802.11ax Wi-Fi6 4×4 PoE Enterprise Access Point – DG-WM600-X4
Key Features
Enterprise-Grade Wi-Fi 6 Access Point – Entry-level indoor 802.11ax wireless access point designed for reliable performance.
Advanced User Management – Enables fine-grained wireless user control for optimized network performance.
Enhanced Security – Built-in anti-theft protection for secure deployment.
Power over Ethernet (PoE) Support – Ensures seamless compatibility with PoE power sources.
Dual Operating Modes – Supports both Fit and Fat modes for flexible deployment.
High-Efficiency Connectivity – 4x4 MU-MIMO with Wave 2 technology for improved network capacity.
Target Wake Time (TWT) – Reduces power consumption for connected devices.
Multi-Gigabit Performance – Equipped with 2.5Gbps multi-gig LAN ports for high-speed wired connections.
Item | Specification |
|---|---|
Dimensions (L × W × D) | 201 × 195 × 41 mm |

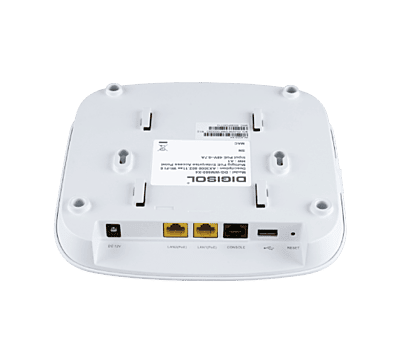

Physical Ports | 2 × 10/100/1000/2500 Mbps Ethernet ports, 1 × BLE module |
Console Port | 1 × RJ-45 |
USB Ports | 2 × USB 2.0 |
Power Supply | 802.3at PoE and external adapter (Input: 100–240V AC, Output: 12V DC) |
Maximum Power Consumption | <20W |
RF Ports | Built-in 2.4 GHz (4 dBi) and 5 GHz (5 dBi) antennas |
Working Frequency Bands | - 802.11b/g/n/ax: 2.4GHz–2.483GHz |
Modulation Technology | - 802.11b: DSS (CCK, DQPSK, DBPSK) |
Transmit Power | 2.4GHz: 23 dBm (Per Chain) |
Power Adjustment Granularity | 1 dBm |
Operating Temperature | –10°C to +55°C |
Storage Temperature | –40°C to +70°C |
Humidity Range | 5% to 95% (non-condensing) |
Protection Level | IP41 |
Size | 186 × 186 × 35.8 mm |
Software Specifications
Item | Feature |
|---|---|
Product Positioning | Indoor dual-band Wi-Fi 6 Access Point |
Supported Frequency Bands | 2.4 GHz and 5 GHz |
Total Bandwidth | 2975 Mbps |
Virtual AP (BSSID) | Up to 32 |
Concurrent Users | 300+ |
Spatial Streams | 2.4GHz: 2, 5GHz: 4 |
Dynamic Channel Adjustment (DCA) | Yes |
Transmit Power Control (TPC) | Yes |
Blind Spot Detection & Correction | Yes |
SSID Hiding | Yes |
RTS/CTS | Yes |
RF Environment Scanning | Yes |
Wireless & Broadband Features
Feature | Support |
|---|---|
Hybrid Access | Yes |
User Access Restrictions | Yes |
Link Integrity Check | Yes |
Airtime Fairness | Yes |
High-Density Optimization | Yes |
802.11ax Spatial Streams | 2.4GHz: 2, 5GHz: 4 |
80 MHz Bundling | Yes |
Frame Aggregation | A-MPDU & A-MSDU |
Maximum Likelihood Demodulation (MLD) | Yes |
Transmit Beamforming (TxBF) | Yes |
Maximum Ratio Combining (MRC) | Yes |
Space-Time Block Coding (STBC) | Yes |
Low-Density Parity-Check Code (LDPC) | Yes |
Security & Authentication
Feature | Support |
|---|---|
Encryption | 64/128-bit WEP, TKIP, CCMP |
802.11i | Yes |
WAPI | Yes |
MAC Address Authentication | Yes |
LDAP & PEAP Authentication | Yes |
WIDS/WIPS | Yes |
Anti-DoS Protection | Yes, for wireless management packets |
Frame Filtering & Blacklisting | Static & dynamic blacklist, whitelist |
User Isolation | Layer 2 AP forwarding suppression |
Scheduled SSID Activation | Yes |
Access Control for Free Resources | Yes |
Wireless SAVI (Source Address Validation Improvement) | Yes |
ACL (Access Control List) | MAC, IPv4, IPv6 |
Secure AP Access Control | MAC authentication, password authentication, digital certificate authentication |
802.11W (Management Frame Encryption) | Yes |
Network & Forwarding Features
Feature | Support |
|---|---|
IP Address Configuration | Static or DHCP |
IPv6 Forwarding | Yes |
IPv6 Portal | Yes |
Local Forwarding | Yes |
Multicast Optimization | IGMP Snooping |
Roaming & AP Switching | Yes (based on signal strength, bit error rate, RSSI, S/N) |
Wireless Distribution System (WDS) | Yes |
Quality of Service (QoS)
Feature | Support |
|---|---|
WMM (Wi-Fi Multimedia) | Yes |
Priority Mapping | Ethernet 802.1P & wireless priorities |
QoS Policy Mapping | SSID/VLAN-based, data-stream-based |
Packet Filtering & Traffic Classification | MAC, IPv4, IPv6 |
Load Balancing | Based on user count, traffic, and frequency bands |
Bandwidth Limiting | Per AP, SSID, terminal, or data stream |
Call Admission Control (CAC) | Based on user count |
Power Saving Mode | Yes |
Automatic AP Emergency Mode | Yes |
Multicast to Unicast Conversion | Yes |
BYOD Support (Device Identification) | Yes |
Management & Maintenance
Feature | Support |
|---|---|
Network Management | Centralized via AC (supports Fit & Fat modes) |
Local & Remote Maintenance | Yes |
Logging & Monitoring | Local logs, Syslog, exportable logs |
Alarms & Fault Detection | Yes |
Performance & Traffic Statistics | Yes |
Mode Switching (Fit/Fat) | AP can switch between Fit and Fat modes via AC, control port, or Telnet |
Remote Probe Analysis | Yes |
Dual-Image (Dual OS) Backup | Yes |
Watchdog Support | Yes |
General
- Ethernet LAN (RJ-45) ports1
- Networking StandardsIEEE 802.11ax
