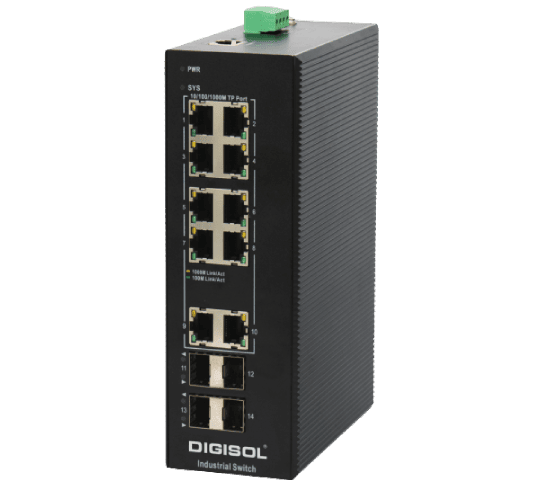

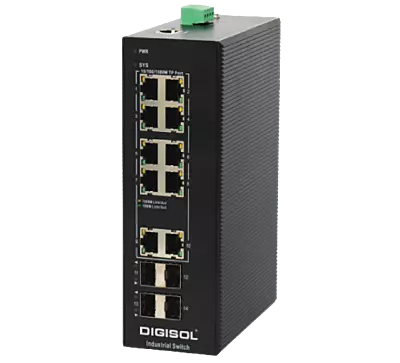

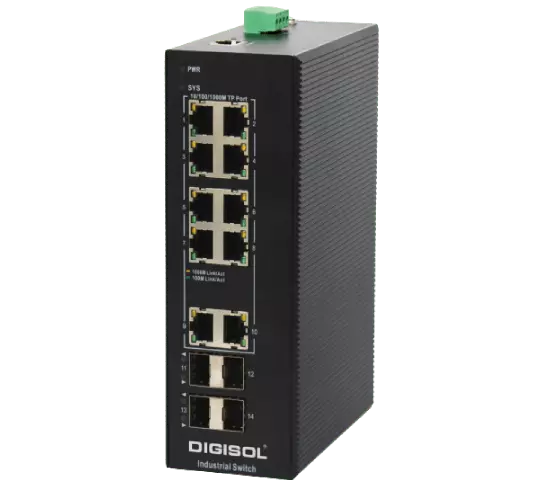

DIGISOL Managed Industrial Switch with 4 Gigabit SFP Ports and 10 Gigabit TX Ports – DG-IS4514E
Key Features
Wide Operating Temperature Range – Designed to perform reliably in extreme environments.
Advanced Hardware Architecture – Optimized for high performance and efficiency.
High Port Density – Industry-leading connectivity options for enhanced scalability.
Versatile Service Capabilities – Supports a variety of networking applications.
Comprehensive IPv6 Support – Ensures seamless integration with modern network infrastructures.
Robust Security Mechanism – Implements advanced security protocols for data protection.
IP40 & 6KV Lightning Protection – Durable enclosure with high-level surge protection for maximum reliability.
Technical Specifications
Model: DG-IS4514E – DIGISOL Managed Industrial Switch with 4 Gigabit SFP Ports and 10 Gigabit TX Ports
Hardware Specifications:
Interfaces: 10 GE TX ports, 4 100/1000M SFP ports
Console: 1 RJ45 port
Switching Capacity: 28 Gbps
Forwarding Rate: 21 Mpps
Dimensions (W × D × H): 188 × 130 × 64 mm
Weight (Empty): 1.24 Kg
Package Dimensions (W × D × H): 242 × 207 × 86 mm
Package Weight: 1.8 Kg
Power Consumption:
No Load: <12W
Full Load: 20W
Power Supply: Dual DC 12~55V
Total Output: 68.26W (1000BTU/H = 293W)
MTBF (Mean Time Between Failures): >800,000 Hours
Forwarding Mode: Store-and-Forward
Memory:
Flash: 16 MB
DRAM: 128 MB
MAC Address Table: 8K
Buffer Size: 4 MB
Jumbo Frame Support: 9K
Total SVI: 10
Operating Temperature: -40°C to 85°C
Note: Power adapter is not included in the package.
Key Features & Functionalities
VLAN Support
Supports up to 4K VLAN entries
GVRP and QinQ support
Private VLAN for improved security
Ring Protection & Network Redundancy
802.1D (STP), 802.1W (RSTP), and 802.1S (MSTP) support
BPDU protection, root protection, and ring protection
EAPS and ERPS for enhanced reliability
Multicast Management
MVR (Multicast VLAN Registration)
IGMP snooping with Fast Leave
Multicast group policy & limitation
2K multicast route table
IP Routing & DHCP
Default Gateway support
DHCP client and DHCP snooping
Quality of Service (QoS)
Traffic control and prioritization
802.1P / DSCP priority remarking
Multiple queuing algorithms (SP, WRR, SP+WRR)
IP-based QoS with ACL/VLAN/COS/DSCP prioritization
Traffic supervision and shaping
Packet drop and redirection capabilities
Advanced Security Features
L2/L3/L4-based ACL filtering
Suppression of broadcast, multicast, and unknown unicast traffic
Port isolation and security
IP+MAC+Port binding
IEEE 802.1x authentication
RADIUS and TACACS+ authentication
Command line hierarchical protection
High Reliability & Network Stability
Static and LACP link aggregation
Ethernet OAM support
ISSU (In-Service Software Upgrade)
Backup link redundancy
Management & Maintenance
Console, Telnet, and SSH 2.0 access
Zero Touch Provisioning (ZTP)
Web-based management (GUI)
SNMP v1/v2/v3 support
TFTP-based file upload and download
Remote Network Monitoring (RMON)
IPv6 Support
ICMPv6, DHCPv6, ACLv6
IPv6 Neighbor Discovery
Path MTU Discovery
MLD Snooping
Access Control Lists (ACLs)
L2/L3/L4 ACL support
IPv4 & IPv6 ACLs
VLAN-based ACL
Warranty: Subject to the terms and conditions specified in the DIGISOL Product Warranty.
Trademarks: DIGISOL logos and trademarks are the property of DIGISOL SYSTEMS LIMITED. Other trademarks, product, service, and company names belong to their respective owners.
Disclaimer: Information is subject to change without notice. The actual product appearance may differ from the images shown.
