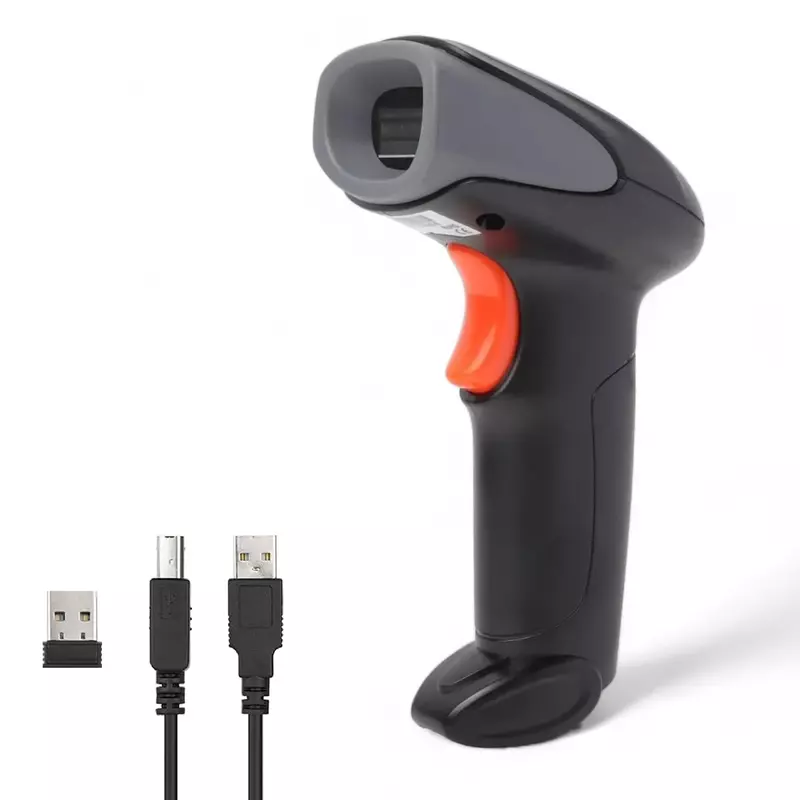

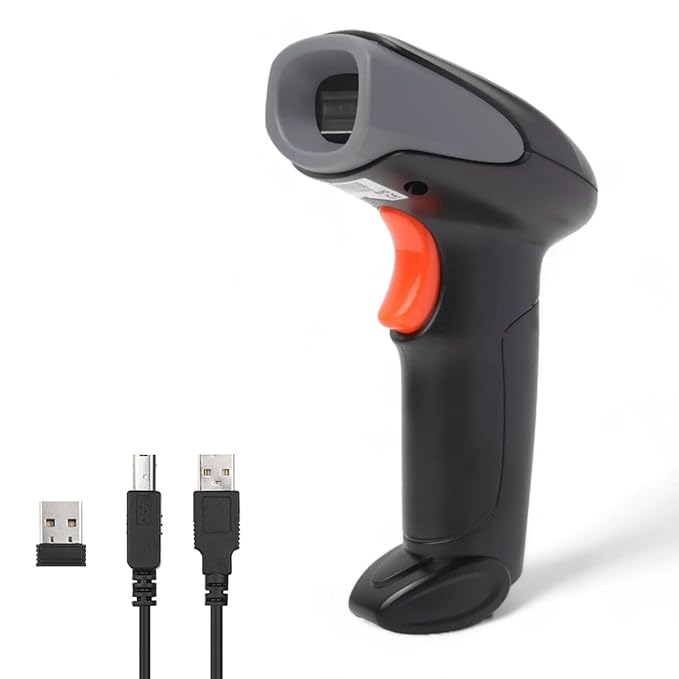

Atpos AT-1100LW 1D Wireless CCD Barcode Scanner | USB | 2.4Ghz Wireless
No driver is needed, plug and play.
32-bit ARM processor and a scan speed of 300 scans/sec.
The service life of the button reaches up to 5 million times.
Strong ABS Body with 1.8 meters of drop resistance | IP54 Rated.
Supports instant upload mode and storage mode.
2.4G Wireless communication distance outdoor 100m, indoor 80m.
Feature | Details |
|---|---|
Transmission Mode | 2.4G Wireless / Wired |
Scanning Type | Bi-directional |
Wireless Range | 100 meters |
Wired Cable Length | 1.5 meters |
CPU | ARM 32-bit Cortex |
Storage Capacity | 100,000 barcodes |
Battery Capacity | 1800mAh Lithium-ion |
Trigger Modes | Handheld, Continuous |
Light Source | 650nm Laser Diode (LD) |
Printing Contrast | ≥25% |
Indication | Buzzer & LED |
Resolution | 4 mil |
Scanning Width | 5–30 cm |
Decoding Speed | 300 scans/sec |
Bit Error Rate | 1/5 million |
Button Life | 5 million times |
Laser Life | 12,000 hours |
Scanning Angle | Rotor ±30°, Inclination ±55°, Declination ±60° |
Depth of Field (By Barcode Density)
Barcode Density | Depth of Field |
|---|---|
4 mil | 2mm – 85mm |
10 mil | 2mm – 320mm |
15.6 mil | 5mm – 580mm |
35 mil | 10mm – 900mm |
General
- Types Of ScannersBarcode Scanners
- Scanner Parameter2D + 1D
- Resolution4mil
