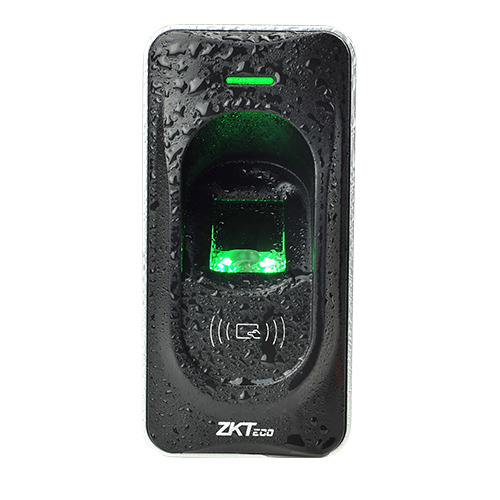

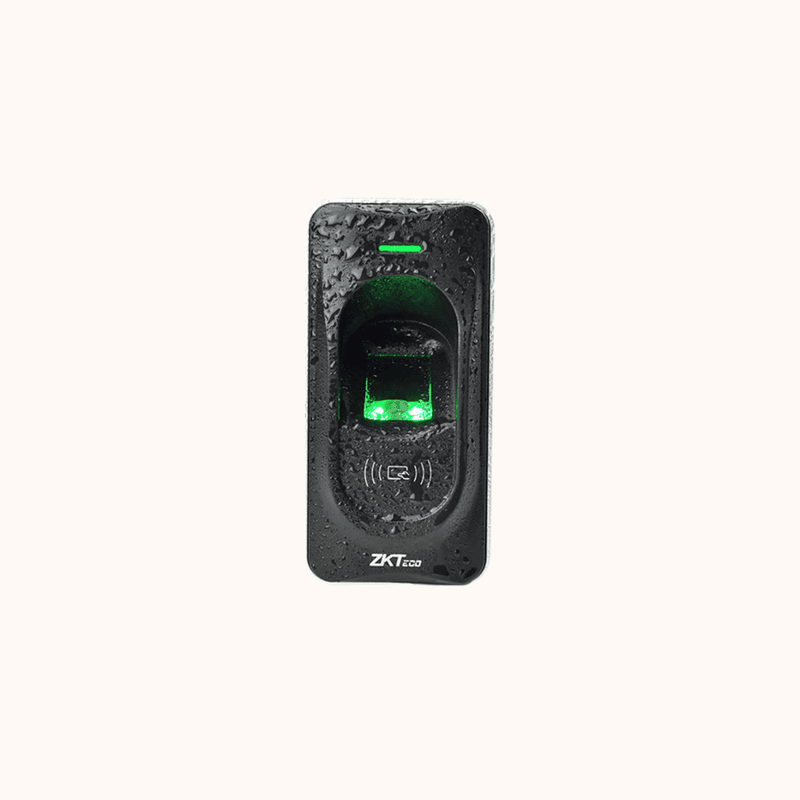

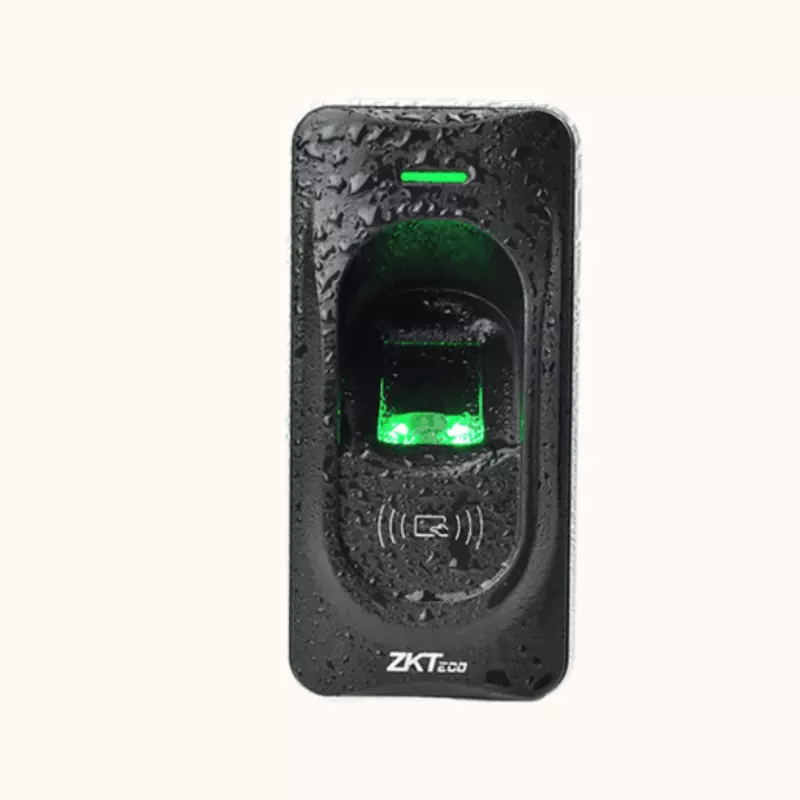

ESSL fingerprint (FR1200)
Specification | Details |
|---|
Brand | eSSL |
Model Number | FR1200 |
Backup Options | Pendrive |
LCD | Yes |
LCD Resolution | 1080p |
Scratch Proof | Yes |
Identification Method | Card |
ESSL Fingerprint Reader (FR1200) - Product Description | |
|---|---|
Model | FR1200 |
Type | Slave Fingerprint Reader |
Sensor | Optical fingerprint sensor |
User Verification | Fingerprint & Card |
Communication | RS485 (Connects with master device like F18, F21, etc.) |
Fingerprint Capacity | Managed by connected master device |
Card Support | 125kHz EM RFID card |
LED Indicators | Red and Green LEDs for status indication |
Audio Indicator | Beep sound |
Ingress Protection | IP65-rated for outdoor use |
Operating Temperature | -10°C to 50°C |
Operating Humidity | 20% - 80% |
Power Supply | 12V DC (supplied by master terminal) |
Dimensions | 50mm × 102mm × 37mm |
Installation | Wall mount, suitable for outdoor or indoor installation |
Application | Used with access control systems, time attendance devices |
Compatibility | Works with eSSL devices like F18, F21, F22, X990, etc. |
General
- Type Of ProductMulti-Biometric
- Operating Humidity20% -80%
- Finger Print Capacity2000 - 2999
- FARLess Then 0.0001%
- FRRLess then 1%
- Frequency1.0GHz
- Power Supply12 V
- Communication TypeUSB Disk
