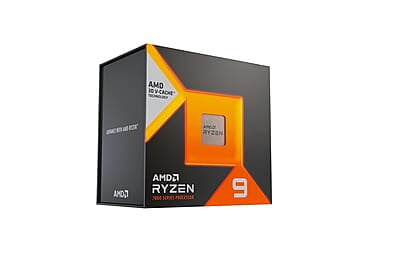

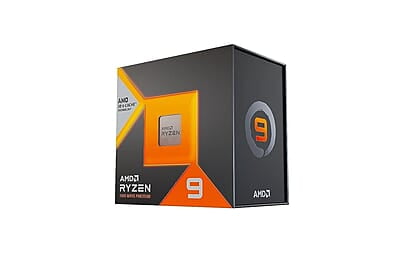

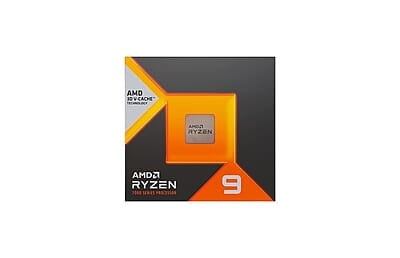

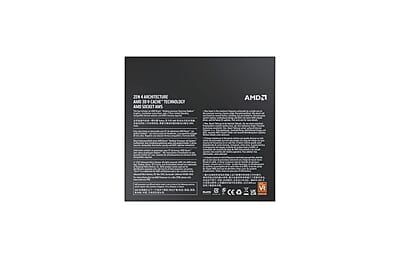

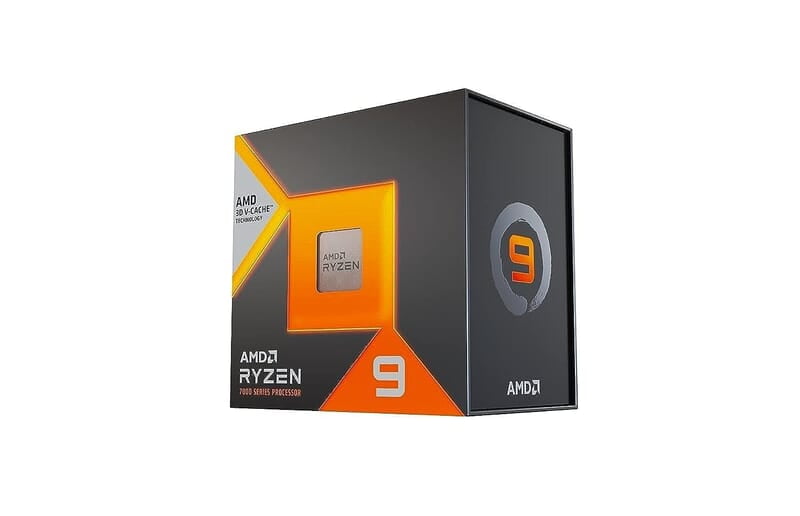

AMD Ryzen 9 7950X Desktop Processor (16 Cores, 32 Threads, up to 5.7 GHz, AM5) - 100-100000908WOF
Brand: AMD
Model: Ryzen 9 7950X (100-100000908WOF)
Cores / Threads: 16 Cores / 32 Threads
Clocks: 4.5 GHz base, up to 5.7 GHz boost
Cache: 80 MB total
Graphics: Integrated AMD Radeon Graphics
Socket: AM5, DDR5, PCIe 5.0
TDP: 170 W
Product Overview
The AMD Ryzen™ 9 7950X is a flagship Zen 4 desktop processor with 16 cores and 32 threads, a 4.5 GHz base clock and up to 5.7 GHz boost, and 80 MB of total cache (16 MB L2 + 64 MB L3). Built for the AM5 socket with a 170 W TDP, it is designed for high-end gaming, content creation and heavy multi-threaded workloads.
Key Features
- Brand: AMD
- Model: Ryzen 9 7950X (100-100000908WOF)
- Architecture: Zen 4 (TSMC 5 nm)
- Cores / Threads: 16 Cores, 32 Threads
- Base Clock: 4.5 GHz; Max Boost: up to 5.7 GHz
- Cache: 80 MB total (16 MB L2 + 64 MB L3)
- Integrated Graphics: AMD Radeon Graphics
- Memory: DDR5-5200, up to 128 GB, dual channel
- Expansion: PCIe 5.0
- TDP: 170 W
- Socket: AM5 (600-series chipsets)
- Cooler: Not included
Performance
With 16 Zen 4 cores boosting to 5.7 GHz, the Ryzen 9 7950X delivers class-leading multi-threaded performance for rendering, streaming, compilation and demanding creative applications.
Platform & Compatibility
The AM5 socket supports 600-series motherboards, DDR5-5200 memory (up to 128 GB, dual channel) and PCIe 5.0 for the latest GPUs and NVMe SSDs. Integrated AMD Radeon Graphics provides display output without a discrete card.
Ideal For
- High-end gaming and streaming
- 3D rendering, video editing and content creation
- Workstation and productivity builds
- Enthusiast AM5 desktops
General
- CPU SocketAM5
- SeriesRyzen 9
- GenerationAMD 7000 Series
- Cores16 Core
- Speed4.0 GHz & Above
- Processor Count1
- Cache80 MB
CPU Details
- Socket TypeAM5
- Threads32 Threads
- Integrated GraphicsAMD Radeon Graphics
- TDP (W)170 W
- Max Boost Clock5.7 GHz
- Cooler IncludedNo
- Warranty Duration3 Years
Memory & Platform
- Memory TypeDDR5-5200
- Max Memory Supported128 GB
- Memory ChannelsDual Channel
- PCIe VersionPCIe 5.0
- Lithography5 nm
- Launch Year2022
