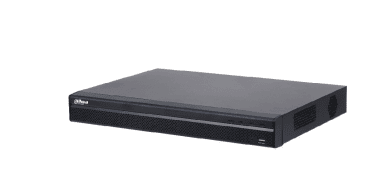

DHI-NVR4216-4KS2/L 16 Channel 1U 2HDDs Network Video Recorder
· New 4.0 user interface, Security baseline 2.1
· H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
· Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
· Supports mainstream cameras of ONVIF and RTSP protocols
· P2P remote surveillance, video play on mobile device
Feature | Description |
|---|---|
Product Name | DHI-NVR4216-4KS2/L 16 Channel 1U 2HDDs Network Video Recorder |
Model Number | DHI-NVR4216-4KS2/L |
Form Factor | 1U Rackmount |
Video Inputs | 16 channels (supports up to 16 IP cameras) |
Max Resolution | Up to 4K (3840x2160) resolution for video recording |
Video Output | HDMI (up to 4K) and VGA (up to 1920x1080) |
Storage Capacity | Supports 2x HDDs (maximum 10TB per HDD, total 20TB) |
Recording Resolution | 4K, 8MP, 5MP, 4MP, 3MP, 2MP, 1080P, etc. |
Video Compression | H.265+/H.265/H.264+/H.264 |
Network Interface | 1 x RJ-45 10/100/1000 Mbps Ethernet port |
Audio Input/Output | 1 x RCA Input (audio recording from camera with microphone support), 1 x RCA Output (for audio out) |
Power Supply | DC 12V, 5A |
Power Consumption | Approximately 12W (without HDDs) |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Management | Supports HDD health management, RAID support (RAID 0/1), and automatic overwriting feature for continuous recording |
Control | Remote control via web browser, mobile app (Dahua DMSS), and NVR system control interface |
Recording Modes | Manual, schedule, motion detection, alarm-triggered |
Compression Storage Efficiency | H.265+ compression for higher storage efficiency and reduced bandwidth usage |
Bandwidth | Up to 160 Mbps incoming bandwidth for recording, 80 Mbps outgoing bandwidth for streaming and data retrieval |
Operating System | Embedded Linux operating system |
Backup Options | Supports backup via USB, network, or HDD |
Security Features | Password protection, data encryption, and user access control for secure operation |
Software Compatibility | Compatible with Dahua DSS and other third-party software for management and monitoring |
Dimensions | 17.3 x 10.6 x 1.7 inches (440 mm x 270 mm x 44 mm) |
Weight | Approximately 3.2 kg (7 lbs) |
Warranty | 3-year limited warranty (depending on the manufacturer and reseller) |
Operating Humidity | 10% to 90% RH (non-condensing) |
User Interface | Local display interface, web browser interface (for remote access), mobile application interface (iOS/Android) |
Mounting Options | Rack-mountable (1U size) |
Additional Features | - Motion detection & smart search capabilities |
- Supports video analytics for advanced features such as face detection, perimeter protection, and line crossing detection | |
- Dual streaming for both local and remote access to live footage | |
- Supports up to 16 channels of simultaneous video playback |
