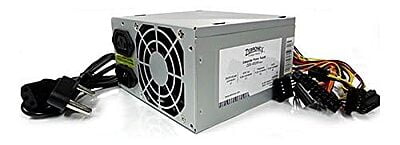

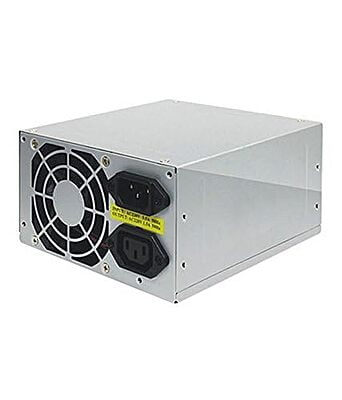

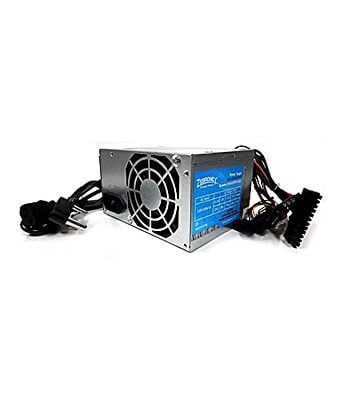

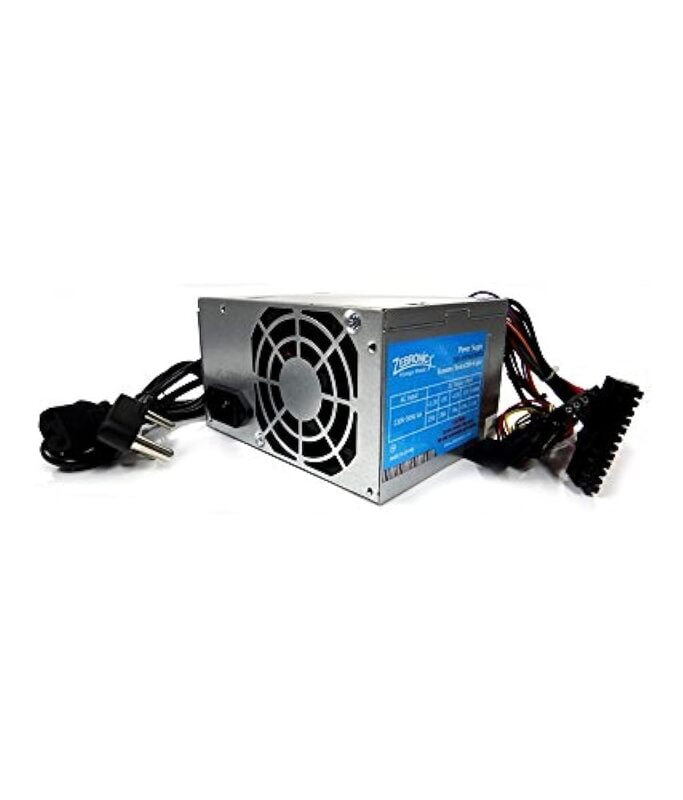

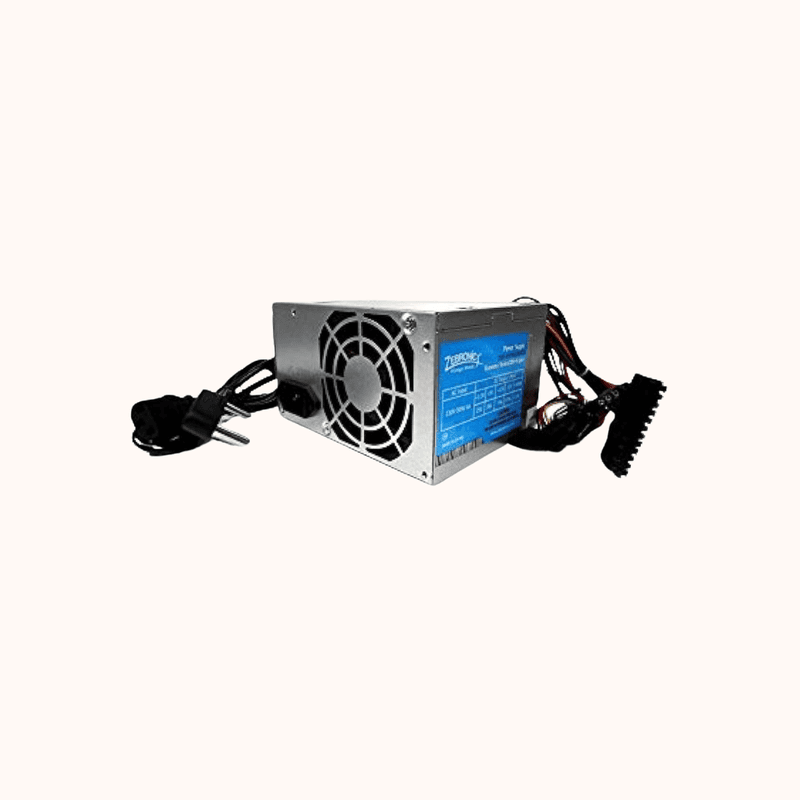

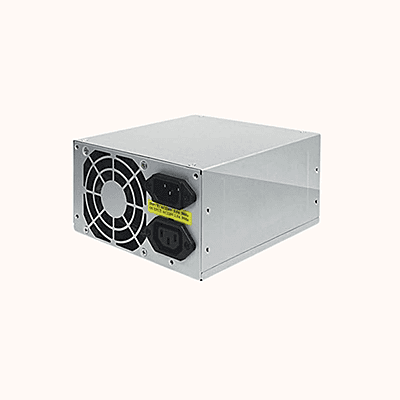

ZEBRONICS Power Supply 450W (ZEB-N450W-DSATA)
Feature | Specification |
---|---|
Brand | Zebronics |
Model | ZEB-N450W-DSATA |
Type | ATX Power Supply Unit (PSU) |
Form Factor | Standard ATX |
Attribute | Details |
---|---|
Input Voltage | 230V AC ±10%, 50Hz |
Input Current | 6A |
Output Wattage | 450W |
Output Voltages | +3.3V, +5V, +12V, -12V, +5VSB |
+3.3V Output | 25A |
+5V Output | 38A |
+12V Output | 15A |
-12V Output | 0.8A |
+5VSB Output | 2.0A |
Cooling Fan | 80mm Exhaust Fan |
Connectors | 1 x 20+4 Pin ATX, 1 x 4 Pin ATX 12V, 2 x 4 Pin Molex, 2 x SATA |
Cable Length | 24" (approx. 60 cm) |
Safety Protections | OVP (Over Voltage), OCP (Over Current), SCP (Short Circuit) |
Efficiency | Up to 80% |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 70°C |
Humidity | 20% to 90% (non-condensing) |
Certifications | CE, RoHS, BIS Certified |
General
- Wattage450 Watt
- PCIe Connector (6+2)1
- SATA Connector1
- Peripheral (4-Pin)1
