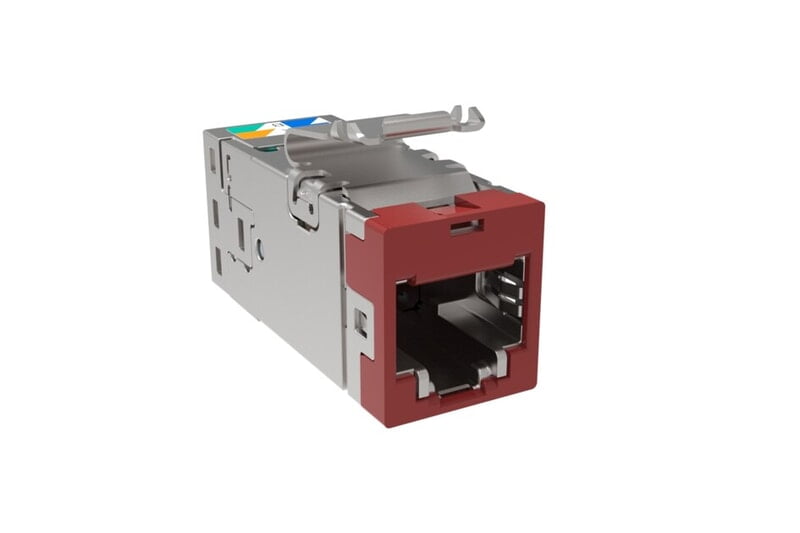

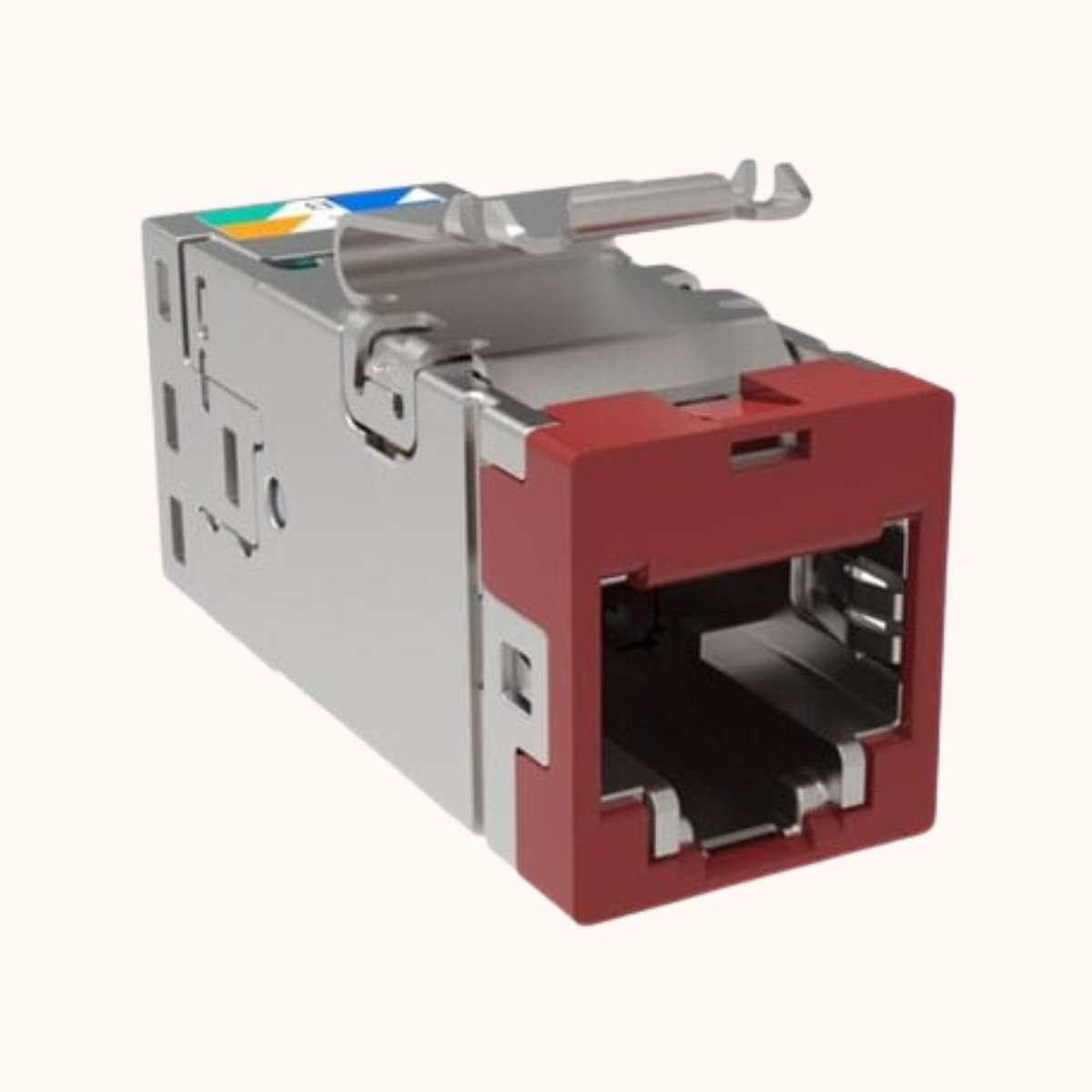

CommScope is pleased to announce the release of the Category 6A SLX Shielded Jack. The new SLX jack builds on the industry leading features of the existing AMP-TWIST shielded SL jacks. Support for a wide range of color options and built-in support for dust covers. Termination is done via the existing SL termination tool with Direct Screen Termination support making screen termination simple and secure. This jack supports AWG 22-26 solid and AWG 24-26 stranded cable. The SLX Cat 6A jack has been externally verified to meet Category 6A component compliance ISO/IEC 11801-1 Ed.1.0 (2017-11). This jack can replace all NETCONNECT® shielded Category 6A SL jacks therefore simplifying the NETCONNECT® shielded portfolio. The key features of the SLX Cat 6A jack include:.
Choose Quantity
+ Add to Cart Loading…
Product Details
Product Classification
Regional Availability
Asia | Australia/New Zealand | EMEA | Latin America
Portfolio
NETCONNECT®
Product Type
Modular jack
Product Series
SLX Series
General Specifications
ANSI/TIA Category
6A
Cable Type
Shielded
Color
Blue
Conductor Type
Solid | Stranded
Integrated Dust Cover Type
None
Mounting
SL Series faceplates and panels
Outlet Type
Standard
Termination Punchdowns, minimum
5 times
Termination Tool
SL Termination tool
Termination Type
IDC
Transmission Standards
ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA
Wiring
T568A | T568B
Dimensions
Panel Cutout, recommended
14.78 x 20.07 mm (0.58 x 0.79 in)
Panel Thickness, recommended
1.6 mm | 0.063 in
Height
16.13 mm | 0.635 in
Width
14.44 mm | 0.569 in
Depth
36.8 mm | 1.449 in
Compatible Cable Diameter, maximum
8.5 mm | 0.335 in
Compatible Insulated Conductor Diameter, maximum
1.6 mm | 0.063 in
Contact Plating Thickness
1.27 µm
Compatible Conductor Gauge, solid
26–22 AWG
Compatible Conductor Gauge, stranded
26–24 AWG
Electrical Specifications
Remote Powering
Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
PoE Durability
Supports IEEE 802.3bt Type 4 (90 W) applications after 3000 plug to jack mating cycles
