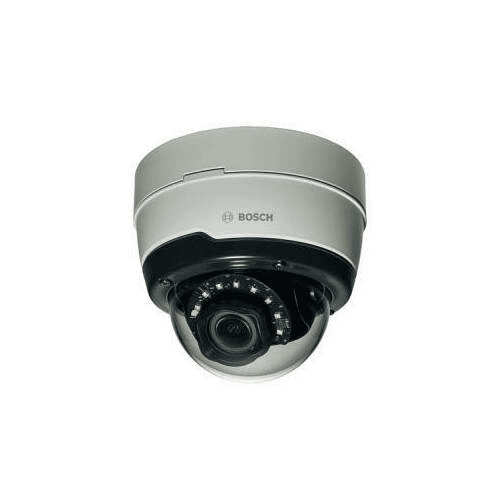

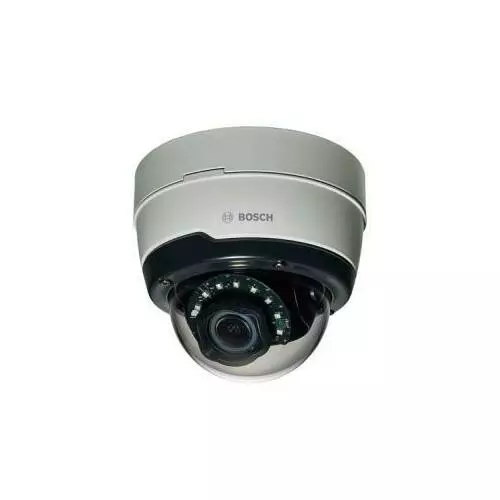

Bosch Fixed dome 2MP HDR 3-9mm - NDE-5502-AL
Feature | Details |
|---|---|
Model | NDE‑5502‑AL (Bosch FLEXIDOME IP starlight 5000i IR) |
Image Sensor | 1/2.8″ CMOS, 2 MP (1920 × 1080) |
Lens | Motorized varifocal 3–9 mm, f/1.6–2.8; automatic zoom/focus wizard |
Frame Rate | Up to 60 fps in 1080p |
Low-Light Performance | “Starlight” sensor: color sensitivity down to ≈0.0225 lx; B/W with IR |
IR Illumination | Integrated IR, up to ~45 m range (850 nm) |
HDR | Multiple exposure High Dynamic Range; up to 144 dB WDR |
Compression | H.265, H.264, MJPEG; multi-stream capable; intelligent streaming |
Analytics | Essential Video Analytics (IVA) |
Audio I/O | Two-way audio via external mic/line input/output |
Data Storage | microSDXC slot (up to 2 TB); pre-alarm recordings in RAM |
Protection Rating | IP66, IK10, NEMA 4X; vandal resistant dome bubble |
Operating Temp | –40 °C to +50 °C continuous; up to +74 °C per NEMA TS-2 standard |
Power Options | PoE (802.3af/at Class 3, ~7 W); 12 VDC; 24 VAC (6–10 W typical) |
Network Interface | 10/100 Mbps Ethernet via RJ-45, auto-MDIX |
Dimensions | Ø 145 × 131 mm (5.7 × 5.1 in) |
Weight | ≈1.10 kg |
Housing Material | Aluminum with polycarbonate dome |
Mounting Options | Surface, wall, ceiling, pole, corner (with accessories) |
IN/OUT Protocols | IPv4/6, HTTP/S, RTP/RTCP, ONVIF S/G, SNMP, iSCSI, FTP, SMTP, SSL/TLS |
General
- Placement SupportedOutdoor
- Case TypeDome
- Megapixel (Approx.)2 MP
- Mounting TypeCeiling/Pole
- Connectivity TechnologyWired
