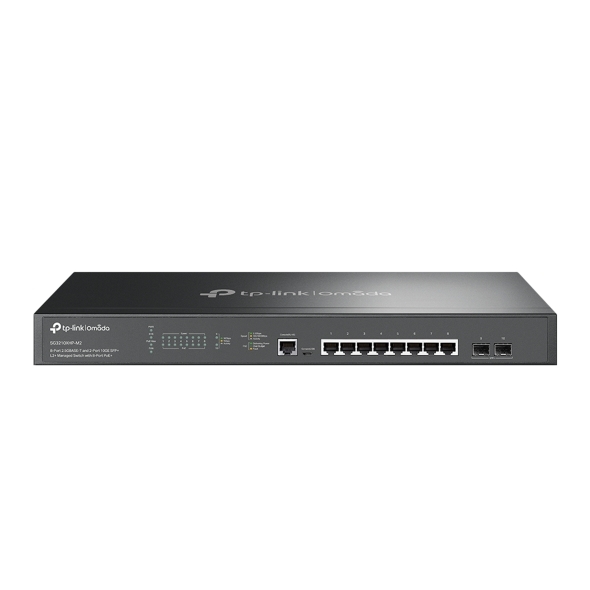

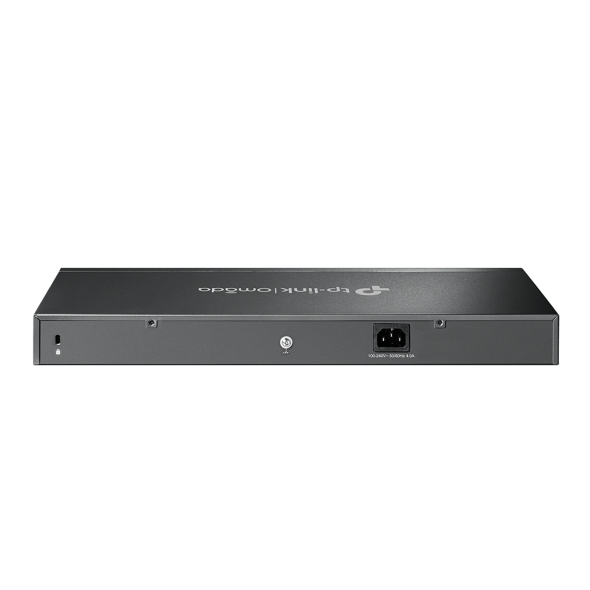

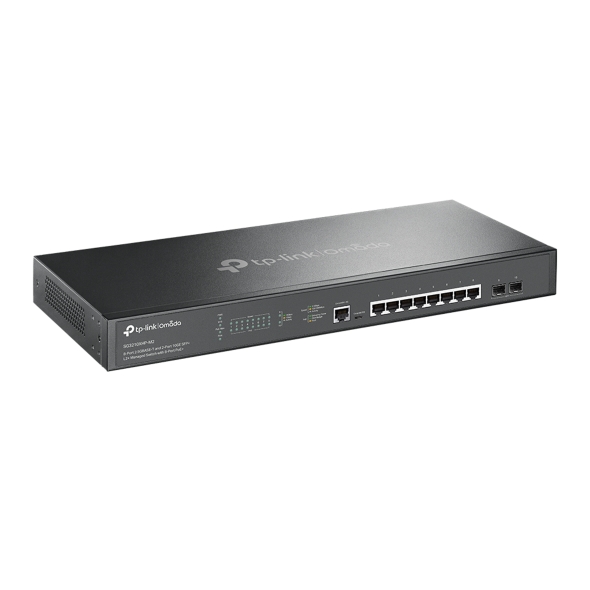

TP-Link Omada 8-Port L2+ Managed Switch ,SG3210XHP-M2
Feature | Description |
|---|---|
Multi-Gigabit Connectivity | 8× 2.5GBASE-T Ethernet ports for high-speed wired access |
PoE+ Support | All 8 ports support PoE+ (up to 30W per port) for powering APs, IP cameras, and more |
High-Speed Uplinks | 2× 10G SFP+ slots provide fast fiber uplink to core network or servers |
Advanced L2+ Features | Supports VLAN, ACL, QoS, IGMP Snooping, static routing, OAM, and DDM |
Omada SDN Integration | Cloud or local management via Omada Controller, web interface, or mobile app† |
Feature | Description |
|---|---|
2.5G PoE+ Ports for Wi-Fi 6 | 8× 2.5 Gbps PoE+ ports ideal for high-throughput Wi-Fi 6/6E access points |
10G SFP+ Uplink Slots | 2× 10 Gbps SFP+ ports provide lightning-fast uplink and non-blocking switching capacity |
240W PoE Budget | Total PoE+ power budget of 240W across 8× 802.3at/af-compliant ports |
Omada SDN Integration | Supports Zero-Touch Provisioning, cloud access, remote & multi-site management via Omada Controller |
Static Routing | Improves internal traffic handling and network efficiency |
Enterprise Security | Includes IP-MAC-Port Binding, ACL, Port Security, DoS Defense, DHCP Snooping, 802.1X, Radius, etc. |
Optimized QoS | L2/L3/L4 QoS and IGMP snooping enhance performance of voice and video applications |
General
- TypesManaged
- Switching Capacity80 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports8
- Rack MountingYes
