Tp-Link JetStream 28-Port 24-Port PoE+ (TL-SG3428MP V2)
Specification | Details |
|---|---|
Brand | TP-Link |
Model | JetStream 28-Port 24-Port PoE+ (TL-SG3428MP V2) |

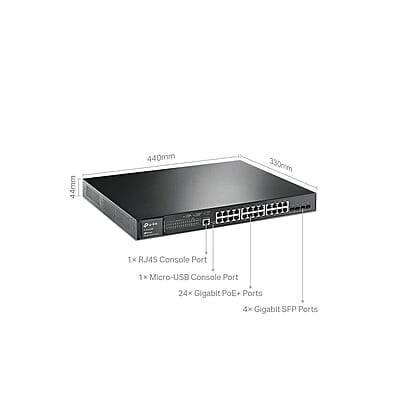

Ports | 28 ports (24 × RJ45, 4 × SFP) |
PoE+ Ports | 24 PoE+ ports, 370W total power |
Switching Capacity | 56 Gbps |
Feature | Details |
|---|---|
Brand | TP-Link |
Model | JetStream 28-Port 24-Port PoE+ (TL-SG3428MP V2) |
Ports | 28 total ports: 24 x 10/100/1000Mbps RJ45 ports, 4 x SFP ports |
PoE+ Ports | 24 PoE+ ports, providing up to 370W total power for PoE-enabled devices |
PoE Power Supply | 370W total PoE power budget, supports IEEE 802.3af/at PoE+ standards |
Switching Capacity | 56Gbps |
Packet Forwarding Rate | 41.67Mpps |
Layer | Layer 2 Managed Switch |
Management | Web-based management, SNMP, and CLI for easy setup and monitoring |
Security Features | Access control lists (ACL), DHCP snooping, and IP-MAC binding for network security |
Network Features | VLAN support, QoS, and LACP for efficient traffic management |
Power Over Ethernet | Ideal for IP cameras, access points, and other PoE devices |
Cooling | Fanless design for silent operation |
Form Factor | Rackmountable 1U design for space-saving installation |
Warranty | 5 Years manufacturer warranty |
General
- TypesManaged
- Switching Capacity56 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports24
- No. Of SFP Ports4
- No. Of RJ45 Ports24
- No. Of Power Supplies Supported1
- Rack MountingYes
