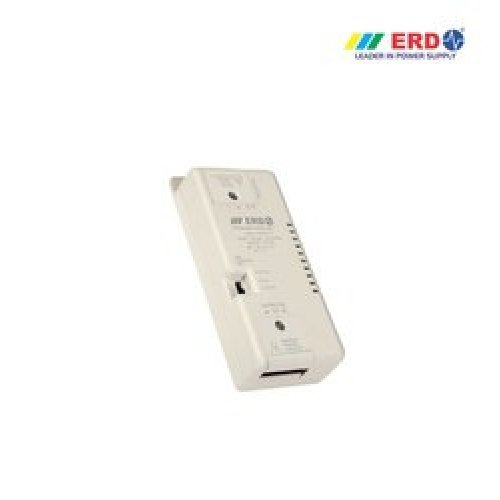

ERD CCTV Power Supply 12 V - 5Amp (PS-30T)
Feature | Specification |
|---|---|
Input Voltage | 150V to 240V AC, 50/60Hz |
Output Voltage | 12V DC |
Output Current | 5 Amp (Max.) |
Output Wattage | 60 Watt (Max.) |
Feature | Description |
|---|---|
BIS Approved | Certified as per Bureau of Indian Standards |
SMPS Design | Highly integrated SMPS switcher IC for stable performance |
Surge Protection | Protects against voltage surges |
Over Temperature Protection | Shuts down to prevent overheating |
Over Current/Voltage/Load Protection | Full-range protection from electrical faults |
High Efficiency | Low energy consumption |
Cable Compensation Switch | Allows voltage boosting for longer cables |
Low Ripple Voltage | <5% mV peak-to-peak for stable power output |
Wide Voltage Operation | Functions under low voltage; protects against high voltage |
Cabinet Material | FR grade PC cabinet in attractive white color |
Safety Terminals | Covered AC input & DC output terminals |
Mounting Style | Desktop type with wall-hanging hook |
Terminal Type | Screw-type block terminals for easy and secure installation |
General
- Wattage60 watt
- Connector TypeATX
