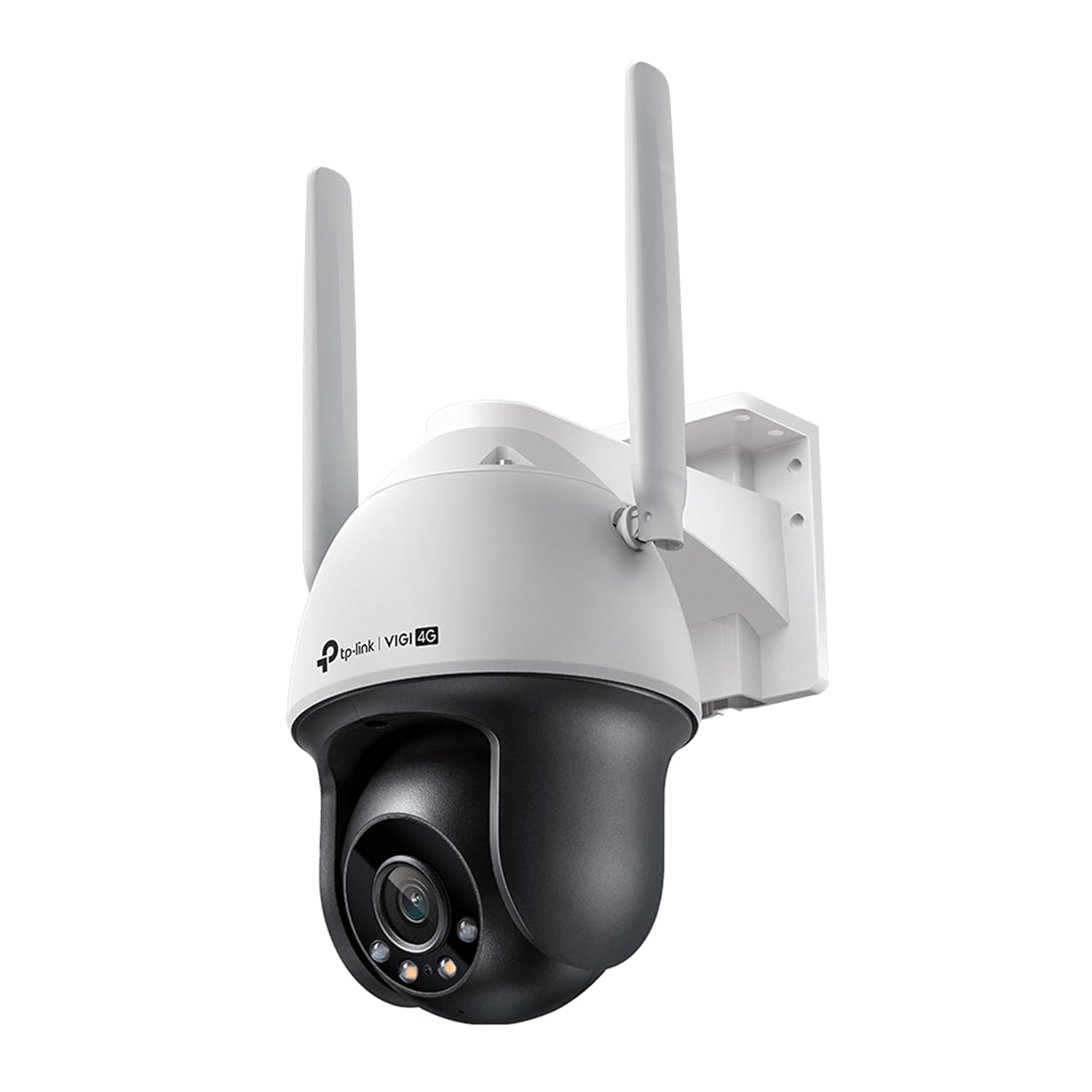

TP-Link VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera-C540-4G

CAMERA

Image Sensor

1/3.06” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified / Scheduled / Auto

LENS

Type

Fixed Focal Lens

Focal Length

4 mm

Aperture

F1.6

FOV

Horizontal: 80°, Vertical: 43°, Diagonal: 94°

Lens Mount

M12*0.5

DORI Distance

Detect: 80 m (262 ft), Observe: 33 m (109 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft)

PTZ (Pan-Tilt-Zoom)

Pan/Tilt Range

Pan: 0° to 348°, Tilt: 0° to 120°

Pan/Tilt Speed

Pan: 8°–44°/s (Configurable), Tilt: 8°–44°/s (Configurable), Preset: 44°/s

Manual Control Speed

Configurable from 8° to 35°/s

Presets

300

Patrol Scan

8 patrols, up to 8 presets per patrol

Power-off Memory

Yes (auto restore to previous position & lens status)

Park Action

Yes (Preset, Patrol Scan)

3D Positioning

Yes

Angle Adjustment

Pan: 0° to 348°, Tilt: 0° to 120°

ILLUMINATOR

IR LED

Quantity: 2, Range: 30 m, Wavelength: 850nm

White LED

Quantity: 2, Range: 30 m

Illuminator Control

Auto / Scheduled / Always On / Always Off

VIDEO

Max. Resolution

2560 × 1440
