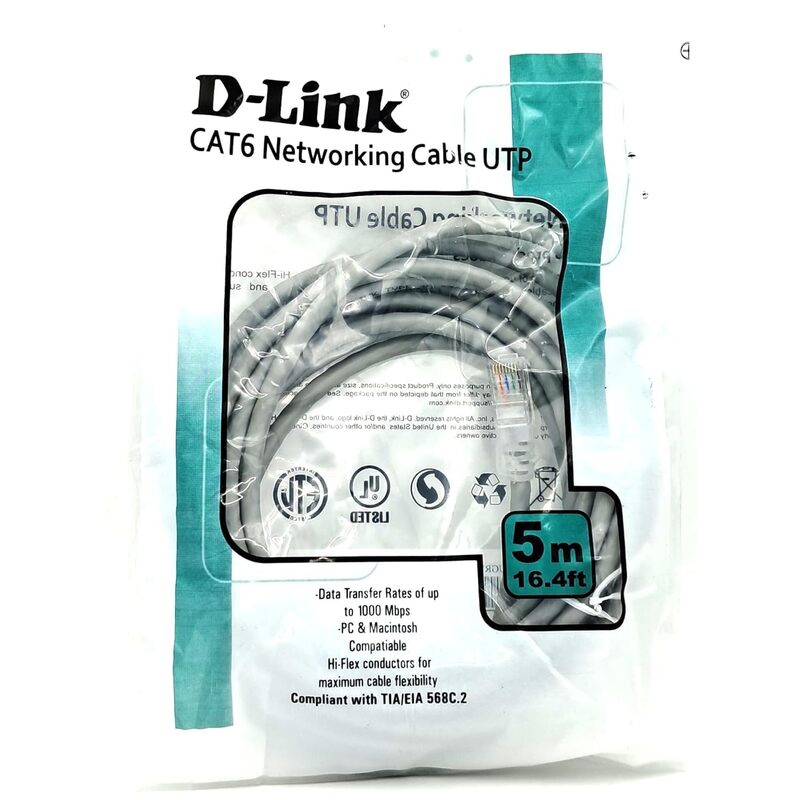

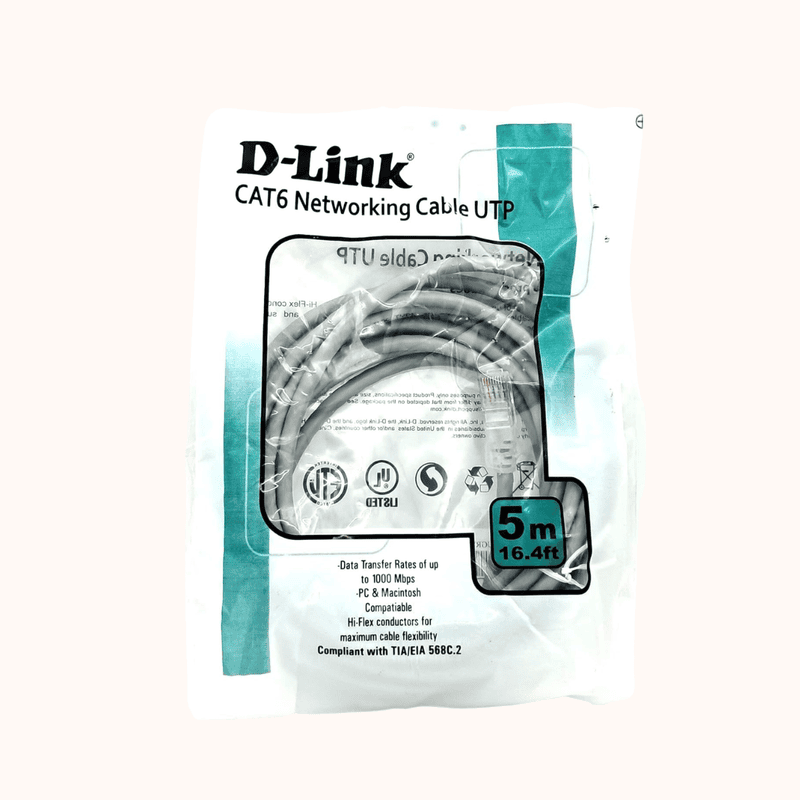

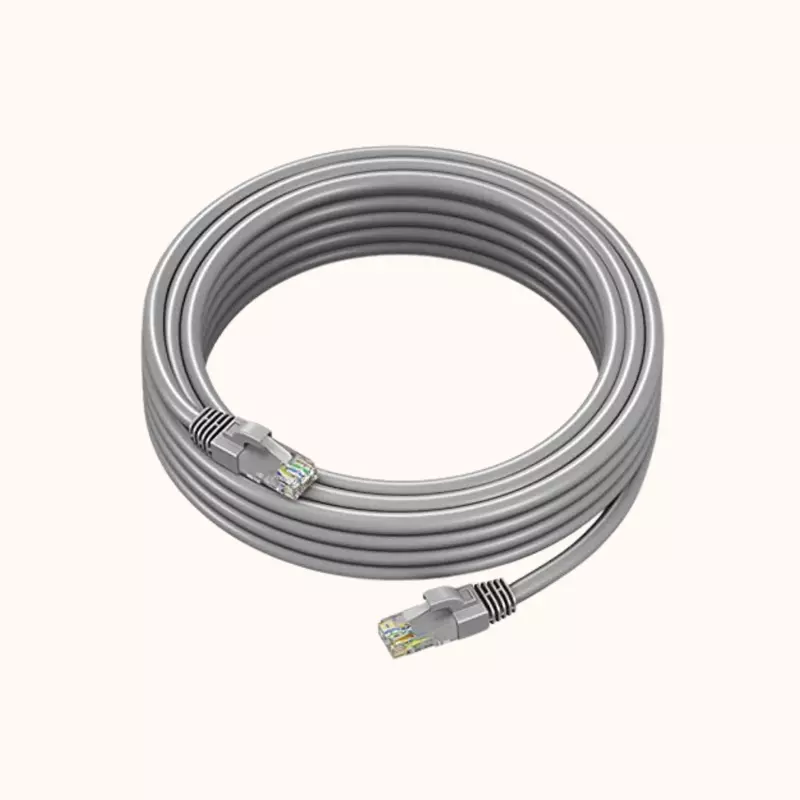

D-Link CAT6 Patch Cord 5 MTR (NCB 6AUGRYR1)
Cable Type: Cat6 UTP for high-speed network connectivity.
Length: 5 meters for extended reach.
Color: Grey with durable PVC construction.
Usage: Ideal for Ethernet networking in various environments.
Feature | Description |
|---|---|
Product Name | D-Link CAT6 Patch Cord 5 MTR (NCB 6AUGRYR1) |
Cable Type | Unshielded Twisted Pair (UTP) |
Category | Cat6 |
Conductor Material | Copper (24 AWG) |
Length | 5 meters |
Color | Grey |
Cable Insulation | PVC (Polyvinyl Chloride) |
Connector Type | RJ45 (8P8C) |
Connector Material | Gold-plated Contacts |
Bandwidth | Up to 250 MHz |
Transmission Speed | 1 Gigabit Ethernet (1GbE) |
Data Transfer Speed | Supports speeds up to 1Gbps |
Voltage Rating | 300V |
Operating Temperature | 0°C to 60°C |
Outer Jacket | PVC (Polyvinyl Chloride) |
Cable Type (Jacket) | Round cable |
Shielding | None (UTP - Unshielded Twisted Pair) |
Standard Compliance | Meets TIA/EIA-568-B.2, ISO/IEC 11801, RoHS Compliant |
Features | High performance, durable, and flexible |
Compatibility | Suitable for 1 Gigabit Ethernet networks, and backward compatible with lower-speed Ethernet systems |
Use Case | Used for connecting network devices such as switches, routers, computers, and other network components |
Fire Safety Rating | CM (Communication) - Suitable for general-purpose use inside buildings |
Cable Diameter | Approximately 5.5mm |
Max Cable Length | Up to 90 meters (for 1GbE performance) |
Warranty | 1 Year Manufacturer Warranty |
Certification | UL listed, RoHS Compliant, CE Certified |
Storage Temperature | -10°C to 70°C |
Package Content | 1 x 5m Cat6 UTP 24AWG Patch Cord |
Weight | 0.30 kg (approx.) |
