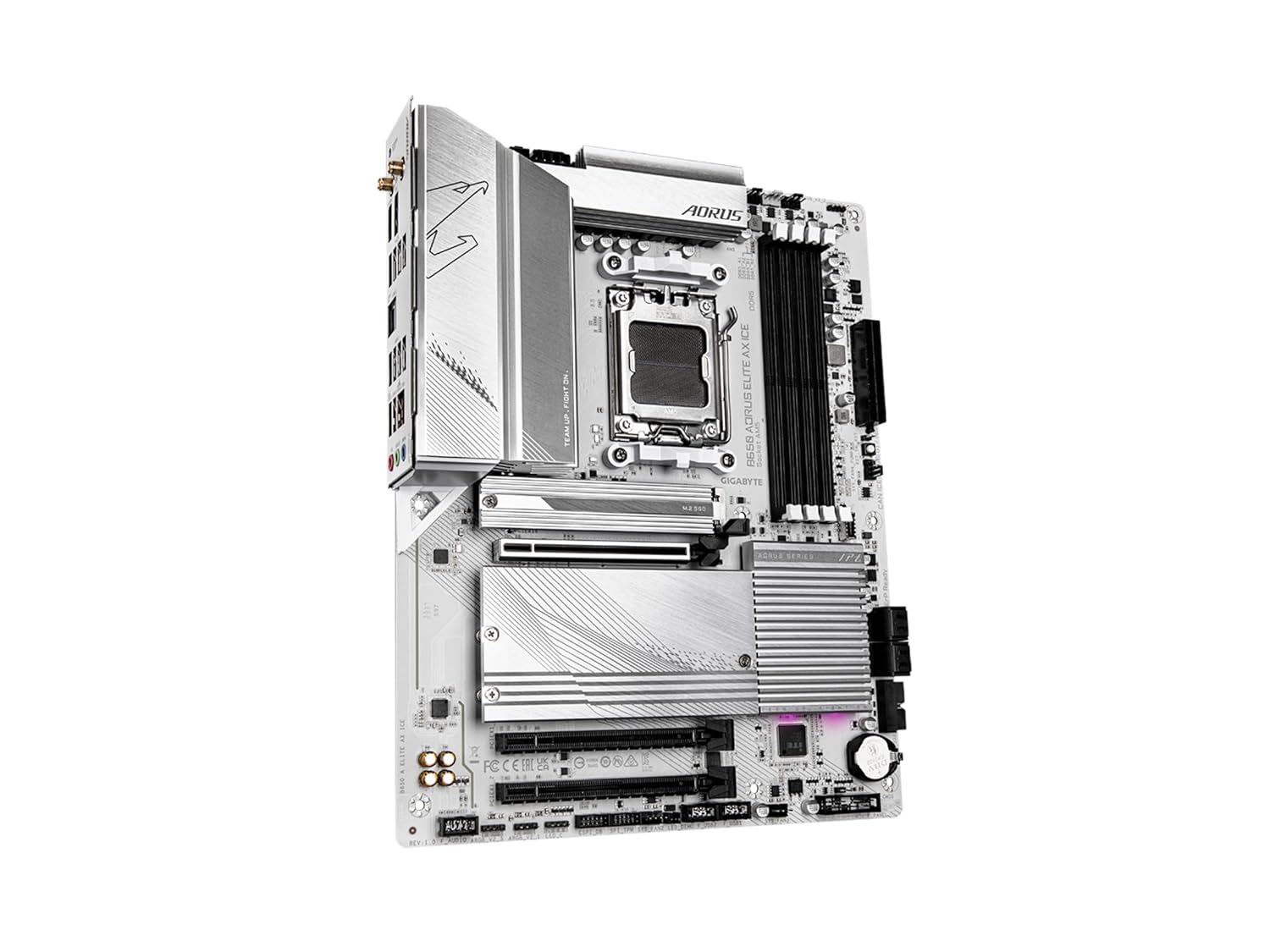

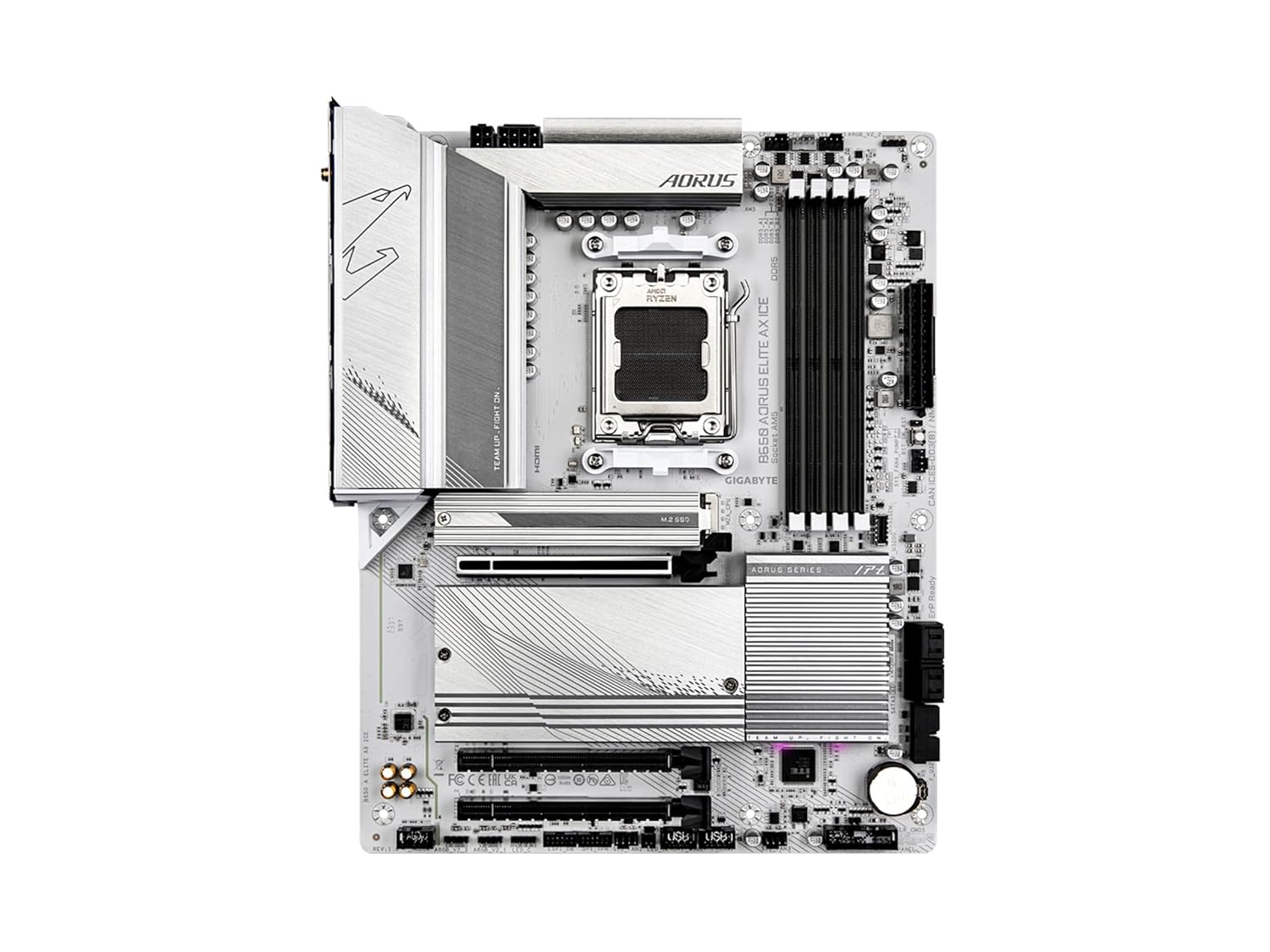

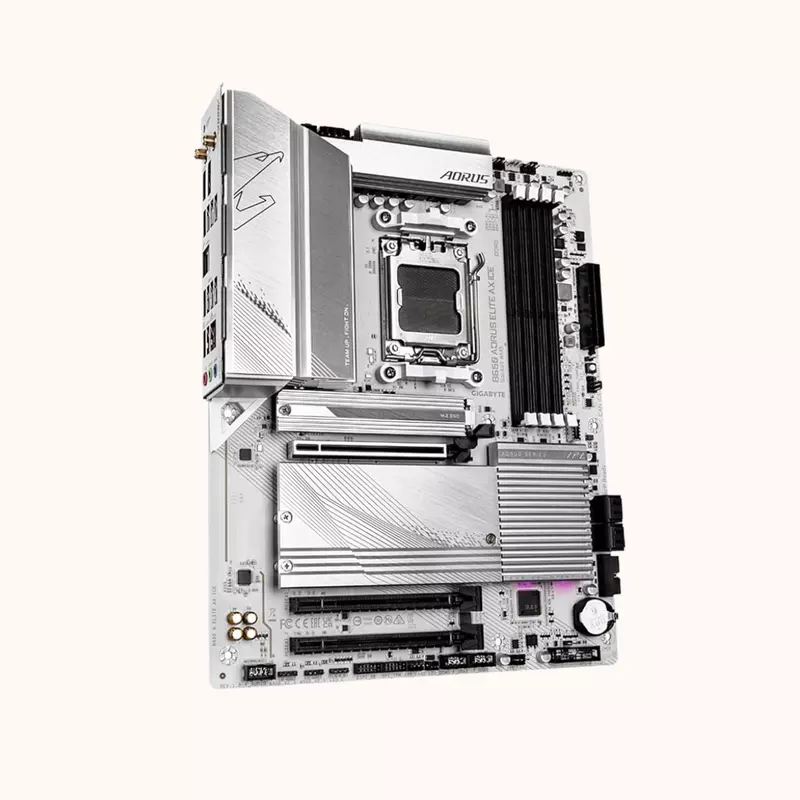

GIGABYTE A DDR5 Elite Ax Ice ATX Motherboard-B650M
The Gigabyte B650M Aorus Elite AX Ice is a Micro‑ATX motherboard built on AMD’s B650 chipset, featuring the AM5 socket. It supports DDR5 memory (dual‑channel), offers modern I/O and expansion (including PCIe 5.0, USB‑C, WiFi 6E, 2.5GbE Ethernet), and includes strong thermal design and ease‑of‑use features like EZ‑Latch and Q‑Flash Plus. The “Ice” version emphasizes a white/ice aesthetic with heatsinks and styling aimed at clean, bright builds.
CPU / Socket Compatibility
Uses AMD Socket AM5, supporting Ryzen 7000, Ryzen 8000, and Ryzen 9000 series processors.
Chipset
B650 chipset. This gives a good balance of features (PCIe 5.0, modern I/O) without the full cost of an X‑series high end board.
Form Factor
Micro‑ATX (often abbreviated mATX) size (~24.4 × 24.4 cm). Good for smaller cases while still offering solid expansion.

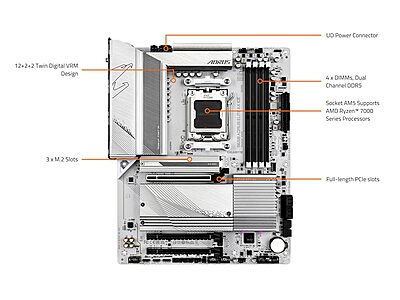

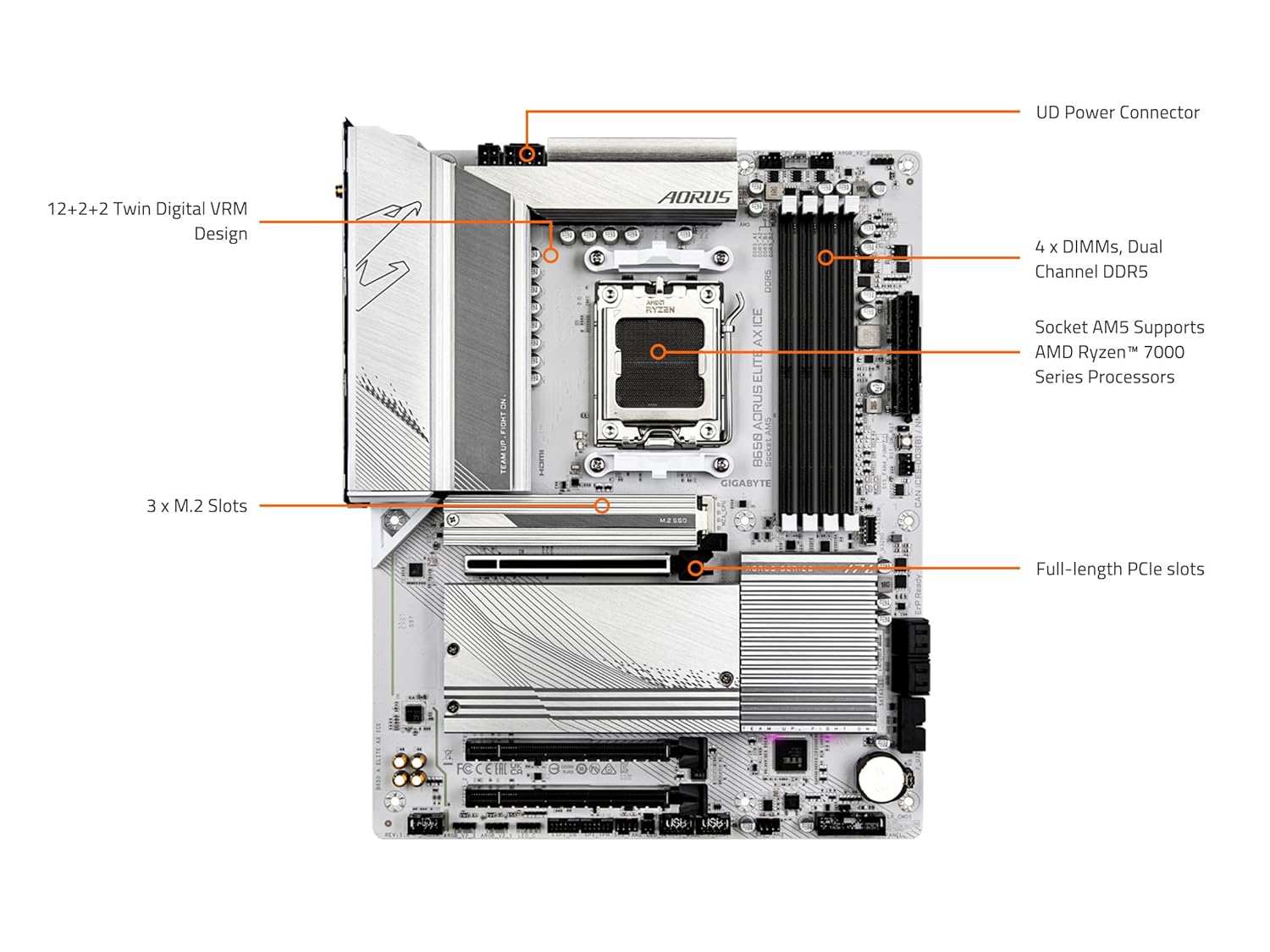

Power Delivery / VRM
Digital VRM design with twin 12+2+2 phases.
Uses 2× Copper PCB and high quality chokes/capacitors. Helps with stable power, overclocking headroom.
Memory Support
4× DDR5 DIMMs (dual channel). Up to ~192 GB memory in many sources.
Supports AMD EXPO & Intel XMP 3.0 profiles.
Very high overclocked speeds possible (DDR5 up to ~8000 MT/s in some reports).
Storage (M.2 & SATA)
Has 1 x PCIe 5.0 ×4 M.2 slot (supports M.2 even in long form 22110/25110) for ultra‑fast NVMe SSDs.
Another M.2 slot with PCIe 4.0 ×4.
Also supports 4× SATA III ports.
Expansion Slots / PCIe
1 × PCIe 4.0 x16 (full‑length) for GPU.
Additional PCIe x16 (operates in x4 mode) often for other devices.
Networking & Wireless
2.5 Gbps Ethernet LAN.
WiFi 6E and Bluetooth 5.3 via onboard module (Realtek RTL8852CE or equivalent).

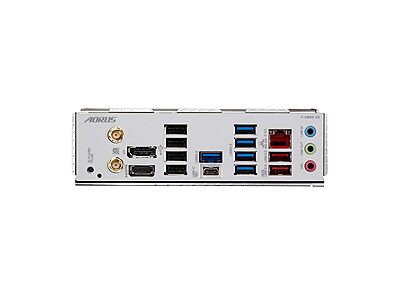

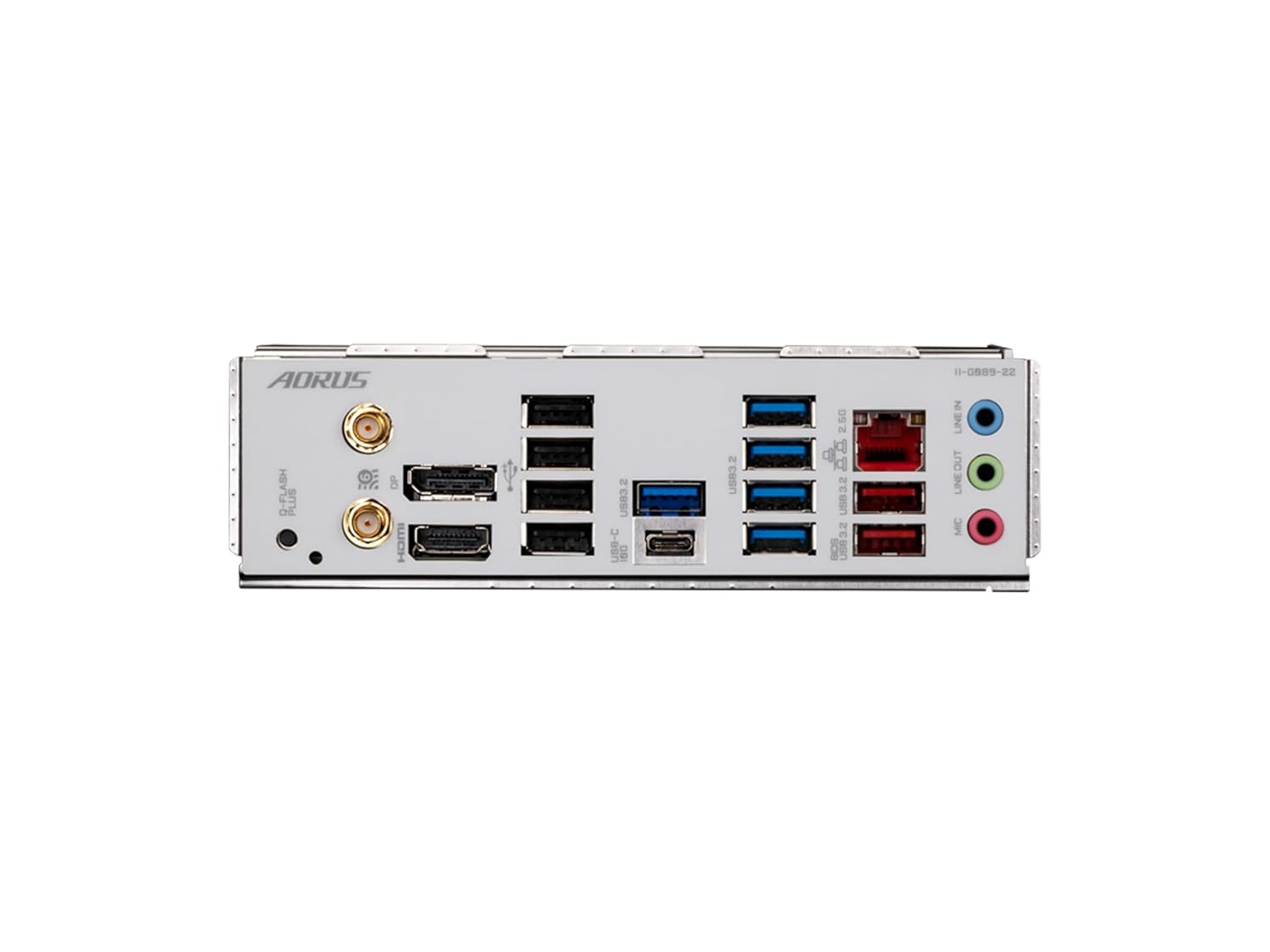

Rear / Front I/O
Rear ports include USB Type‑C (several, including possibly 10Gb/s), USB‑A (Gen 2, Gen 1), HDMI, DisplayPort.
Front header includes USB‑C 20Gb/s header, etc.
Audio
Realtek audio codec. High Definition audio 7.1‑channel support. Premium audio capacitors for better sound quality.
Thermal / Cooling Features
Enhanced thermal design: VRM thermal armor, heatpipe, big heatsinks.
M.2 Thermal Guard (to help prevent thermal throttling of SSDs) and screwless or easier mechanisms (like EZ‑Latch, which helps with installing/removing PCIe or M.2 without screws).
DIY / User Friendly Features
Q‑Flash Plus (update the BIOS even without CPU/GPU installed).
EZ‑Latch for PCIe slot and M.2 connectors (quick release, screwless) to simplify installations.
Aesthetics & Build
“Ice” theme: white / silver / bright styling in heatsinks, PCB or cover elements. Meant for builds with clean / white / aesthetic look.
RGB support: addressable and standard RGB headers.
Other Smart / Quality Features
Smart Fan 6: multiple fan headers, fan stop features, hybrid headers for different fan / pump configurations.
Shielded memory routing, improvements to latency and signal integrity.
Limitations / Things to Check
Even though it supports fast DDR5, getting stability at very high OC frequencies may require good cooling and compatible RAM. Users report BIOS update sometimes needed.
The board is mATX, so space / number of expansion slots is more limited than full ATX models.
Depending on region, the exact IO (USB‑C speeds, number of ports) and features (USB Gen numbers, etc.) may slightly vary. Always check specific variation.
Price might be higher than simpler B650 boards because of the extra features and the “Ice” aesthetic.
Processor
- RAM Memory TechnologyDDR5
- PlatformIntel
- Memory Slots4
- ChipsetB650
