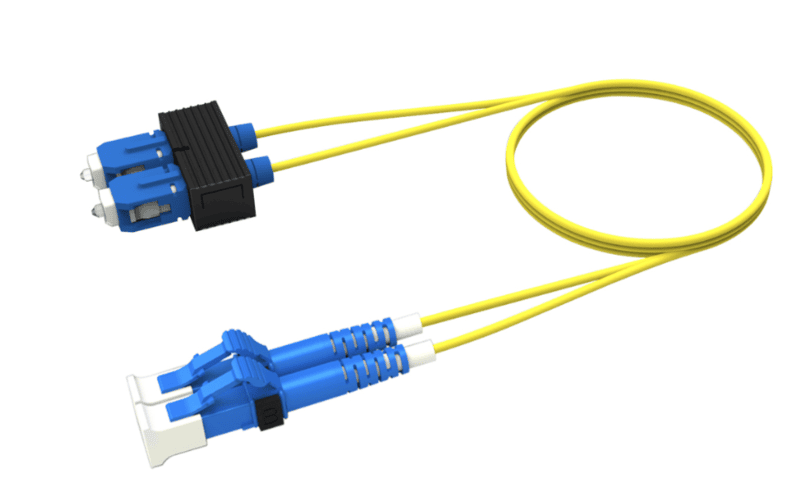

COMMSCOPE LC-SC SM FIBER PATCH CORD 5 MTR OS2 (FFWLCSC42-JXM005)
Type: LC-SC SM Fiber Patch Cord
Length: 5 meters
Fiber Type: Single-mode, OS2
Application: Ideal for long-distance, high-speed data transmission
Usage: Perfect for data centers and telecommunications networks
Performance: Low attenuation for reliable signal quality
Feature | Description |
|---|---|
Product Name | CommScope LC-SC SM Fiber Patch Cord 5 MTR OS2 (FFWLCSC42-JXM005) |
Model Number | FFWLCSC42-JXM005 |
Type | LC-SC Type Single-Mode (SM) Fiber Patch Cord |
Fiber Type | Single-Mode (SM) |
Connector Type | LC (Small form-factor) at one end and SC (Standard Connector) at the other |
Pigtail Length | 5 meters (5M) |
Number of Cores | 2 (Standard 2 fiber cables with LC-SC connectors) |
Fiber Diameter | 9/125 µm (Single-mode fiber, standard for SC connectors) |
Mode Type | OS2 (Optimized Single-Mode Fiber for long-distance transmission, high-bandwidth performance) |
Connector Color | Typically blue (LC) and green/yellow (SC) for SC connectors (depending on specific variant and fiber type) |
Applications | Suitable for long-distance, high-speed data transmission, including telecommunications and data centers |
Connector Material | High-quality plastic (typically PVC or LSZH) for connector housing and strain relief |
Cable Type | Single-mode fiber (SM) |
Fiber Mode | OS2 (optimized Single-mode Fiber for high-bandwidth, long-distance networking) |
Compatibility | Compatible with LC and SC connector ports in fiber optic networks and systems |
Operating Temperature | -20°C to 70°C (Typical range for fiber optic cables in standard environments) |
Insertion Loss | Low insertion loss for minimal signal degradation across the fiber link |
Return Loss | High return loss for better signal integrity |
Jacket Type | PVC or LSZH (Low Smoke Zero Halogen) jacket material depending on variant |
Fiber Performance | Optimized for long-distance transmission with low loss and consistent signal quality |
Max Fiber Diameter | Typically supports fiber cables with a diameter up to 3.0mm |
Termination Style | Factory-terminated LC and SC connectors for easy and reliable installation |
Cable Jacket Diameter | Typically around 3.0mm (Standard size for most fiber optic patch cords) |
Durability | Designed to withstand up to 500 insertion/extraction cycles with minimal degradation in performance |
Environmental Ratings | RoHS compliant, UL certified for safety and performance |
Storage Temperature | -40°C to 85°C |
Fiber Optic Standards | Compliant with industry standards for Single-mode fiber (SM) and low insertion loss performance |
Warranty | Manufacturer's warranty (typically 1 year or more, depending on the supplier) |
