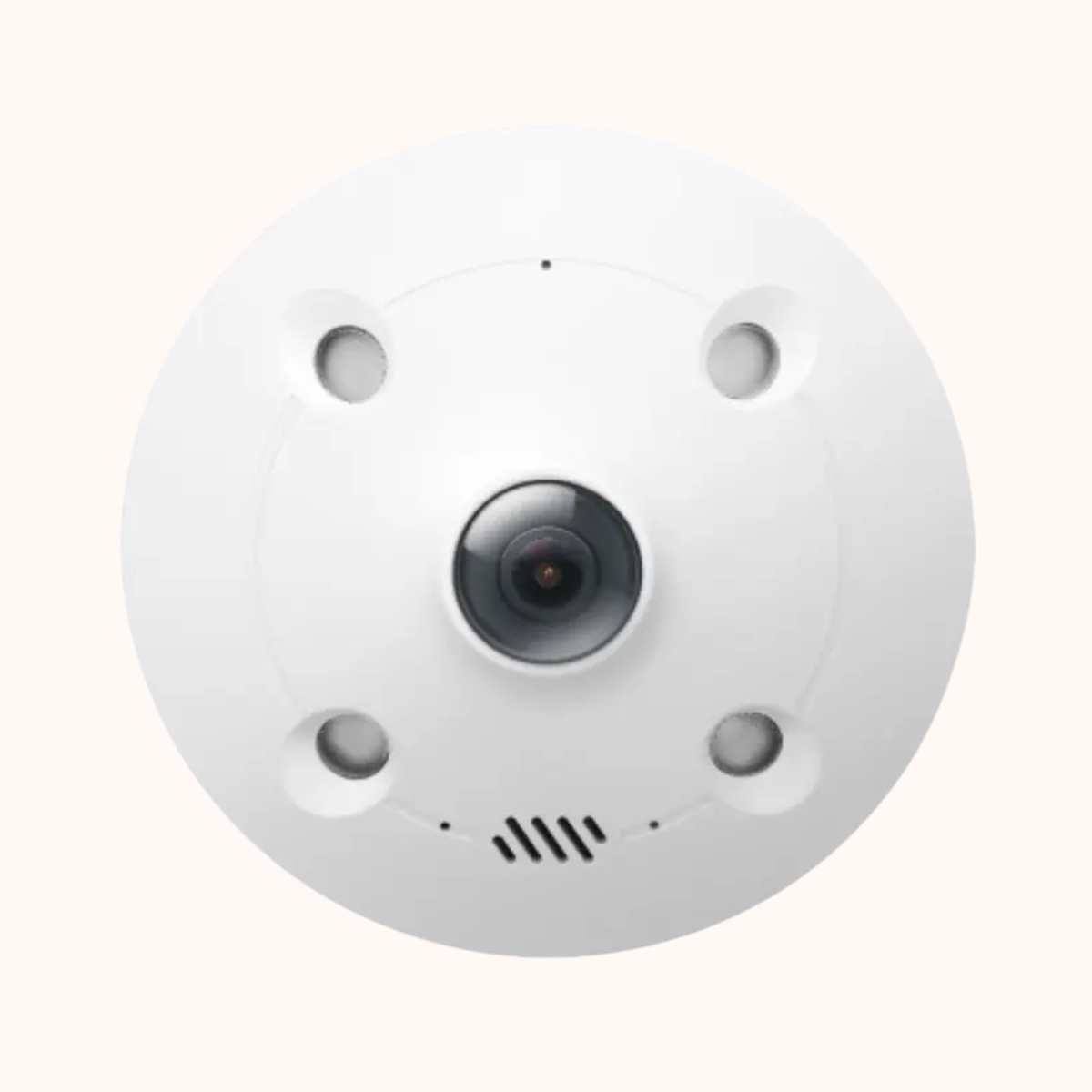

TP-Link VIGI 5MP IR Fisheye Network Camera-InSight S655I
Brand | TP Link |
Viewing Angle | 180 Degree(Horizontal) |
Lens Mount | M12*P0.5 |
Product Camera Resolution | 5MP |
Model Number | VIGI S655I |
Camera Technology | Fisheye Camera |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Focal Length | 1.44 mm |
Aperture | F2.0 |
Day/Night Mechanism | IR Cut Filter |
Max. Resolution | 2560 x 1920 |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Camera Overview
Feature | Specification |
|---|---|
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10,000 s |
Slow Shutter | Yes |
Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
Lens & Field of View
Type | Fixed Focal Lens |
|---|---|
Focal Length | 1.44 mm |
Aperture | F2.0 |
Field of View | Horizontal: 180° |
Lens Mount | M12 × P0.5 |
DORI Distance
Function | Distance |
|---|---|
Detect | 28.8 m (94 ft) |
Observe | 12 m (39 ft) |
Recognize | 5.7 m (19 ft) |
Identify | 2.8 m (9 ft) |
Fisheye Display & Mounting
Mounting Options | Ceiling Mount, Wall Mount, Pendant Mount |
|---|---|
Ceiling Display Modes | Fisheye, AR Dewarp, 180/360 Panorama, PTZ combos, Cylinder etc. |
Wall Display Modes | Fisheye, 360 Unwrap, 4/8 PTZ, Panoramic + PTZ |
Illumination
IR LED | Quantity: 4<br>Range: 30 m<br>Wavelength: 850 nm |
|---|---|
White LED | Not Available |
Control | Auto / Scheduled / Always On / Always Off |
Video
| Max. Resolution | 2560 × 1920 (≈5 MP) |
General
- Placement SupportedIndoor
- Case TypeFisheye
- Megapixel (Approx.)5 MP
- Mounting TypeCeiling/Wall
- AudioBuilt in Microphone & Speaker
- Connectivity TechnologyWired
- Wi-FiYes
- Power Over EthernetYes
