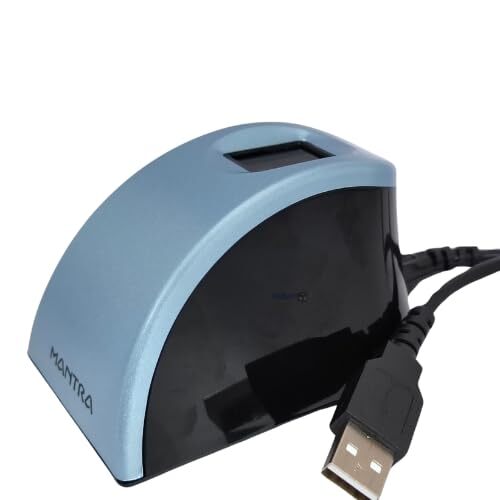

Mantra Mfs 110 L1 Biometric Single Fingerprint Scanner
500 DPI
USB 2.0
Encrypted Security
Multi-Platform
High Accuracy
Feature | Description |
|---|---|
Brand | Mantra |
Model | MFS 110 L1 |
Device Type | Single Fingerprint Scanner |
Sensor Type | Optical Fingerprint Scanner |
Certification | STQC Certified (Standardization Testing and Quality Certification) |
Scanning Area | 16mm x 18mm |
Resolution | 500 DPI |
Image Capture Format | 8-bit, 256 grayscale |
Platen Area | Scratch-resistant glass |
Biometric Standard Compliance | ANSI 378, ISO/IEC 19794-2, ISO/IEC 19794-4 |
Operating System Support | Windows, Linux, Android |
Connectivity Interface | USB 2.0 High Speed |
Power Supply | USB Powered |
Supported SDK | Available for Windows, Linux, and Android |
Encryption | Secure data encryption for enhanced security |
False Acceptance Rate (FAR) | < 0.001% |
False Rejection Rate (FRR) | < 1% |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 60°C |
Humidity Resistance | 10% - 90% RH (Non-condensing) |
Dimensions | Compact and lightweight design |
Weight | Approximately 200 grams |
Usage Applications | Aadhaar Authentication, Banking, E-KYC, Access Control, Attendance Management, Government Projects |
Compliance & Standards | UIDAI Certified for Aadhaar-based authentication |
Warranty | Standard manufacturer warranty |
General
- Type Of ProductMulti-Biometric
- Operating Humidity20% -80%
- FARLess Then 0.0001%
- FRRLess then 1%
- Sensor Type500 DPI Optical sensor
- Frequency1.0GHz
- Power Supply5 V
- Operating SystemWindows
- Communication TypeUSB Disk
- LanguageMulti Language Support
- ID Card Capacity10,000 (optional)
