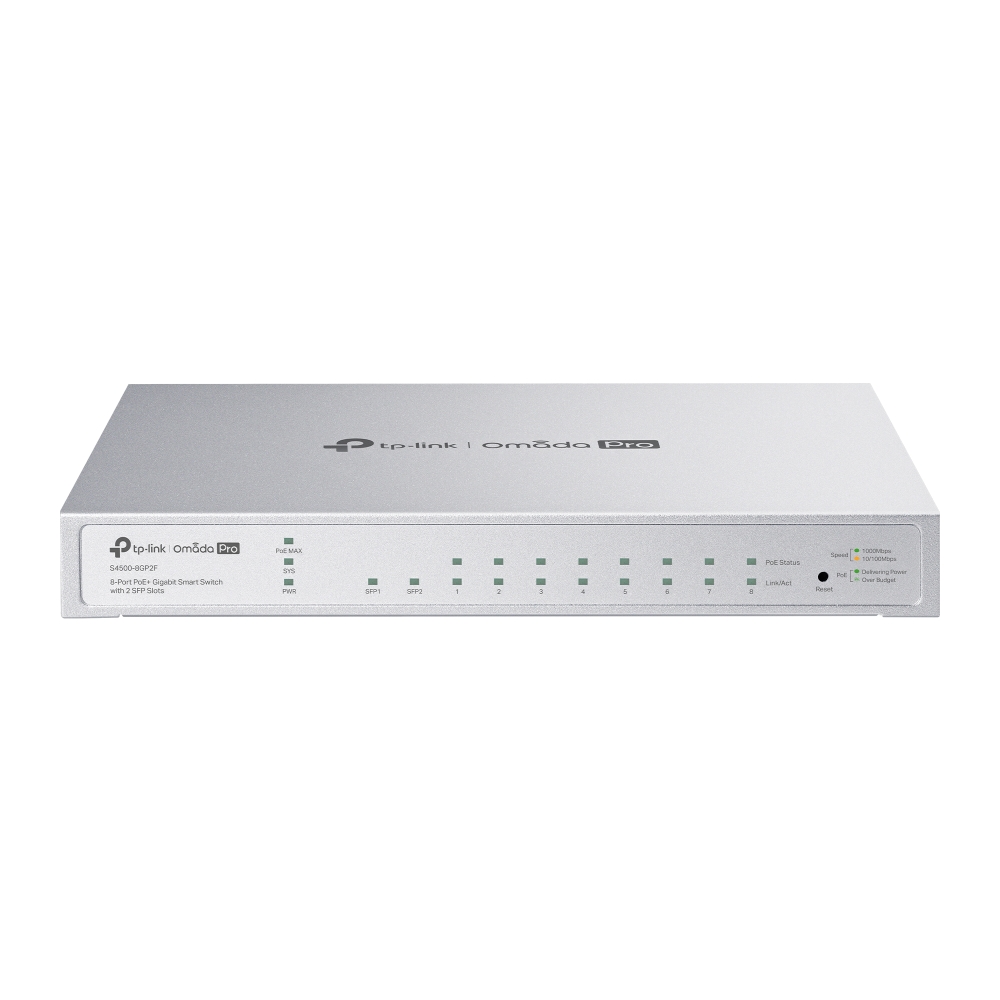

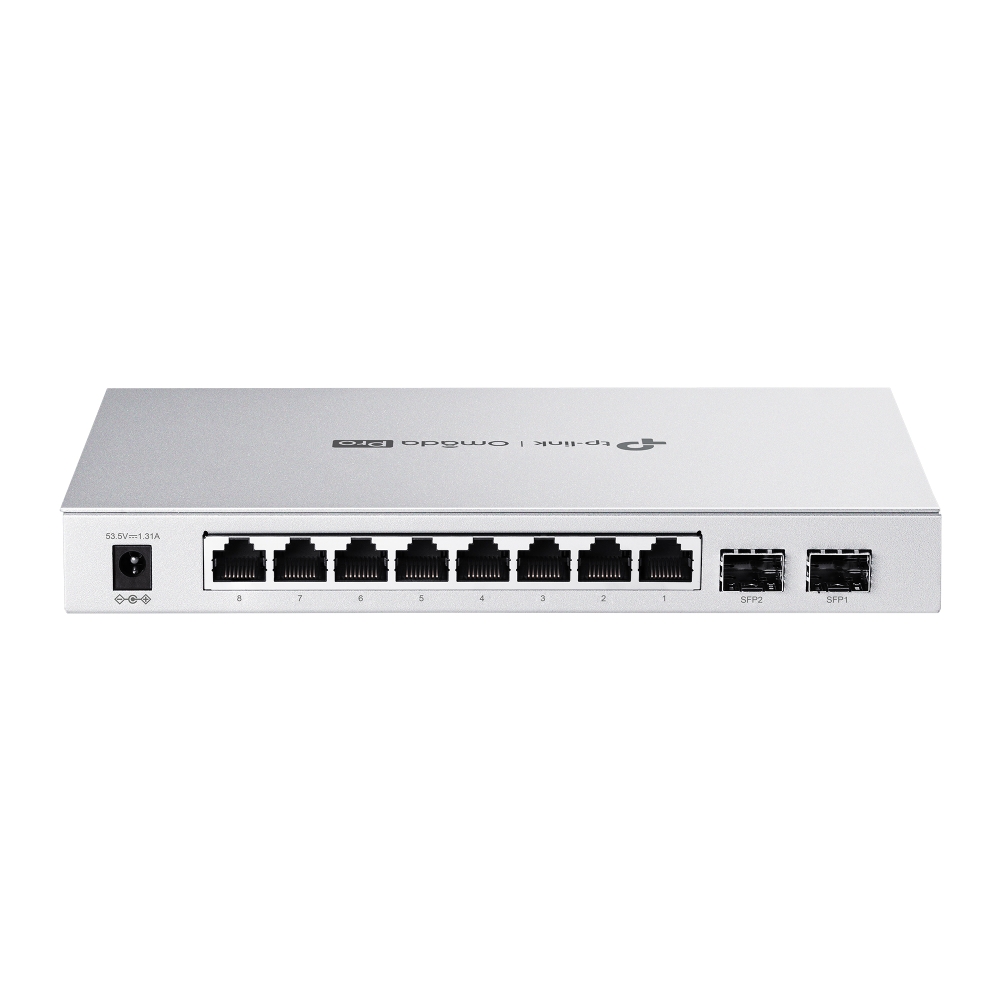

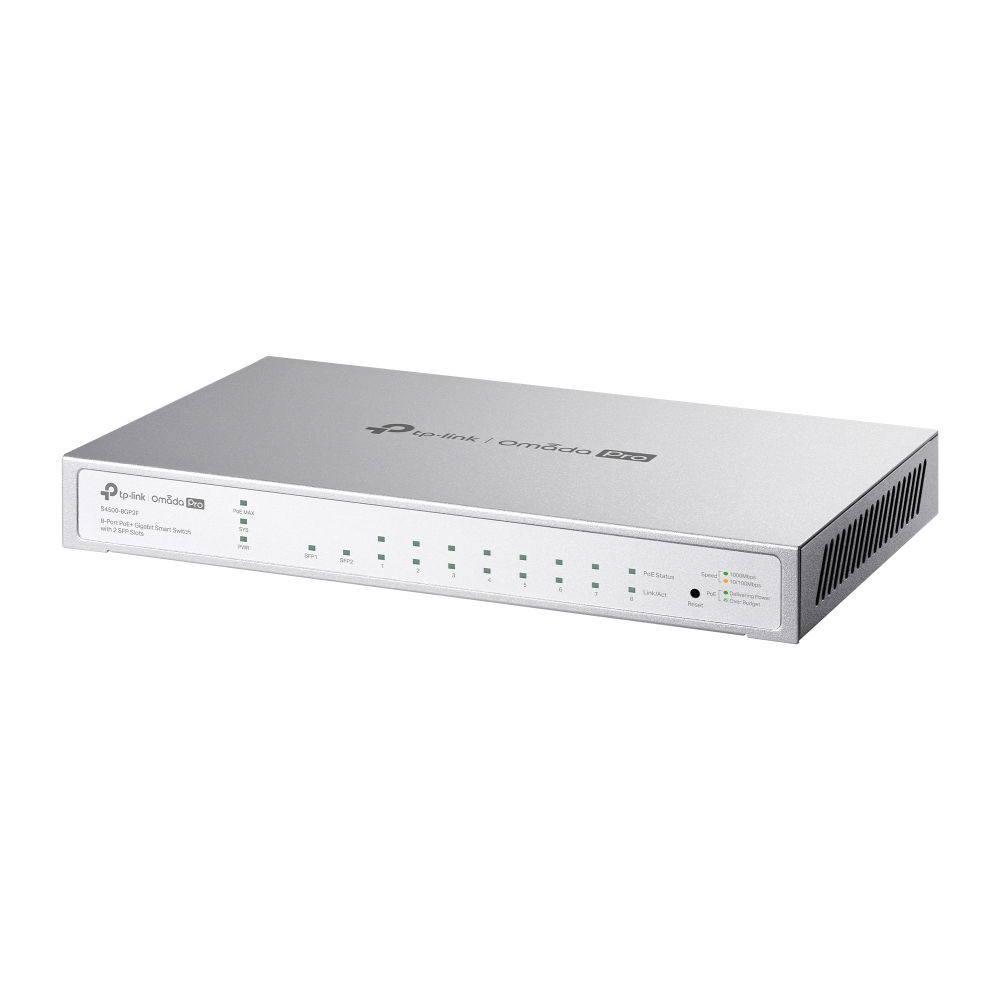

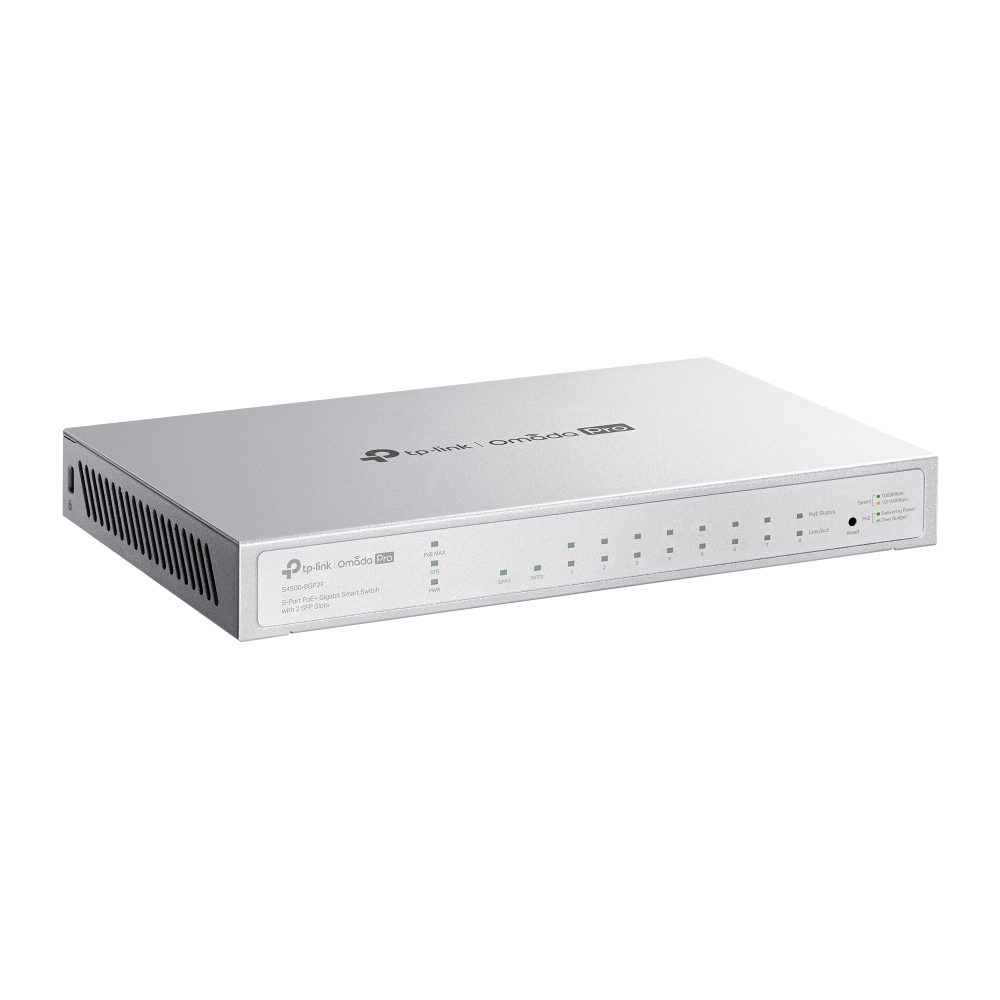

TP-Link Omada Pro 8-Port PoE+ Gigabit Smart Switch 2 SFP Slots-S4500-8GP2F
Key Feature | Description |
|---|---|
PoE Budget | 61W total across 8× PoE+ (802.3at/af) gigabit ports |
High-Speed Connectivity | 8× gigabit PoE+ ports + 2× gigabit SFP slots |
Omada Pro Integration | Centralized cloud management, ZTP, anomaly detection via Omada Pro |
Advanced Management | CLI, Web GUI, SNMP, and Omada Pro Controller support |
Enterprise-Grade Security | ACL, Port Security, IP-MAC Binding, DHCP Snooping, 802.1X, Radius Authentication |
Category | Main Key Points |
|---|---|
Hardware Features | 8× Gigabit RJ45 Ports, 2× SFP Slots, PoE+ (802.3at/af), 61W PoE Budget, Fanless |
Mounting & Size | Desktop/Wall Mountable, 209×126×26 mm |
Power Supply | External Adapter: 53.5 VDC/1.31 A, Max Power: 77.8W |
Performance | 20 Gbps Switching Capacity, 14.88 Mpps Forwarding, 8K MAC Table, 9KB Jumbo Frames |
Protocols Supported | IEEE 802.3/802.1 series (STP, RSTP, MSTP, VLAN, 802.1X, LACP) |
QoS Features | 802.1p/DSCP, 8 Queues, SP/WRR, Storm Control, Port/Flow Bandwidth Control |
L2 & L2+ Features | Static Routing, DHCP Server/Relay, ARP, LACP (8 groups), STP variants, Mirroring |
Advanced Features | Auto Discovery, Anomaly Detection, Network Monitoring, Batch Config/Upgrade |
VLAN Support | 4K VLAN Groups, 802.1Q, MAC VLAN, Voice VLAN, OUI-based VLAN, GVRP |
ACL Support | 230 ACL entries, Time-based, MAC/IP/IPv6 ACL, Actions: Mirror, Redirect, QoS |
Security | 802.1X, Radius, Port Security, DoS Defense, IP-MAC Binding, HTTPS/SSH Access |
IPv6 Support | Dual Stack, IPv6 Routing/ACL, DHCPv6, MLD, ND, IPv6 CLI & GUI Support |
Management | Web GUI, CLI, SNMP v1/v2c/v3, RMON, Omada App/Cloud Controller, ZTP, Dual Image |
General
- TypesManaged
- Switching Capacity20 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports8
- No. Of Power Supplies Supported1
- Rack MountingYes
