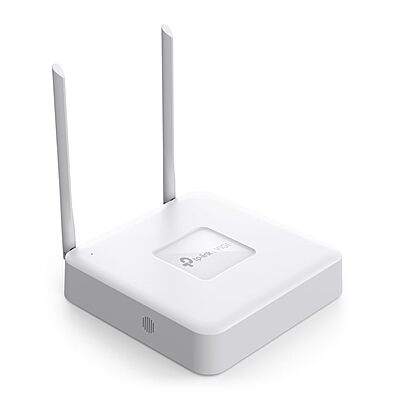

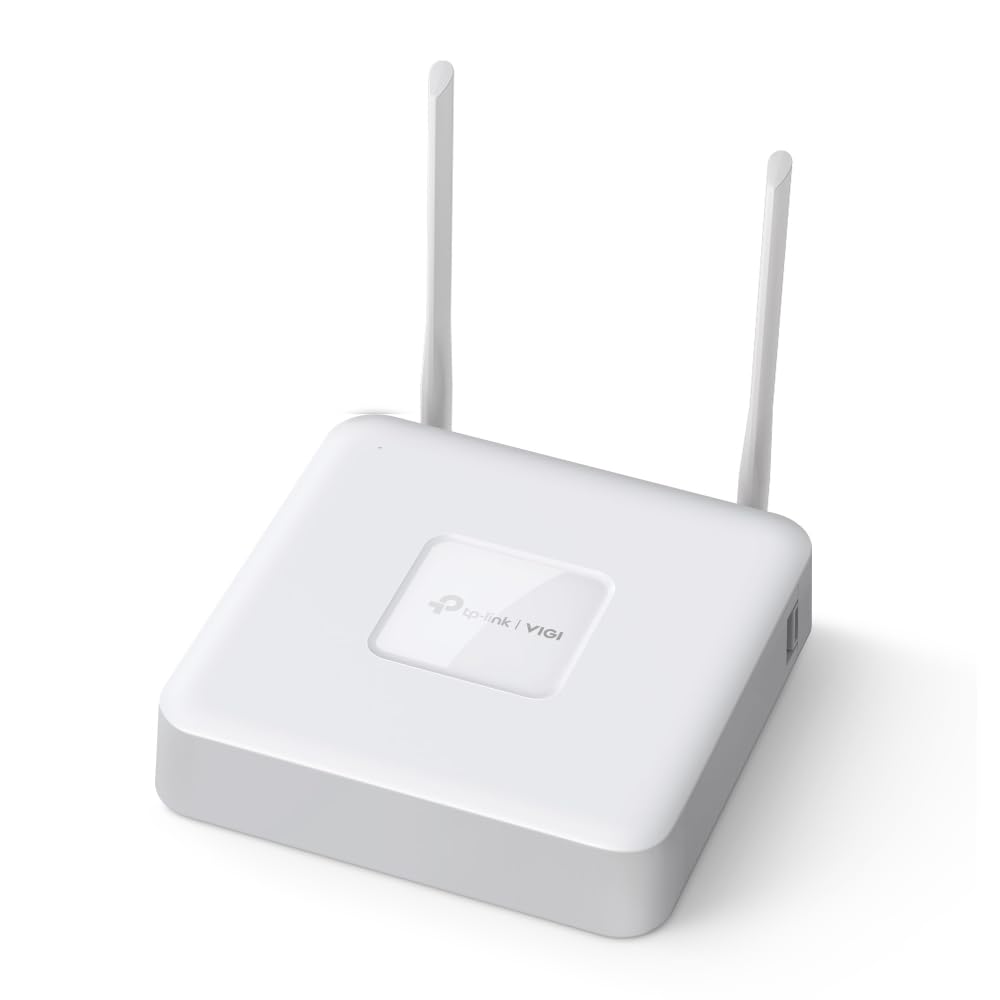

TP-Link VIGI 8 Channel Wi-Fi Network Video Recorder-NVR1108H-W

Video and Audio

IP Video Input

8-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

3840 × 2160/30Hz, 1920 × 1080/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution

1920 × 1080/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4/6/8

Decoding

Audio Compression

G.711A/G.711U/G.726

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Live View/Playback Resolution

8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback

8-Channel†

Capability

25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP / 30fps: 4-ch @ 3MP, 2-ch @ 5MP

Record Management

Record Mode

Manual Recording, Scheduling Recording, Motion Detection Recording

Playback Mode

Instant Playback, Regular Playback, Tag Playback, Event Playback

Backup Mode

Regular Backup, Video Clip Backup

Playback Functions

Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Video Clip, Export Clip, Lock Recording, Audio On/Off

Network

Protocol

UPnP, NTP, SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Mobile Phone Access

Android, iOS

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF Profile S, CGI

Wireless

Standards and Protocols

IEEE 802.11b/g/n

WiFi Channels

UN: 1-13, US: 1-11

Wireless Name

SSID Configuration, Radio

Network Switch

Yes

Frequency

2.4 GHz

Wireless Rate

300Mbps (802.11n), 2 × 2 MIMO

Wireless Security

WPA-PSK/WPA2-PSK

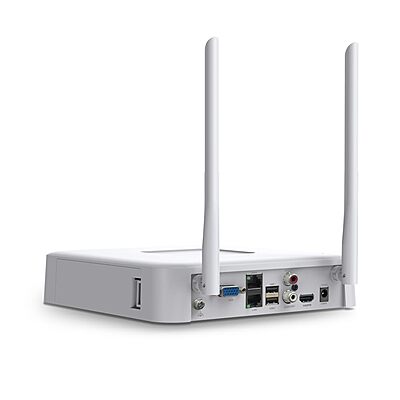

External Interface

Network Interface

1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface

USB Interface

2× USB 2.0

Audio Interface

1-ch RCA Input; 1-ch RCA Output

Power

1× DC Jack

Reset Button

Yes

Speaker

1, Real-time Audio Output without Needing Peripherals

HDMI

1

VGA

1

Hard Disk

SATA

1 SATA Interface

Capacity

Up to 10 TB Capacity for Each HDD

Alarm

General Alarm

Motion Detection, Video Tampering, Scene Change Detection, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame (requires camera)

Anomaly Alarm

Video Loss, Offline and IP Conflict, Disk Exception, Login Exception (requires camera)

Alarm Linkage

Recording, White Light Alarm, Log, Audible Alarm (requires camera)

General

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Package Content

VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Rubber Feet, Quick Installation Guide

Working Temperature

NVR: -10–55 °C, Power Adapter: 0–40 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions (W × D × H)

Excluding Antennas: 200.3 × 200.3 × 43 mm (7.9 × 7.9 × 1.7 in)

External Power Supply

DC 12V/2A

Net Weight

0.5 kg

Gross Weight

1.0 kg

Max. Power Consumption

5.7 W (Without Disk), 16.3 W (With Disk)

Antenna

2, 2.4GHz Welded Non-detachable, Gain: 5.3dBi, Length: 198.8 mm (Long Side), 189 mm (Short Side)

Certifications

BSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCC
